- Page 1 PowerView Automation ® REMOTE CONTROL GUIDE...
- Page 2 Your new PowerView ® Pebble Remote and ® Table of Contents Surface Remote combine fashion with function for Key Components ..precise control of your Getting Started..Hunter Douglas window coverings.
- Page 3 Key Components...

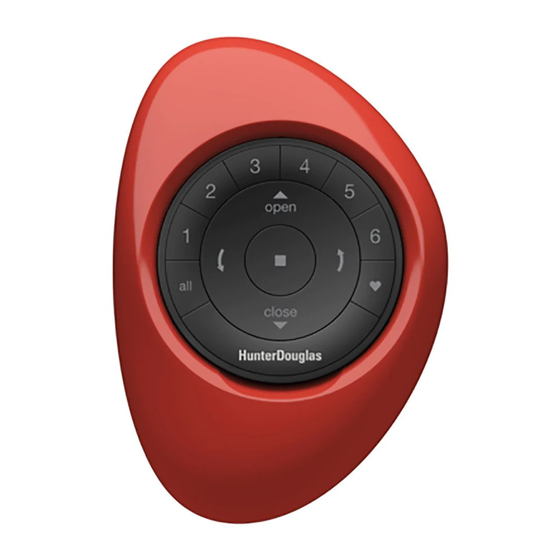

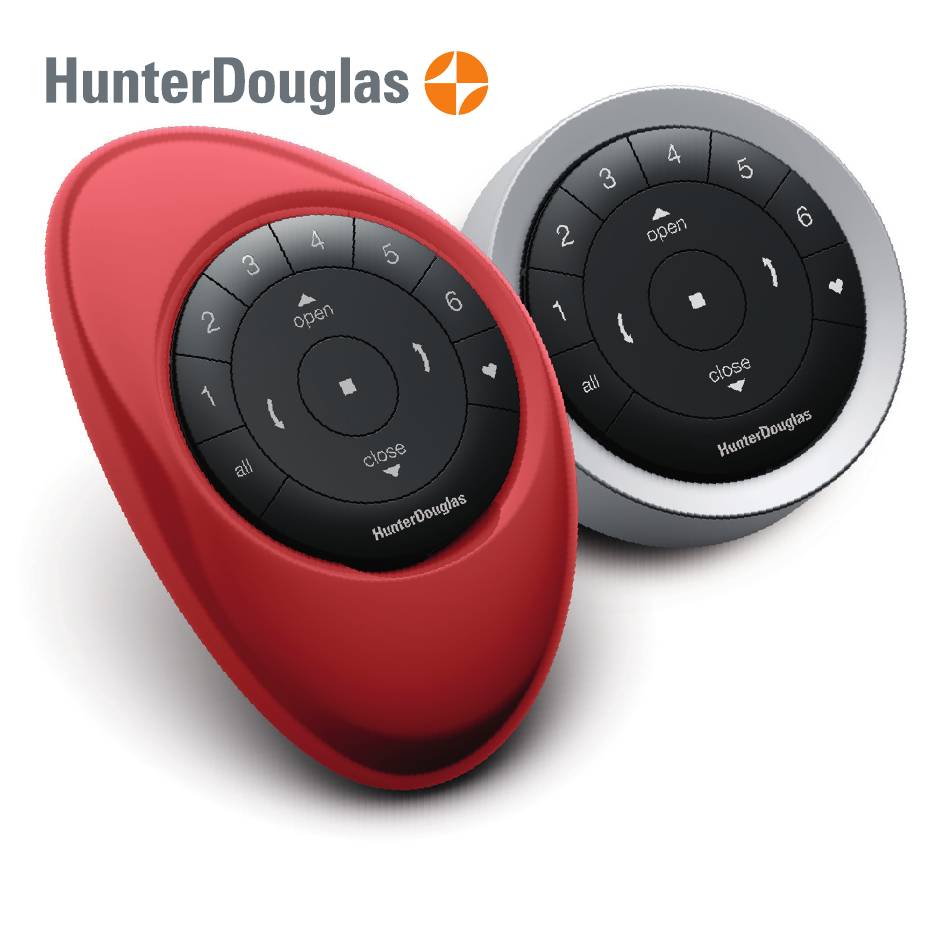

- Page 4 POWERVIEW PEBBLE REMOTE POWERVIEW SURFACE REMOTE ® ® ® Ergonomically designed, the PowerView Pebble The sleek PowerView Surface is wall-mounted so you ® ® ® hand-held remote is available in ten on-trend colors know your remote is always right where you left it. to complement your home décor.
- Page 5 REMOTE MODULE FRONT REMOTE MODULE BACK GROUP 3 GROUP 4 GROUP 2 GROUP 5 OPEN GROUP 1 GROUP 6 STOP Press and hold for programming mode. FAVORITE Shade/louver position LEFT ARROW RIGHT ARROW Function varies Function varies with shade type. with shade type.
- Page 6 REMOTE MODULE (BACK COVER REMOVED) PROGRAMMING BATTERY BATTERY COMPARTMENT COMPARTMENT Getting Started 3V CR 2032 3V CR 2032...

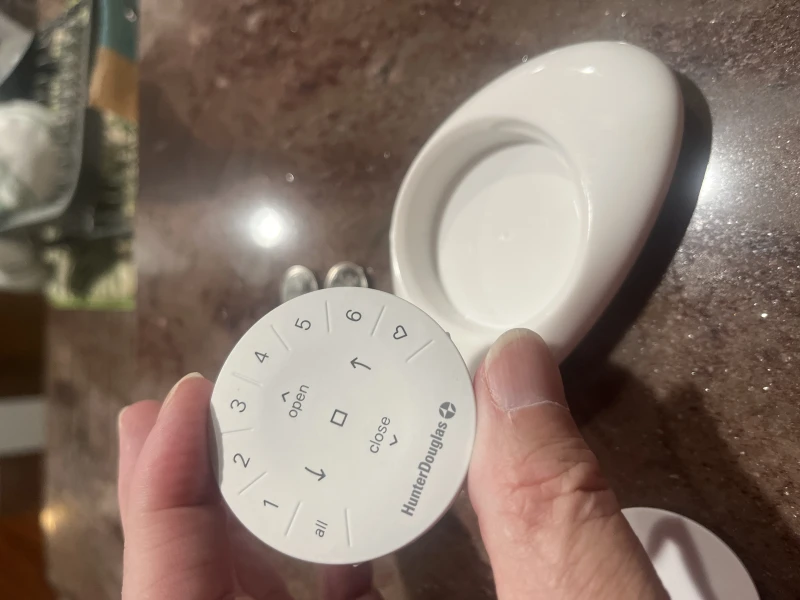

- Page 7 IMPORTANT: The PowerView ® Remote will not operate a Inserting the remote module into the PowerView ® Pebble ® window covering until the window covering has been added (hand-held): to a GROUP . Center the Hunter Douglas logo on the remote module above the indentation on the bottom rim Getting started of the Pebble.
- Page 8 Mounting the PowerView ® Surface: Choose a location to mount the Surface. Orient the Surface mounting plate so that the Hunter Douglas logo is horizontal and level. Mark screw holes. If you are mounting the Surface onto drywall, use a ⁄ "...
- Page 9 Shade Network. All remotes in a home should be paired to the same network. This allows for easy installation of additional Press and hold STOP on the PowerView Pebble control options, such as the PowerView Hub and PowerView Remote, until the indicator lights blink. The remote Repeaters.
- Page 10 Pairing remote(s) to a PowerView Creating a duplicate remote ® created PowerView Shade Network A duplicate remote will operate the same set of window coverings and GROUPS as the original remote. To begin the A Hub previously paired to an existing remote created duplicating process, select a source remote that will transfer PowerView Shade Network or that had created its own...
- Page 11 Deactivating the remote’s auto-wake NOTE: It is recommended that only similar window coverings be included in a GROUP because of differences in product feature features and operation. When a window covering is added to a GROUP for the first time, it is also added to the PowerView ®...
- Page 12 Remove a window covering from Set a FAVORITE position a GROUP Each window covering has one FAVORITE position, which is set at 50% open for shades, or 45 degrees for shutters, by Press and hold STOP on the remote, until the indicator default.
- Page 13 Resetting window covering programming This reset erases Network information stored in the window covering, including GROUP assignments, preventing any input device from operating the window covering. Its primary use is during installation to correct GROUP and Network assignments. This reset does not affect travel limits. Press and hold the programming button for 12 seconds.
- Page 14 Once the window coverings have been joined to a GROUP or For window covering(s) with vanes, louvers or a middle multiple GROUPS, the remote is ready to operate the window rail*, press the RIGHT ARROW to close the window covering(s). Multiple window coverings can be operated at the covering and open the vanes, rotate the vanes to the same time.
- Page 15 Batter y Replacement...
- Page 16 Replacing batteries in the remote Rotate the back cover of the remote module clockwise to unlock. Replacing the batteries in the remote module will not cause the Remove the back cover from the remote module. loss of any window covering programming, including GROUPS and FAVORITE.
- Page 17 Using a finger or small Align and replace the back cover onto the screwdriver, gently lift backside of the remote module. and remove the Rotate the back cover counter-clockwise old batteries. to lock the back cover in place. NOTE: Once the back cover is in place, ensure the programming access point is aligned with the recessed P button.
- Page 18 Troubleshooting...
- Page 19 • All PowerView remotes within a home need to be included covering will then run an auto-calibration sequence. in the same PowerView Shade Network. Refer to “Pairing NOTE: Please call 1-844-PWR-VIEW or visit additional remote(s) to the PowerView Shade Network” www.hunterdouglas.com for additional troubleshooting on page 14. support.
- Page 20 PowerView Remote Control conforms with the essential requirements of the EMC directive ® 2004/108/EC and R&TTE directive 1999/5/EC. A copy of the original declaration of conformity may be found at www.hunterdouglas.com/RFcertifications.
- Page 21 © 2020 Hunter Douglas. All rights reserved. All trademarks used herein are the property of Hunter Douglas or their respective owners. 6/20 5110540128...
