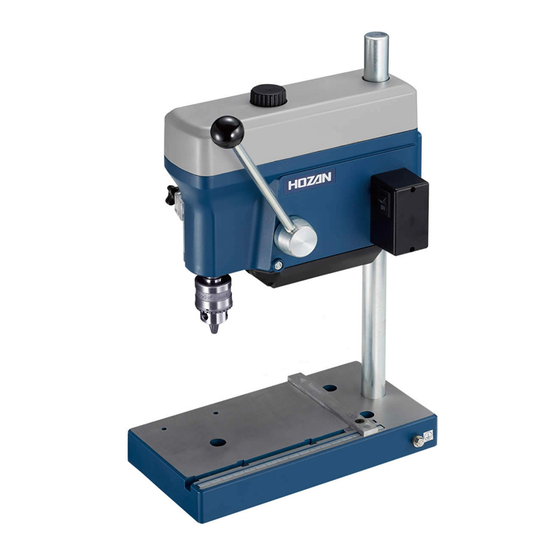

K-21
Thank you for purchasing the HOZAN K-21 DESK DRILL PRESS. With proper care and
handling, this fine instrument will provide years of trouble-free operation. Please read this
entire instruction manual carefully before attempting to place this instrument in service.
Please keep this instruction manual available for reference.
Identification of parts and contents
Belt cover
Grip bolt
Vertical lift
handle
Obey the
rated time.
Refer to 1.
of Cau-
tion on
page 2.
Drill chuck
XY table set
screw hole
Recess hole
Drills are not provided. Attach an appropriate drill selected referring to Options on page 8.
Specifications
Main shaft
2100/4500/6200rpm
revolution speed
(by changing over the belt)
0.8-6.0mm
DESK DRILL PRESS
Power switch
Post
Vertical adjust-
ment T-screw
Main unit set screw hole
Slide-guide
Base
φ
INSTRUCTION MANUAL
Power plug
Power cord
Grounding terminal
Depth adjustment
mechanism
Rating
100Vac 50/60Hz
80W
15minutes
Dimensions
120
weight
4kg
１ １ １ １
Accessories
Chuck wrench
2.5mm
Hex key
Ground wire
(2.5m green)
350
Advertisement
Table of Contents
Related Manuals for HOZAN K-21
Summary of Contents for HOZAN K-21
- Page 1 K-21 DESK DRILL PRESS Thank you for purchasing the HOZAN K-21 DESK DRILL PRESS. With proper care and handling, this fine instrument will provide years of trouble-free operation. Please read this entire instruction manual carefully before attempting to place this instrument in service.
- Page 2 6. The base is die-cast, so if you hit or drop solid objects on the base, it may cause cracks and dents. 7. The K-21 is not waterproof, so do not use water or a wet cloth to clean or wipe the drill.
- Page 3 Caution 8. Store the K-21 in an appropriate place. Do not leave the K-21 for a long time in a place where it is exposed to shock or vibration, in the direct rays of the sun or in a high temperature and/or humidity environment.
- Page 4 Preparation Caution Always be sure to ground before connecting the power supply. Never ground to a gas pipe, as there is the danger of a fire or an explosion. Always be sure that the ON/OFF switch is turned off before plugging into the power cord.
- Page 5 Clean the scraps and dust from the base. Frequently check to ensure there are no loose parts and no malfunctions of the desk drill. If a problem is found, ask your nearest HOZAN dealer to carry out any necessary repairs.
- Page 6 Operation Adjusting the operation speed Grip bolt The operating speed of the drill can be adjusted to one of three speed ranges. Select the appropriate speed for the size of drill bit to Belt cover be used. At the time of shipment from the factory, the drill is set to the low speed setting(2100 rpm).
- Page 7 Using the chuck wrench, make the chuck quite open. While locking the main shaft using the hex key (provided with the K-21) and such, turn the Locking main shaft entire chuck counterclockwise (looking from bottom) holding with a palm securely to remove...
- Page 8 K-24 usage example Suitable for precious drilling against Supports the object. PCBs and such. Mountable on the K-21 parallel guide. Holes at regular intervals can be gotten. K-5 Drill bit set (7 pieces) 0.8/1.0/1.5/2.0/2.5/3.0/3.2mmЂ K-493 Drill bit set (13 pieces) 1.5/2.0/2.5/3.0/3.2/3.5/4.0/4.5/4.8/5.0/5.5/6.0/6.5mmЂ...
