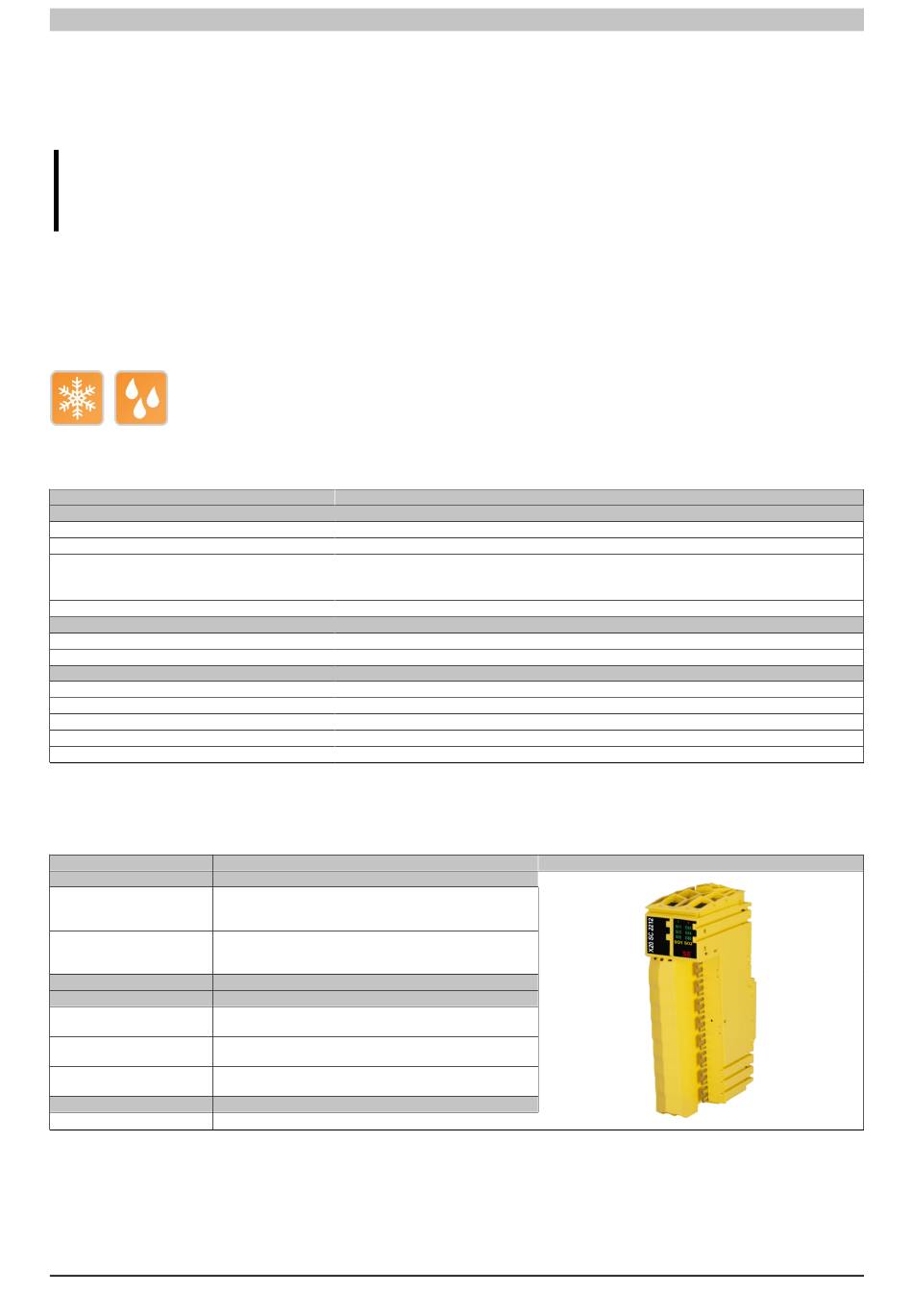

1.2 Coated modules
Coated modules are X20 modules with a protective coating for the electronics component. This coating protects
X20c modules from condensation.
The modules' electronics are fully compatible with the corresponding X20 modules.
Information:
For simplification purposes, only images and module IDs of uncoated modules are used in this data
sheet.
The coating has been certified according to the following standards:
• Condensation: BMW GS 95011-4, 2x 1 cycle
• Corrosive gas: EN 60068-2-60, Method 4, exposure 21 days
Contrary to the specifications for X20 system modules without safety certification and despite the tests performed,
X20 safety modules are NOT suited for applications with corrosive gases (EN 60068-2-60)!
2 Overview
Module
Safe digital inputs
Number of inputs
Nominal voltage
Input filter
Hardware
Software
Input circuit
Pulse outputs
Design
Switching voltage
Safe digital outputs
Number of outputs
Nominal voltage
Nominal output current
Total nominal current
Output protection

3 Order data

Model number Short description
Digital mixed modules
X20SC2212 X20 safe digital mixed module, 6 safe digital inputs, configurable
input filter, 6 pulse outputs, 24 VDC, 2 safe type B1 digital out-
puts, 24 VDC, 0.5 A, OSSD <500 µs
X20cSC2212 X20 safe digital mixed module, coated, 6 safe digital inputs, con-
figurable input filter, 6 pulse outputs, 24 VDC, 2 safe type B1
digital outputs, 24 VDC, 0.5 A, OSSD <500 µs
Required accessories
Bus modules
X20BM33 X20 bus module, for X20 SafeIO modules, internal I/O power
supply continuous
X20BM36 X20 bus module, for X20 SafeIO modules, with node number
switch, internal I/O power supply continuous
X20cBM33 X20 bus module, coated, for X20 SafeIO modules, internal I/O
power supply continuous
Terminal blocks
X20TB5F X20 terminal block, 16-pin, safety-keyed
Data sheet V1.141 X20(c)SC2212 Translation of the original documentation
Thermal short circuit shutdown, integrated protection for switching inductive loads
Table 3: Digital mixed modules
Table 4: X20SC2212, X20cSC2212 - Order data
X20SC2212
6
24 VDC
≤150 µs
Configurable between 0 and 500 ms
Sink
Push-Pull
I/O power supply minus residual voltage
2
24 VDC
0.5 A
1 A
X20(c)SC2212
