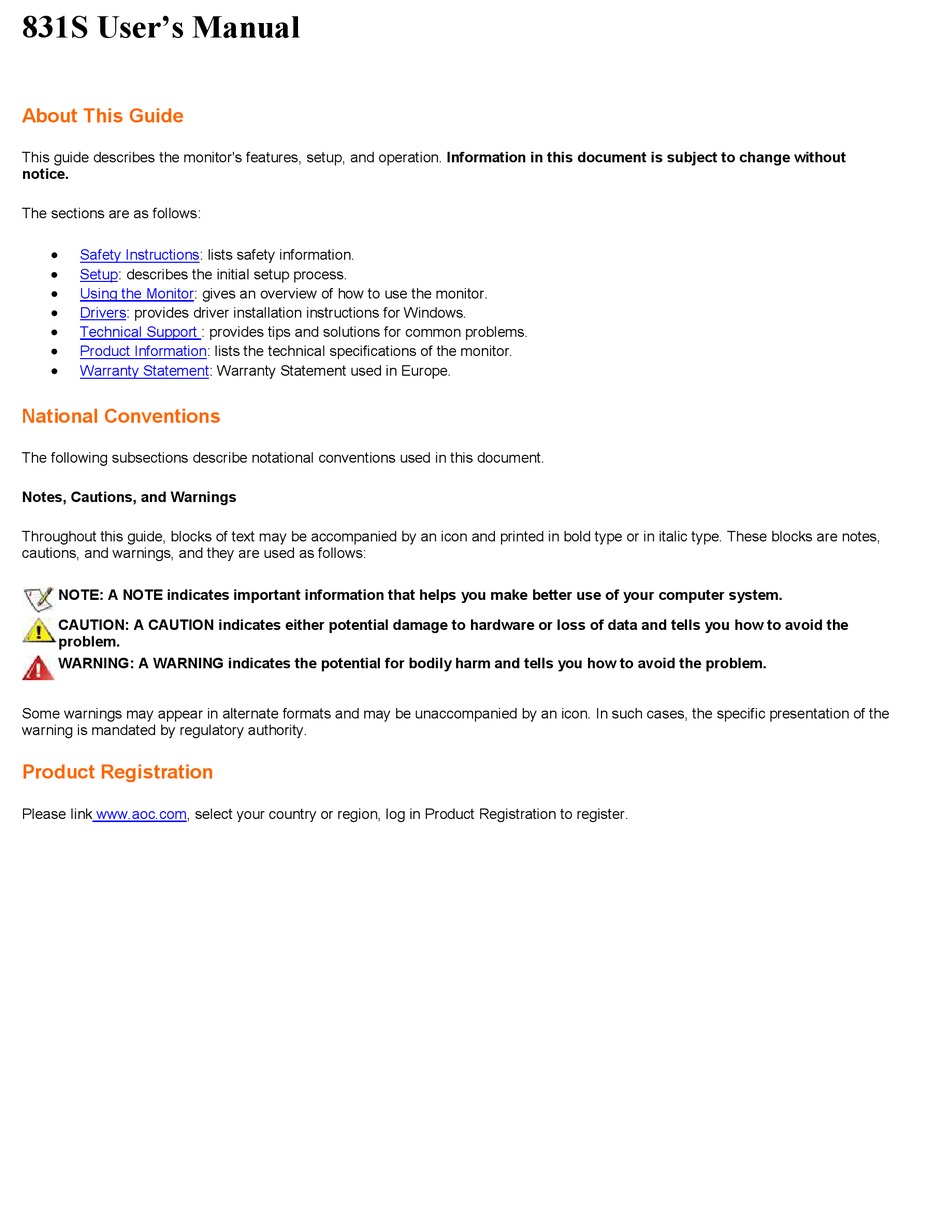

831S User's Manual
About This Guide
This guide describes the monitor's features, setup, and operation. lnformation in this document is subject to change without
notice.
The sections are as follows:
Safety
Instructions: lists safety information.
Setup: describes the initial setup process.
Using the
Monitor: gives an overview of how to use the monitor.
Drivers: provides driver installation instructions for Windows.
Technical Support
Product
Information: lists the technical specifications of the monitor.
Warranty
Statement: Warranty Statement used in Europe.
National Conventions
The following subsections describe notational conventions used in this document.
Notes, Cautions, and Warnings
Throughout this guide, blocks of text may be accompanied by an icon and printed in bold type or in italic type. These blocks are notes,
cautions, and warnings, and they are used as follows:
NOTE: A NOTE indicates important information that helps you make better use of your computer system.
CAUTION: A CAUTION indicates either potential damage to hardware or loss of data and tells you how to avoid the
problem.
WARNING: A WARNING indicates the potential for bodily harm and tells you how to avoid the problem.
Some warnings may appear in alternate formats and may be unaccompanied by an icon. In such cases, the specific presentation of the
warning is mandated by regulatory authority.
Product Registration
Please link www.aoc.com, select your country or region, log in Product Registration to register.
: provides tips and solutions for common problems.
Advertisement
Table of Contents
Related Manuals for AOC 831S
Summary of Contents for AOC 831S
-
Page 1: About This Guide
Some warnings may appear in alternate formats and may be unaccompanied by an icon. In such cases, the specific presentation of the warning is mandated by regulatory authority. Product Registration Please link www.aoc.com, select your country or region, log in Product Registration to register. -
Page 2: Fcc Notice
FCC Notice FCC Class B Radio Frequency Interference Statement WARNING: (FOR FCC CERTIFIED MODELS) NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. - Page 3 Precautions WARNING: Use of controls, adjustments, or procedures other than those specified in this documentation may result in exposure to shock, electrical hazards, and/or mechanical hazards. Read and follow these precautions when connecting and using your computer monitor: PRECAUTIONS Do not use the monitor near water, e.g.
-
Page 4: Setup The Stand And Base
Setup the stand and base Please setup or remove the base following below steps. Adjusting Viewing Angle For optimal viewing it is recommended to look at the full face of the monitor, then adjust the monitor's angle to your own preference. -
Page 5: Attaching The Cables
Attaching the Cables Cable Connections On Back of Monitor and Computer Turn off your computer before performing the procedure below. Connect the power cable to the AC port on the back of the monitor. Connect one end of the 15-pin D-Sub cable to the back of the monitor and connect the other end to the computer's D-Sub port. -
Page 6: Setting The Optimal Resolution
Setting the Optimal Resolution The recommended resolution for this monitor is 1366 by 768. To setup the monitor to this resolution, follow the steps below. Click START. Click SETTINGS. Click CONTROL PANEL. Double click DISPLAY. Click SETTINGS. Set the resolution SLIDE-BAR to 1366 by 768. External Controls Press the power button to turn the monitor on or off. -
Page 7: Dcb Adjustment
Auto configure hot key: When the OSD is closed, press Auto button will be auto configure hot key function . DCB Adjustment What is DCB? Dynamic Color Boost (DCB) is an advanced color adjustment technology. Through analyzing RGB signals, DCB creates more vivid and natural images to suit various color environment needs. - Page 8 Full Enhance: When "Full Enhance" is turned on, the color saturation of the entire screen is fully enriched, thus all colors become more vibrant. Nature Skin: When "Natural Skin" is turned on, the red and yellow colors are enriched automatically, thus presents human skin with more natural and truer colors.
- Page 9 Sky Blue: When"Sky Blue" is turned on, the color blue is being fine-tuned so that the sky or ocean landscape will look more vivid and in-depth. "Sky Blue" setting is ideal for viewing sky and ocean images. Auto Detect: When “Auto Detect” is turned on, every pigment will be detected and self-adjusted to render a lively picture. Demo: Screen divided into two for demonstration purposes.
- Page 10 adjusted. "Picture Boost" is located in the fifth icon labeled "Picture Boost" in the OSD menu. Turn on "Bright Frame" to select a zone on the screen to be enhanced. Please note when adjust or turn on any one of the DCB features, the rest of color settings including DCR will be disabled or return to default.
- Page 11 will be disabled. DCR Demos: Disclaimer: DCR aftereffects are subject to the resolution and quality of the display content, hence may look different than the above illustrations. Function Control Illustration Luminance Brightness Contrast Eco mode Adjust Range 0-100 0-100 Standard Text Internet Description...
- Page 12 Game Movie Sports Gamma1 Gamma Gamma2 Gamma3 Image Setup Clock 0-100 Phase 0-100 H.Position 0-100 V.Position 0-100 Color Temp. Warm 6500K Normal 7300K Cool 9300K sRGB User Green Blue Color Boost Full Enhance on or off Nature Skin on or off Green Field on or off Sky-blue...
-
Page 13: Led Indicators
OSD Setup H.Position V.Position Timeout Transparence Language Extra Input Select Auto Config Image Ratio DDC-CI Information Reset Reset Exit Exit Notes: 1)If the product has only one signal input, the item of "Input Select" is disable to adjust. 2)If the product screen size is 4:3 or input signal resolution is wide format, the item of "Image Ratio" is disalbe to adjust. 3)One of DCR, Color Boost, and Picture Boost functions is active, the other two function is turned off accordingly. - Page 14 How to use i-Menu software Installation Welcome to use “i-Menu” software by AOC. i-Menu makes it easy to adjust your monitor display setting by menus on the screen instead of OSD button on the monitor. Please click Using “i-Menu” 1. Luminance...
- Page 15 Gamma Reset Remarks: 1) If DCR is set to “on”, the other 4 items of Luminance cannot be adjusted. 2) If anyone of DCR, Color Boost and Bright Frame of Picture Boost is set to “on”, the others are set to “off” automatically. 3) The Brightness and Contrast can be adjusted only when Eco-mode is on “standard mode”.
- Page 16 3. Color Temperature Color Temp. Adjust Range Warm Normal Preset Cool sRGB User Green Blue Reset Remarks: 1) When “User” is chosen, you can change the monitor color to your desired color by setting the value of R-G-B. 2) When “sRGB” is chosen, the Brightness, Contrast and Gamma can not be adjusted. Description Recall Warm Color Temperature from EEPROM.
- Page 17 4. Color Boost Color Boost Full Enhance Nature Skin Green Field Sky-blue AutoDetect Demo Reset Remarks: 1) There is only one item can be set to “on” except Demo. If you set any item to “on”, the others are changed to “off” automatically. 2) If anyone of DCR, Color Boost and Bright Frame of Picture Boost is set to “on”, the others are set to “off”...
- Page 18 5. Picture Boost Picture Boost Bright Frame Frame Size Brightness Contrast H. position V.position Reset Remarks: 1) Only when Bright Frame is set to “on”, the other 5 items can be adjusted. 2) If anyone of DCR, Color Boost and Bright Frame of Picture Boost is set to “on”, the others are set to “off” automatically. Adjust Range on or off 14-100...
- Page 19 6. Setting 7. Extra...
- Page 20 8. Help On this page, you can find the information of the monitor . Welcome to link our website and send email to us if you have any problem. Compatibility : i-Menu supports major graphic cards of ATI, Nvidia, Intel, VIA(S3). Please contact with us if your graphic card was not supported i- Menu software.
-
Page 21: Specifications
Non-Operating EPA ENERGY STAR ® ENERGY STAR® is a U.S. registered mark. As an ENERGY STAR® Partner, AOC International (Europe) GmbH and Envision Peripherals, Inc. have determined that this product meets the ENERGY STAR® guidelines for energy efficiency. 831S+ TFT Color LCD 0.3mm(H) x 0.3mm(V) -
Page 22: Pin Assignments
Preset Display Modes STAND RESOLUTION 640 x 480 @60Hz 640 x 480 @67Hz 640 x 480 @72Hz 640 x 480 @75Hz Dos-mode 6400 x 400 @70Hz Dos-mode 720 x 400 @70Hz SVGA 800 x 600 @56Hz SVGA 800 x 600 @60Hz SVGA 800 x 600 @72Hz SVGA...
