Summary of Contents for AOC 19LVWK
-
Page 2: Operation Instructions
Operation Instructions Thank you for purchasing this monitor, a high-resolution multi-scan color monitor. Please read this guide thoroughly before installation. FCC RADIO FREQUENCY INTERFERENCE STATEMENT WARNING: (FOR FCC CERTIFIED MODELS) This monitor has been tested and found compliant with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. -
Page 3: Table Of Contents
Content Safety Precautions...1 First Setup ...2 Quick Installation...2 Front View of the Product ...4 Rear View of the Product ...4 Using On Screen Display (OSD) Functions ...5 Supporting Timing Modes ...8 Technical Information...9 Care and Maintenance...10 Troubleshooting ...10... -
Page 4: Safety Precautions
Safety Precautions This monitor is manufactured and tested on a ground principle that a user’s safety comes first. However, improper use or installation may result danger to the monitor as well as to the user. Carefully go over the following WARNINGS before installation and keep this guide handy. -
Page 5: First Setup
First Setup Congratulation for purchasing this monitor of high performance! This monitor comes with the following accessories : Power cable. D-Sub cable (15 pin). DVI cable (24 pin). Audio cable. User guide. Quick Installation 1. Install / Remove the base Install 2. - Page 6 Connect power cord Connect the power cord to a properly grounded AC outlet, then to the monitor. 6. Power-ON computer and monitor Power-ON the computer, then Power-ON the monitor. 7. Windows users: Setting the Timing Mode (Resolution and Refresh Rate) Example: 1440 x 900 @ 60 Hz Resolution Right-click on the Windows desktop >...
-
Page 7: Front View Of The Product

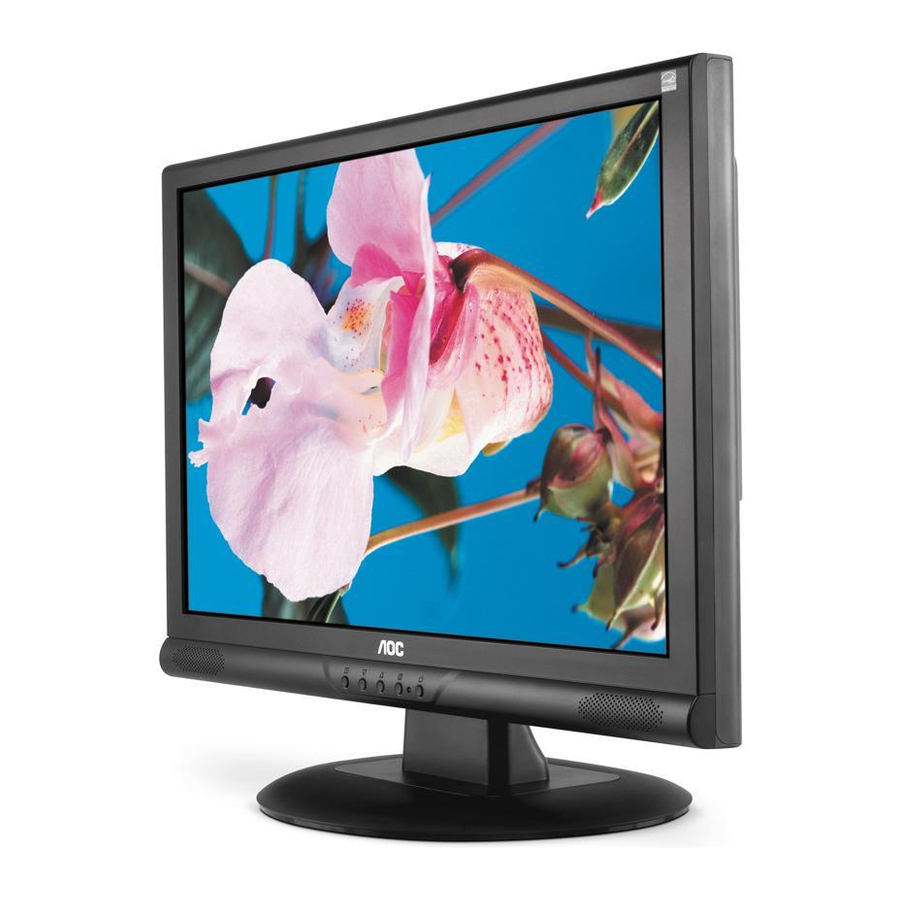

Front View of the Product ➊ OSD TURN ON/OFF ➋ SCROLL DOWN/DECREASE ➌ SCROLL UP/INCREASE Rear View of the Product ➐ ➐ POWER INPUT ➑ AUDIO INPUT ➊ ➋ ➌ ➍ ➎ ➏ ➍ CONFIRM SELECTION ➎ POWER ON/OFF ➏ LED INDICATOR ➑... -
Page 8: Using On Screen Display (Osd) Functions
Using On Screen Display (OSD) Functions Display main menu. Exit from OSD menu. Auto adjust the image when not in main menu. Confirm the selection. Select the desired item when in OSD menu. When not in OSD menu, it is to immediately activate Contrast/ Brightness. - Page 9 Short Cuts Function from the button(s) Auto Adjust : To auto adjust Horizontal Position, Vertical Position, Phase (Fine Tune) and Clock (H. Size) of the screen. Contrast : To adjust the foreground white level of screen image. : increase contrast, Brightness : To adjust the luminance of the video.
- Page 10 Sharpness : To adjust the clarity of a non-SXGA (1280x1024) signal with button. Setup Menu : To set up Language Select, Resolution Notice, OSD Position, OSD Time Out, and Input Select (Analog). Language Select : To allow users to choose from available languages. Resolution Notice : Resolution Notice is to remind you set the best quality for the image.
-
Page 11: Supporting Timing Modes
Supporting Timing Modes VESA VESA VESA VESA VESA VESA VESA VESA VESA VESA VESA VESA VESA VESA VESA VESA VESA VESA VESA Warning : Do not set the graphic card in your computer to exceed these maximum refresh rates. Doing so may result in permanent damage to your monitor. 720 x 400 @ 70Hz 640 x 480 @ 60Hz 640 x 480 @ 67Hz... -
Page 12: Technical Information
Technical Information Technical Specification LCD Panel Power Management Displayable Resolution Pixel Dimension LCD Display Color Tilt Active Display Area Temperature Compliance Power Speaker 19.05” TFT Energy Star compliant VESA DPMS compatible < 2 W WXGA 1440 x 900 max. Vertical Frequency 75Hz max. 0.285 x 0.285 mm 16.2M 0°~20°... -
Page 13: Care And Maintenance
Care and Maintenance Care Avoid exposing your monitor directly to sunlight or other heat source. Place your monitor away from the sun to reduce glare. Put your monitor in a well ventilated area. Do not place any heavy things on top of your monitor. Make certain your monitor is installed in a clean and moisture-free area. - Page 14 Wrong or abnormal colors If any colors (red, green, blue) are missing, check the video cable to make sure it is securely connected. Loose or broken pins in the cable connector could cause an improper connection. Connect the monitor to another computer.
