RouterBOARD 200 Series
User's Manual
Rev. Q (22-Nov-2005)

Copyright

Copyright © 2003-2005 MikroTikls SIA. This manual contains information protected by copyright law. No
part of it may be reproduced or transmitted in any form without prior written permission from the
copyright holder.

Trademarks

RouterBOARD, RouterOS, RouterBIOS and MikroTik are trademarks of MikroTikls SIA. All trademarks and
registered trademarks appearing in this manual are the property of their respective holders.

Limited Warranty

Hardware. MikroTikls SIA warrants all RouterBOARD 200 series equipment for the term of one year from
the shipping date to be free of defects in materials and workmanship under normal use and service. All
parts will be repaired or replaced with similar or functionally equivalent parts by MikroTikls SIA during the
warranty term, except in case the returned parts have mechanical, electrical or other accidental or
intended damages caused by improper use or due to wind, rain, fire or other acts of nature.
Parts (or systems) must be shipped pre-paid to our facility in Riga, Latvia. All items must have a Return
Material Authorization (RMA) which you can get by contacting us via email, telephone or fax. RMA must
be printed, signed, and enclosed with the shipment, also the RMA number must be written on the
package itself. Parts sent without following the proper procedure will be treated as those not to be
repaired or replaced due to the above mentioned conditions. Items proved to be free of defects in our lab
will be returned to the customer at the customer's expense. Those that do meet the warranty repair
requirements will be repaired or replaced, and returned to the customer's location at our expense,
extending the warranty term for the time the items are being shipped to and from our facility and
replaced or repaired.
Manual. This manual is provided "as is" without a warranty of any kind, expressed or implied, including,
but not limited to, the implied warranty of merchantability and fitness for a particular purpose. The
manufacturer has made every effort to ensure the accuracy of the contents of this manual, however, it is
possible that it may contain technical inaccuracies, typographical or other errors. No liability is assumed
for any inaccuracy found in this publication, nor for direct or indirect, incidental, consequential or other
damages that may result from such an inaccuracy, including, but not limited to, loss of data or profits.

Caution

To avoid damage of the system, use the correct DC input voltage range.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RouterBOARD 200 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for MikroTik RouterBOARD 200 Series

  • Page 1: Copyright

    Limited Warranty Hardware. MikroTikls SIA warrants all RouterBOARD 200 series equipment for the term of one year from the shipping date to be free of defects in materials and workmanship under normal use and service. All...
  • Page 2: Table Of Contents

    RouterBOARD 200 Series User's Manual Table of Contents Copyright..........................1 Trademarks........................1 Limited Warranty........................1 Caution..........................1 System Board View........................3 System Board Layout........................5 Block Diagram..........................6 Specifications..........................7 Hardware Guide..........................8 Memory and Storage Devices....................8 SoDIMM Memory.......................8 CompactFlash Interface....................8 44 pin 2.5'' ATA Interface....................8 Extension Slots........................8 PCI Slot (RouterBOARD 230 only)................8...

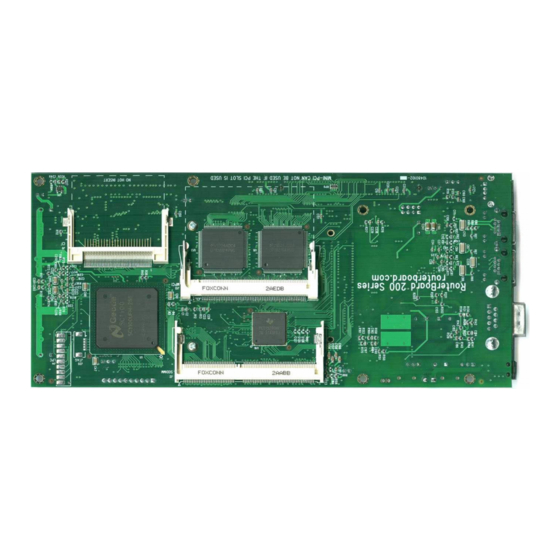

  • Page 3: System Board View

    RouterBOARD 200 Series User's Manual System Board View RouterBOARD 230 top view RouterBOARD 230 bottom view...
  • Page 4 RouterBOARD 200 Series User's Manual RouterBOARD 220 top view RouterBOARD 220 bottom view...
  • Page 5: System Board Layout

    RouterBOARD 200 Series User's Manual System Board Layout Top view Bottom view...
  • Page 6: Block Diagram

    RouterBOARD 200 Series User's Manual Block Diagram 20-56V power jack Power 48V Power over Ethernet 20-56V power header Supply MiniUPS Daughterboard 100BaseTX port Ethernet w. PoE Controller Memory SoDIMM slot Controller Ethernet 100BaseTX port Controller IDE/CF connector Controller PCMCIA/CardBUS slot...
  • Page 7: Specifications

    RouterBOARD 200 Series User's Manual Specifications RouterBOARD 220 RouterBOARD 230 233MHz or 266MHz NSC SC1100 CPU (Intel Pentium MMX architecture) SoDIMM (up to 512MBytes SDRAM; only accepts standard SoDIMM size; some Memory slot PC66 modules will not work) BIOS 2Mbit Flash BIOS...
  • Page 8: Hardware Guide

    There are some SoDIMM modules that violate the maximal hight dimension defined by the SoDIMM standard. For example, some 512MB SDRAM modules are about two times higher than the standard allows. These modules can not be used in the RouterBOARD 200 series computers. CompactFlash Interface You can use any CompactFlash Type I or II cards, as well as IBM/Hitachi Microdrive hard drives.
  • Page 9: Input/Output Ports

    Sample code is given in the RouterBOARD 200 SDK. LCD Out Header LCD output header is used to connect parallel LCD devices. Supports LCDs sold by MikroTik. Sample code is given in the RouterBOARD 200 SDK. LPC Connector Low Pin Count (LPC) interface is based on Intel Low Pin Count Interface specification, revision 1.0.
  • Page 10: Leds

    ● IEEE802.3af Power over Ethernet (PoE): 48V DC RouterBOARD 200 series boards are equipped with a reliable 15W power supply that accepts a wide range of input voltage. The board has a power jack (5.5mm outside and 2mm inside diameter, female, pin positive plug) and a power header for input voltage of 20V to 56V DC.
  • Page 11: Power Consumption

    Microdrive hard drive or ATA drive, that is recognized as ATA Master device. EtherBoot Protocol EtherBoot protocol allows you to boot the RouterBOARD 200 series computer from an image stored on a TFTP server. EtherBoot is a protocol very similar to the well-known PXE. It uses BOOTP (DHCP) protocol to get a valid IP address, and TFTP protocol to download an executable (ELF) image to boot from (the server's IP address and the image name must be sent by the BOOTP server).
  • Page 12: Mikrotik Routeros

    You can also use any programs compiled for i8086, i386, i486 or Pentium instruction sets. Ethernet. RouterBOARD 200 series has one or two onboard Ethernet ports with National Semiconductor DP83816 controllers. Linux 2.4 and up and the latest BSD systems have the driver for this chip in the kernel.
  • Page 13: Bios License

    The RouterBIOS uses GNU/GPL LinuxBIOS, Etherboot, and ADLO. To get a CD with the corresponding source code for the GNU/GPL covered programs in RouterBIOS, wire transfer $45 to MikroTikls SIA, Pernavas 46, Riga, LV-1009, Latvia. Please contact MikroTikls SIA (sales@mikrotik.com) for our current account information and wire transfer instructions. Offer valid until 2010.
  • Page 14: Configurable Options

    RouterBOARD 200 Series User's Manual option marked with '*'. Configurable Options boot delay - how much time to wait for a key stroke while booting (0..10 seconds; 1 second by default). boot key - which key will cause the BIOS to enter configuration mode during boot delay (any key | <Delete>...
  • Page 15: Bios Upgrading

    CompactFlash or on an ATA drive with a program like PhysDiskWrite for Windows or dd for UNIX/Linux), which You can use to boot the RouterBOARD from. This program will upgrade the BIOS to the latest version. The BIOS upgrading is supported also from MikroTik RouterOS. The procedure is described in the MikroTik RouterOS manual.
  • Page 16: Appendix

    RouterBOARD 200 Series User's Manual Appendix Connector Index PCI female slot SoDIMM slot RS232C male DB9 port LCD male header 1 VCC +5V 2 GND 3 RS (Register Select, AFDX) 4 Contrast adjust (controlled) 5 E (Enable signal, INITX) 6 R/W (Data read/write or SLINX)
  • Page 17 RouterBOARD 200 Series User's Manual 5V 400mA (2W) Fan output (male header) 1 GND 2 VCC +5V 3 Fan speed control Power header (positive contact is a square ( ) contact with a small '+' sign near it) ◘ Power jack (positive contact is the central pin) Low Pin Count (LPC) connector 1 VCC +3.3V...
  • Page 18 RouterBOARD 200 Series User's Manual IEEE1149.1 Boundary Scan Architecture (JTAG) connector 1 TDO (Test Data Output) 2 TDI (Test Data Input) 3 TCK (Test Clock) 4 TMS (Test Mode Select) 5 TRST# (JTAG Test Reset)
  • Page 19: Jumper Index

    RouterBOARD 200 Series User's Manual Jumper Index Reset Open Normal operation Close Force immediate reboot CompactFlash ATA Master/Slave select Open CompactFlash is ATA Slave device Close CompactFlash is ATA Master device Clear CMOS Data Normal operation Clear CMOS data Power source select External powering (jack or header) IEEE802.3af Power over Ethernet...
