FCP-NA-701, FCP-PA-701

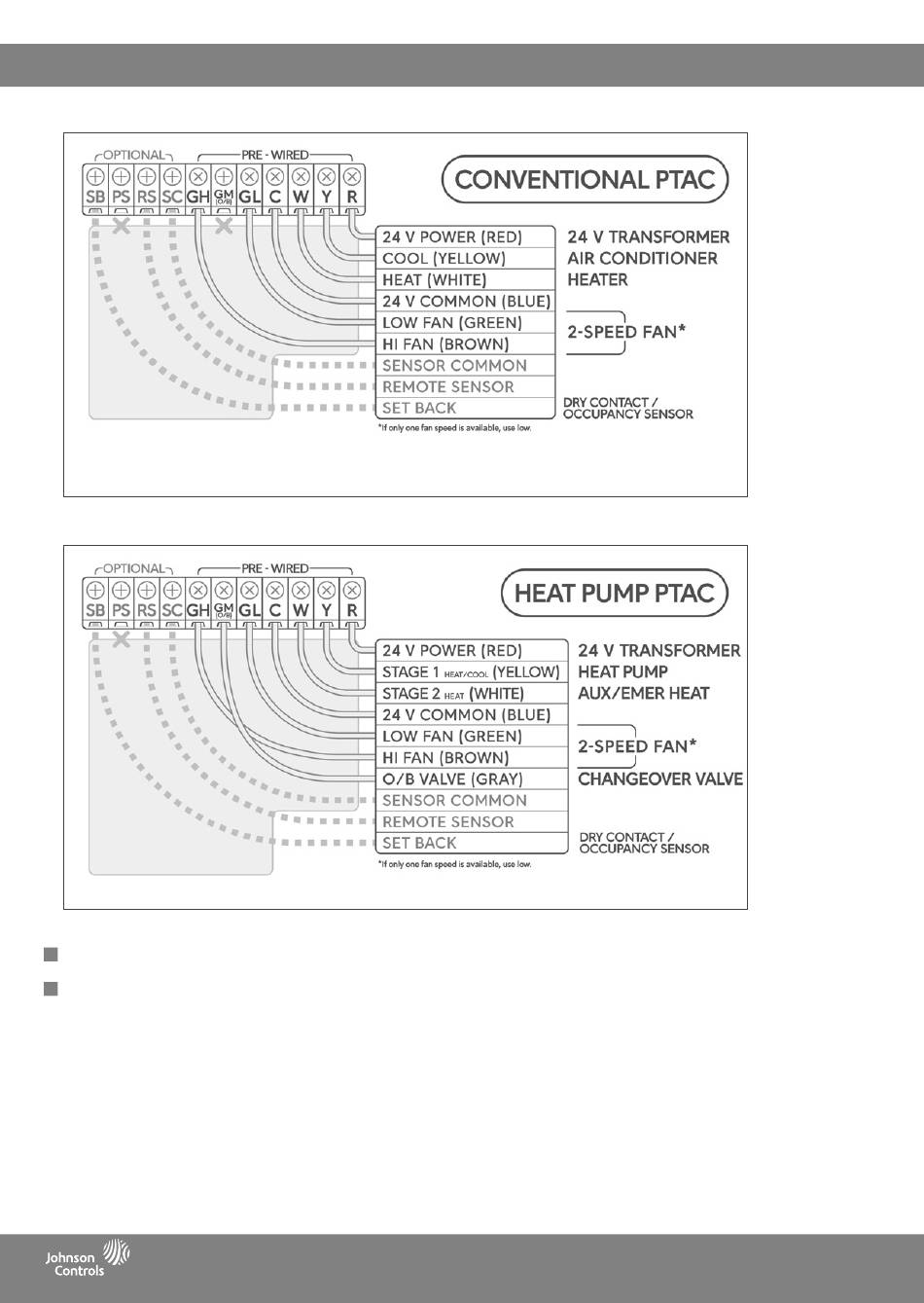

Figure 9: Conventional PTAC
Figure 10: Heat pump PTAC
Setup and adjustments
Preset configuration profiles
The FCP thermostat includes 20 preset configuration profiles. You can use these profiles to quickly configure essential settings, such as
system type, remote sensor, and pipe sensor.
The thermostat screen shows the preset configuration menu on the first power up or after a factory reset. To select a configuration
profile, use the Up or Down buttons to scroll through the configuration profiles, then press Mode to confirm your selection. Table 2 lists
the preset configuration profiles.
