Kubota L45 Operational And Safety Information

TRACTOR, LOADER, BACKHOE - Kubota "#L45",
2015 - "Operational and Safety" Information
1560 Hwy. 1 South / MLK Blvd. Greenville, MS. 38701, phone; (662) 335-3535
store hours; 7:00 am - 5:30 pm Monday thru Friday, 7:00 am - 11:00 am Saturdays
store email; trcgreenville@gmail.com,
------------------------------- "Serving the Greater Delta Area since 1979" ------------------------------------
Like anything else at our location, each and every piece of equipment is potentially dangerous. The same applies to our

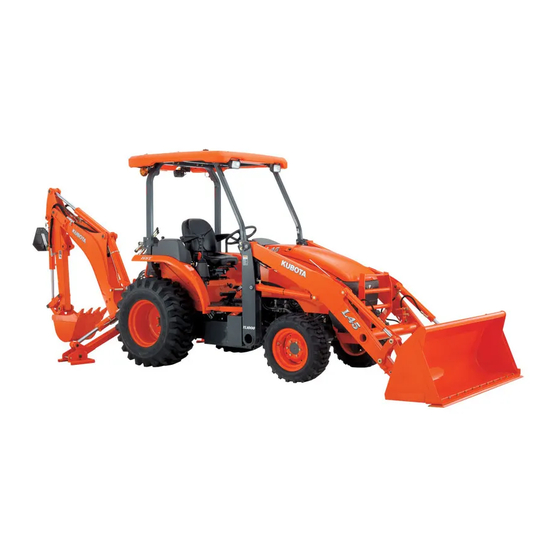

"Kubota 45-hp TLB, (comprised of a model; #L45TL - Tractor, model; # BT1000A - Backhoe, model; #TL1000A #BT - Front
Front Loader Attachment and a #TL1765 Front-Loader Bucket.) With that in mind, please take a few moments to go over
the information printed below. These recommendations are from the manufacturer, insurance companies, magazine
articles, the rental industry our customers and our own staff. We have compiled them to help lessen the chances of
accident or injury! While our "Operational and Safety" information only hits a "few high points" and contains "some" useful
information, we strongly encourage you to take the necessary time to read and read the complete manufacturer's
"Operational and Safety Manual" as well as the AEM's "Equipment Safety Booklet". If you should have any questions,
please stop and call TRC immediately at our store; (662) 335-3535, after hours at; (662) 822-1907 or (662) 822-1909.
Never use any equipment in doubt!
A. MACHINE'S INTENDED USE;
This "Tractor / Loader / Backhoe" is designed for general "earth
moving purposes", handling, ditch digging, etc. It is "NOT designed
for demolition work or a substitute lifting crane"! NEVER use this
machine as a ram or use the bucket as a work platform, personnel
carrier, to pry or as a support! Do not alter or modify this equipment
in any way. If you have any questions as to the type of work this
machine is to be used on, stop and ask TRC. Make sure the job work
is matched to the intended use, design and ability of the machine.
B. MACHINE'S (RENTAL) DESCRIPTION;
Equipment;
TRACTOR, 45hp, Diesel; comes equipped with the following; 1x - Manufacturer's "Operator's Safety Manual",
1x - 72" width Front Loader Bucket. Tractor is filled up with Diesel Fuel at the time of the rental. Its must be
refilled prior to retuning or either pay a refueling fee.
Accessory Rental Items;
BACKHOE ATTACHMENT;
And can only be installed or detached by TRC Employees
(TRC computer description;
BOX SCRAPER;
BARRICADES;
(TRC computer descriptions;
DRUM;
FOLDING;
TRAFFIC CONE - 28" Reflective)
18" reflective)
Related Merchandise / Resale Items;
2 5/16" TRAILER BALL;
Customer must use a 2 5/16" diameter with at least a 10,000 lb. or higher tow capacity.
BARRICADE SAFETY TAPE;
offer this in a yellow "Caution" Tape or a red "Danger" Tape. Both available in 300' or 1,000' lengths.
BARRICADE SAFETY FENCING;
priced separately.
FUEL - Diesel;
C. MACHINE SPECS;
TRACTOR;
MODEL; V2203-M-E3-TLB1
ENGINE;
Gross power (SAE) 45.0 hp (33.6 kW), Net power; 42.5 hp (31.7 kW), Total displacement; 134.1 cubic
RATED;
inches, Number of cylinders; 4, Rated speeds; 2700 rpm, Max. PTO power; 32.0-hp, Total Displacement;
134.0 cubic inches, Rated Revolutions; ; 2700 rpm's, Low Idling Revolutions; 900 to 980 rpm's, Battery;
12V, RC:90 min, CCA: 550A.
Fuel tank capacity; 11.9-gallons, Engine Crankcase (with filter); 8.7-quarts, Engine Coolant;
CAPACITIES:
6.9-quarts, Transmission Case; 12.2 quarts. Front Axle Case; 7.4-quarts.
RELATED INFORMATION;
Wet disc.
BRAKE TYPE;
MACHINE DIMENSIONS & WEIGHT;
HYDRAULIC SYSTEM;
Position control.
Front; 27 x 10.5-15R4 (max cold inflation pressure);
TIRES:
psi.
Power Steering; Hydrostatic, Type; HST Plus, Max traveling speed; 14.9 mph (24.0 km/h),
TRANSMISSION;
Range shift lever position; Seat side, right.
2015 - KUBOTA #L45 "TRACTOR / LOADER / BACKHOE" - OPERATIONAL and SAFETY INSTRUCTIONS
45.0-hp, 4-WD, Diesel
from; TAYLOR RENTAL CENTER
.
(TRC computer description;
TRACTOR 45hp, Box Scraper)
(SAFETY BARICADE DRUM) and
are priced separately. We suggest using if you have vehicular or pedestrian traffic nearby.
(TRC computer description;
(TRC computer description;
(TRC computer description;
Min. turning radius; 11.2 ft.,
Pump capacity; 25.0 gpm, 3-Point hitch lift capacity at 24" behind lift point; 2,756 lbs.,
web site; taylorrentalgreenville.com
TRACTOR 45hp, xa BACKHOE).
TRAILER, TOWING BALL - 2 5/16");
SAFETY, BARRICADE TAPE);
SAFETY, BARRICADE FENCING);
psi. Rear; 15-19.5R4 (max cold inflation pressure)
This item is an accessory
is priced separately.
is priced separately. We
50' fencing is
page 1 - 6
.
..
.
.
.
.
.
.
.
.
.
.
