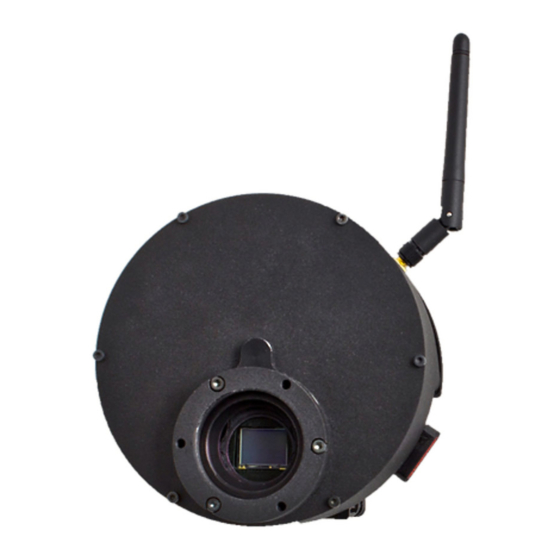

- Page 1 Astrel Instruments AST-8300-B Astrel Instruments AST-8300-B MOUNTING FILTERS ST EP BY STEP USER GUIDE rev E Mounting Filters UG rev E...
- Page 2 Astrel Instruments AST-8300-B Introduction This guide describes the complete procedure to be followed by the user to mount filters on the integrated filter-wheel. The guide refers to SW release 1.12. Filters mounting step by step On the wheel, filters are referenced as 1 (shutter) - 2 - 3 ... looking at the camera from the optical window side and counting CCW.
- Page 3 Astrel Instruments AST-8300-B WARNING: Do all the operation in a clean and dry ambient. 1. Set-up the camera control: the best is to use a PC (via ETH cable or WIFI through the WIFI dongle on USB FS port) 2. power on the camera and wait for boot completion 3.
- Page 4 Astrel Instruments AST-8300-B block the filters: 8. open to Filterwheel app from the Camera Desktop menu Mounting Filters UG rev E...
- Page 5 Astrel Instruments AST-8300-B 9. push the button of the selected filter (on the first row there are filter 1 (Shutter) - 2 - 3 - 4; on the second row there are filter 5 - 6 - 7 – 8) 10.
- Page 6 Astrel Instruments AST-8300-B 14. Use + and – buttons to move the wheel until one of the tapped holes for the plastic caps is accessible 15. take one of the correct plastic caps (depending on the filter's thickness) and fasten one of...
