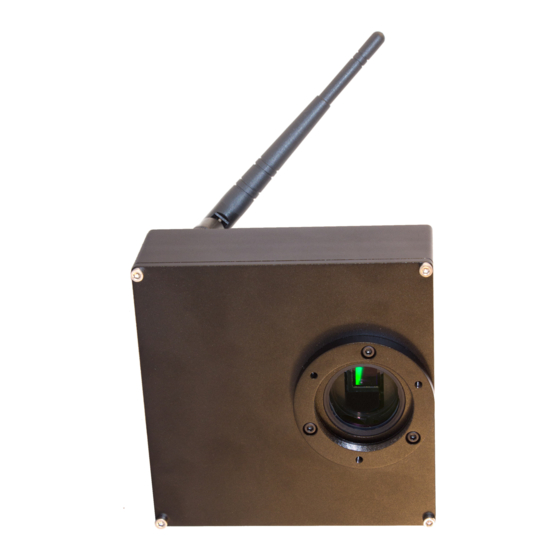

- Page 1 Astrel Instruments AST-8300-X AST-183-X Astrel Instruments AST8300X AST183X MOUNTING FILTERS STEP BY STEP USER GUIDE rev A Mounting Filters UG rev A...
- Page 2 The guide refers to SW release 1.13. Filter wheel description The AST8300X and AST183X are equipped with 8 positions internal filter wheel for up to 7 1,25” unmounted filters with thickness between 1 and 3mm. One position is the shutter.
- Page 3 Astrel Instruments AST-8300-X AST-183-X Filters mounting step by step WARNING: Do all the operation in a clean and dry ambient. 1. Before opening the air valve to remove the vacuum, always insert the vacuum pump into the camera air valve and make vacuum on the connecting tube: using the vacuum pump...
- Page 4 Astrel Instruments AST-8300-X AST-183-X 9. insert all the filters 10. insert the spacer rings where needed (only for filters of 1.1 to 2mm thickness) 11. insert the correct number of filter blocking washers (1 or 2 for each screw depending on...
