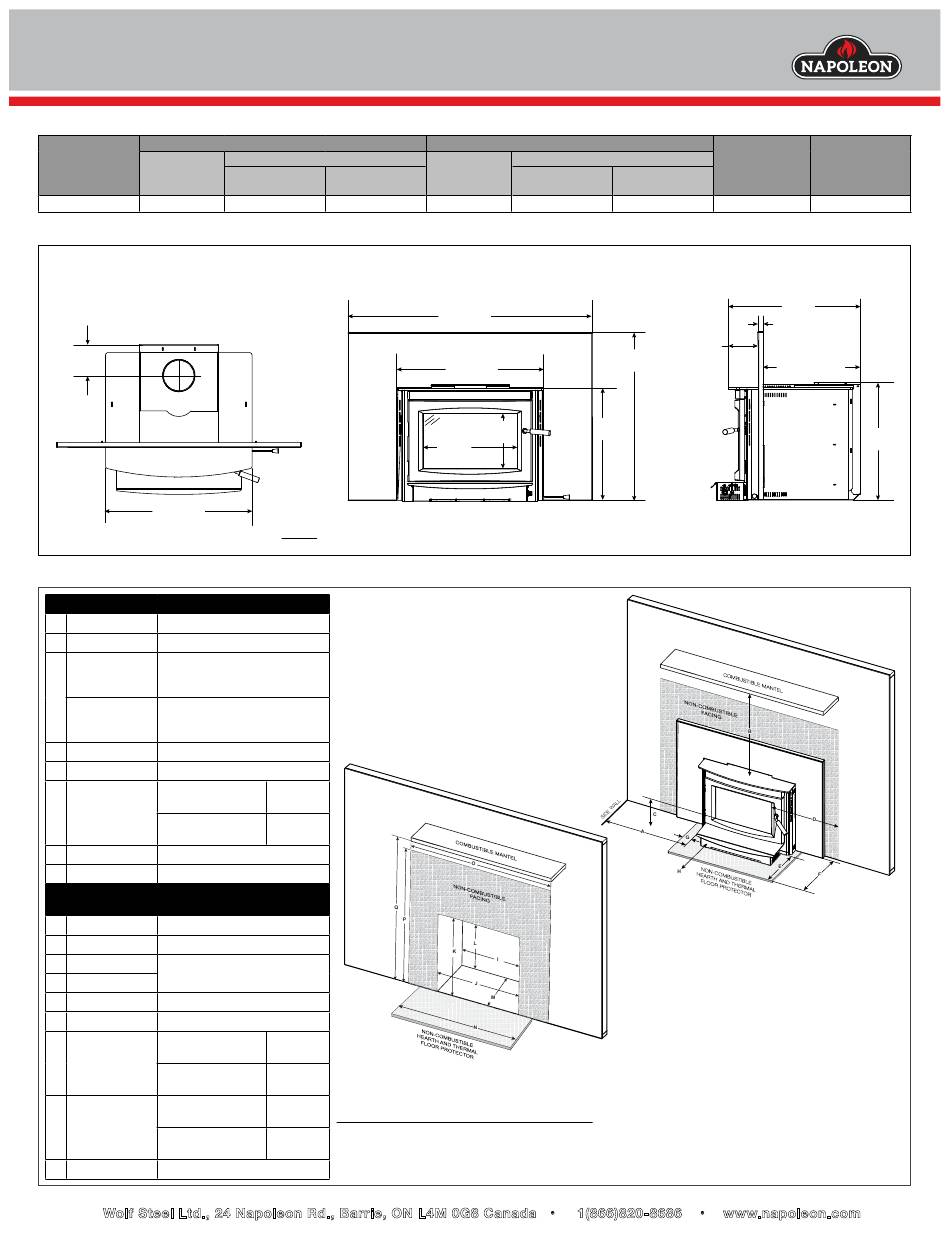

Napoleon S25i Manual

S25i

Specifications

Model
Firebox
S25i 28 3/4
Dimensions
top view
6"
(152mm)
28 3/4"
(730mm)

Minimum Clearances to Combustibles

MINIMUM CLEARANCES
A Sidewall 20 1/2" (521mm)
B Mantel 30" (762mm)
Floor to bottom
of glass w/out 17" (432mm)
floor protection
C
Floor to bottom
of glass w/ floor 6.5" (165mm) *
protection
Side trim to glass 15" (381mm)
D
E Hearth (front) 19" (483mm)
USA
Minimum hearth
F
extension
Canada
G Hearth (side) 8" (203mm)
H In front of insert 48" (1219mm)
MINIMUM EXISTING
FIREPLACE DIMENSIONS
I Width (rear) 29" (737mm)
J Width (front) 31" (787mm)
K Height (front)
23 1/2" (597mm)
Height (rear)
L
M Min. depth 15 1/2" (394mm)
N Hearth width 44 3/4" (1137mm)
SBP25I3348
(large backer plate)
O Min. facing width
SBP25I3041
(standard backer plate)
SBP25I3348
(large backer plate)
P Min. facing height
SBP25I3041
(standard backer plate)
Q Mantel 53 1/2" (1359mm)
Wolf Steel Ltd., 24 Napoleon Rd., Barrie, ON L4M 0G8 Canada
Width
A
SBP25I3348 SBP25I3041
Backer Plate Backer Plate
48 41
NOTE: See "Specifications" section above for "A" and "B" dimensions of SBP25I3348 and SBP25I3041 backer plates.
16"
(406mm)
18"
(457mm)
48"
(1219mm)
* R value (with hearth floor protection of 19" depth):
41"
• 1,471 in Canada
(1041mm)
• 2,957 in U.S.A
33"
HEARTH EXTENSION / FLOOR PROTECTION:
(838mm)
Must be non-combustible and extend 16" (406mm) in the USA / 18" (457mm) in Canada in front of the insert and
30" 8" (203mm) on both sides.
(762mm)
Clearances can be reduced with shielding acceptable to local authorities. Reduced installation must comply with
NFPA 211 or CAN/CSA-B365.
Height
Firebox
SBP25I3348
Backer Plate
22 1/8 33
front view
A
28 3/4"
(730mm)
22 1/8"
10 7/8"
(562mm)
(277mm)
18 1/2"
(471mm)
1(866)820-8686
B
Depth
SBP25I3041
Backer Plate
30 26
right side view
(660mm)
1"
(25mm)
5 3/4"
(146mm)
B
19 1/8" - 14 3/8"
(486mm - 365mm)
www.napoleon.com
Viewing Area
200.6 in²
26"
*
23"
(584mm)
W415-2902 / 07.24.20
