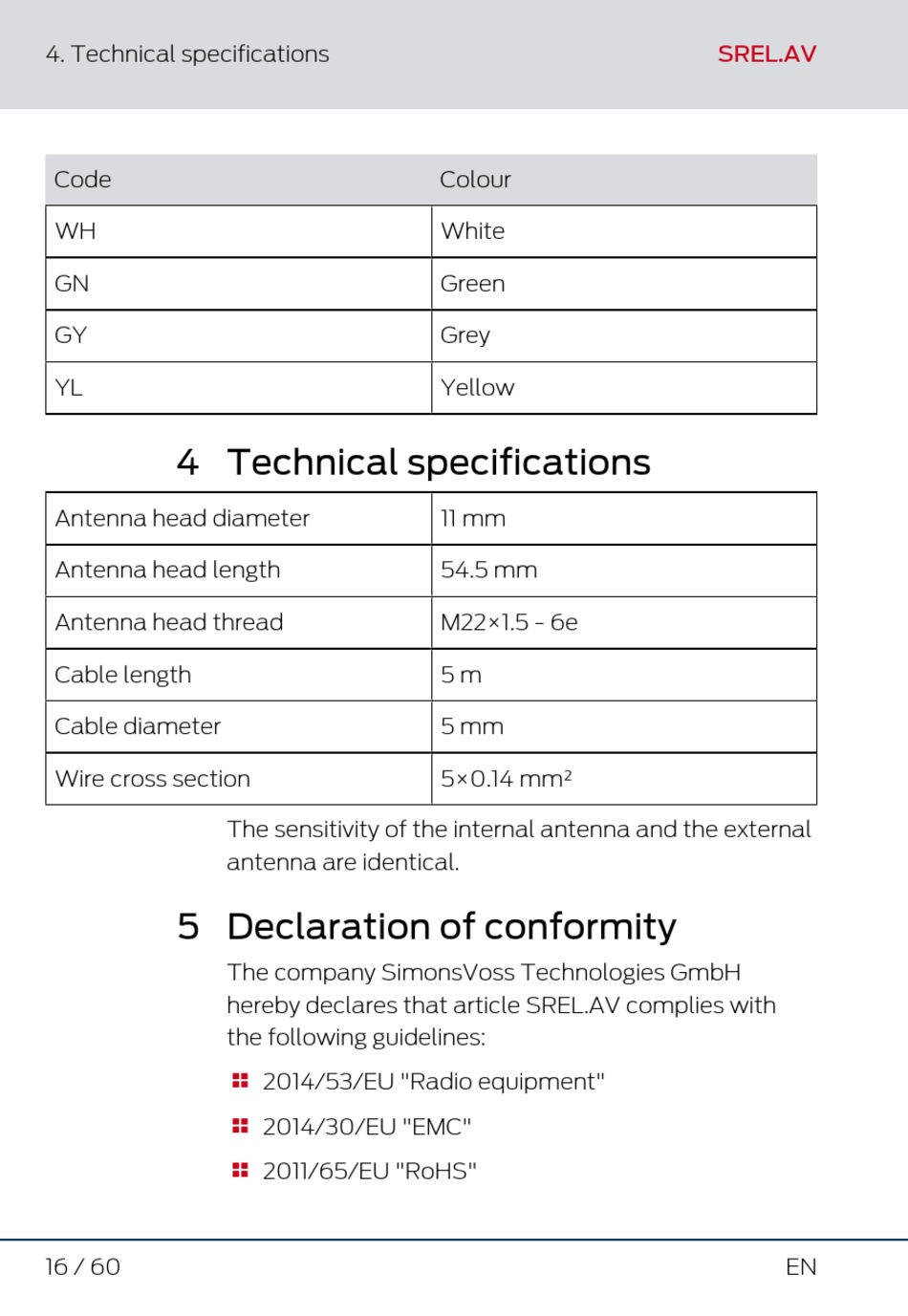

Technical Specifications; Declaration Of Conformity - Simons Voss Technologies SREL.AV Quick Manual

4. Technical specifications

Code
WH
GN
GY
YL
4 Technical specifications
Antenna head diameter
Antenna head length
Antenna head thread
Cable length
Cable diameter
Wire cross section

5 Declaration of conformity

16 / 60
The sensitivity of the internal antenna and the external
antenna are identical.
The company SimonsVoss Technologies GmbH
hereby declares that article SREL.AV complies with
the following guidelines:
2014/53/EU "Radio equipment"

2014/30/EU "EMC"

2011/65/EU "RoHS"

Colour
White
Green
Grey
Yellow
11 mm
54.5 mm
M22×1.5 - 6e
5 m
5 mm
5×0.14 mm²
SREL.AV
EN
