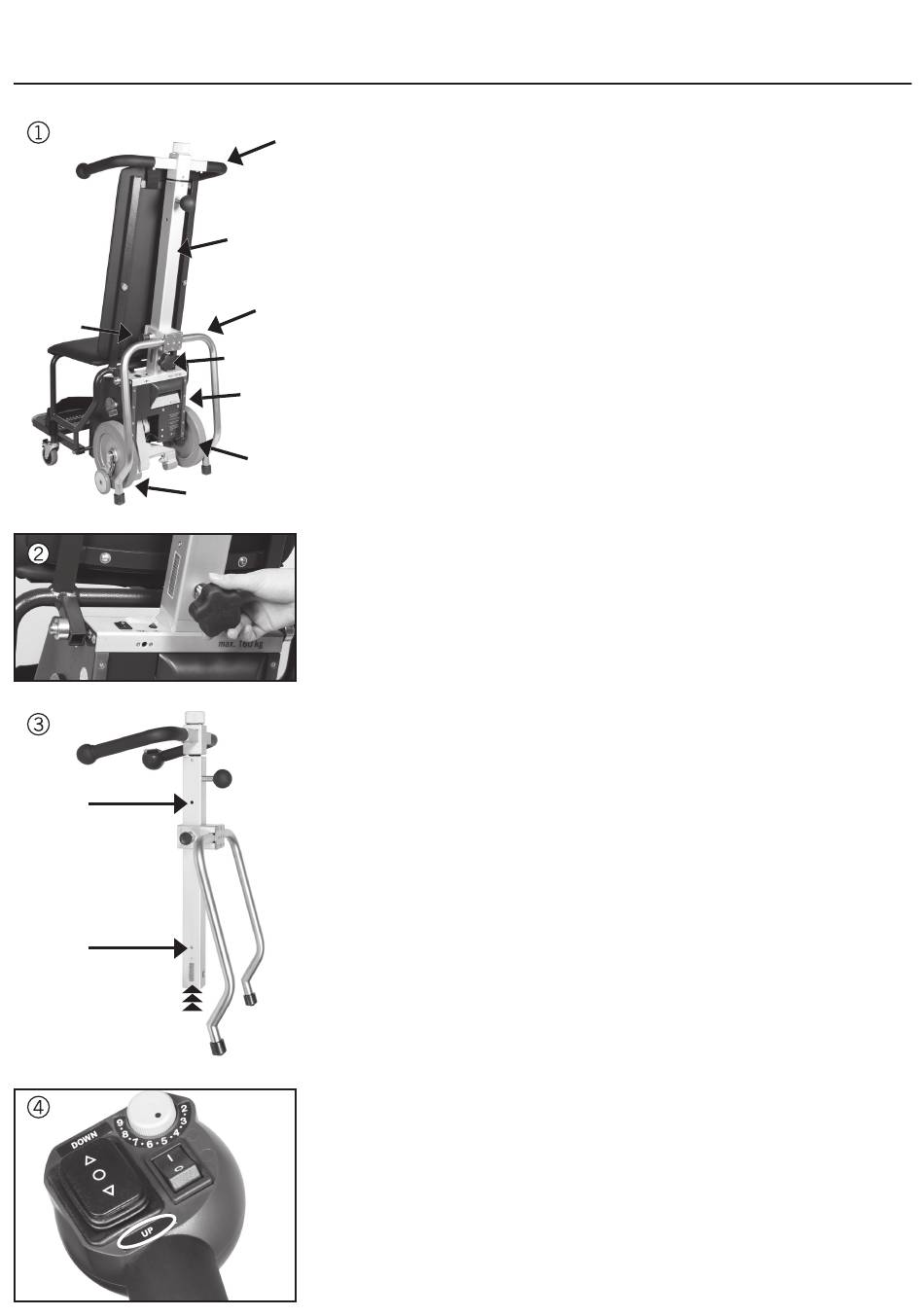

Turning device s-max

1 = handle unit

2 = column

3 = turning gear

4 = locking knob on the column

5 = power unit

6 = running wheels

7 = locking bolt on the turning device

This turning device is for the most part already prepared to be mounted by the

manufacturer. Should this not be the case, please attach the turning device as

follows:

1. Open the locking bolt on the column and remove the handle unit.

2. Slide the turning device upward on the column until it locks at the upper

Attention: the turning device must be in this position any time you are climbing

up or down stairs!

3. Now put the handle unit with the attached turning device back onto the

4. As soon as the handle unit is well attached to the power unit and the turning

locking point (1).

power unit and lock the column with the locking knob. Make sure that the

locking knob is tight.

device is locked in the upper position, you may turn on the s-max. Press the

Up/Down switch, direction "up", until the running wheels are approximately

2-3 cm in the air.

Operator's manual

Stand 03_2008

Page 1 4. As soon as the handle unit is well attached to the power unit and the turning device is locked in the upper position, you may turn on the s-max. Press the Up/Down switch, direction “up”, until the running wheels are approximately...
Page 2 6. Push the Up/Down switch, direction “down”, until the running wheels are in their original position. The s-max is now sitting on the turning device, so you can transport a person even if there is very little space. Attention: never climb or descend stairs in this position (see picture)! The turning device must be locked in the upper position whenever you are climbing or descending stairs.
