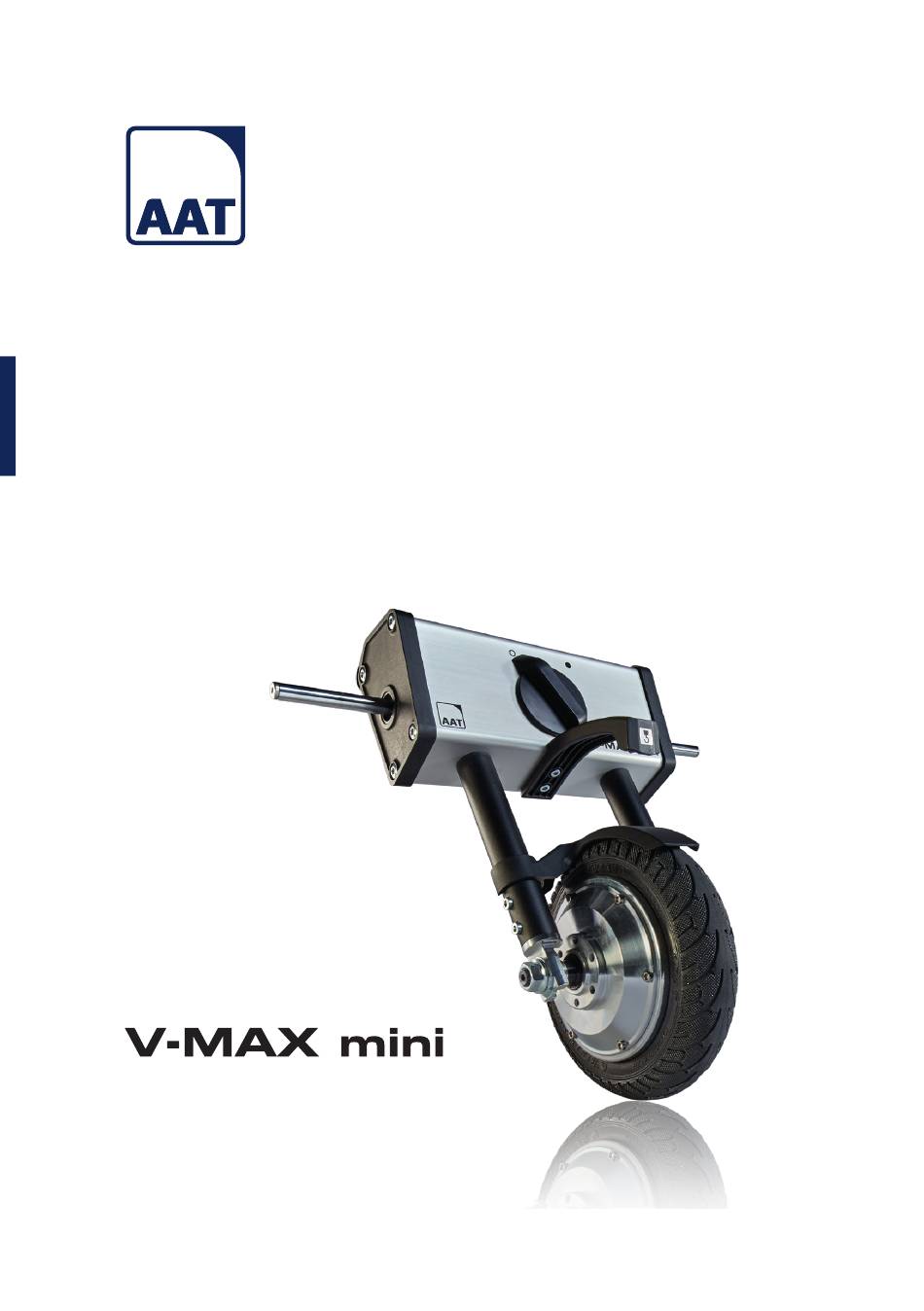

- Page 1 ASSEMBLY INSTRUCTIONS PART-NO: 3 1 5 0 0 2 J U S T P U S H...
- Page 2 Requirements for mounting the bracket for the AAT V-MAX mini: The bracket for the V-MAX mini can be attached to a wheelchair frame diameter of Ø18 - 30.5mm. The bracket for the V-MAX mini is suitable for wheelchairs with seat widths from 36cm to 48 cm.
- Page 3 Procedure: Determine the position in which the bracket is to be assembled. Remove the wheelchair wheels. Assemble the V-MAX mini mount as described below. Mount the previously disassembled wheels. Check that the drive has enough space to swing freely upwards. Adjust the angle of the device as described below.
- Page 4 Assembly example with drum brake...
-
Page 5: Bill Of Material
Bill of material Teil Bezeichnung 1 Bezeichnung 2 Anzl 1 042106 Hanger for release shafts V-MAX mini ISO 14579-M6x25- 2 042633 Zylinderschraube mit Torx 3 031871 square nut DIN 557-M6-5 4 042332 bracket clamp wide for assembly of P1204 5 042672 Adapter plate v-max mini socket DIN 912-... - Page 6 Mounting example without drum brake...
- Page 7 Bill of material Teil Bezeichnung 1 Bezeichnung 2 Anzl 1 042106 Hanger for release shafts V-MAX mini ISO 14579-M6x25- 2 042633 Zylinderschraube mit Torx 3 031871 square nut DIN 557-M6-5 4 042332 bracket clamp wide for assembly of P1204 5 042672 Adapter plate v-max mini socket DIN 912-...
- Page 8 Assembly range Sample illustration Note the assambly range illustrated above. The bracket must be attached in a position where the unit can swing freely and does not get blocked by the cross brace. However the position should be as far forward as possible so that the accompanying person’s freedom of movement is restricted as little as possible.
- Page 9 Adjustment of the drive Sample illustration To ensure optimum traction of the drive unit, set the upper edge of the hanger for release shafts (Pos.1) to a dimension of 280 ± 1 mm to the floor. This results in an angle of the drive unit (measured at the housing) of 60°...
- Page 10 Battery plate and thumb throttle without drum brake Sample illustration Please make sure that the battery plate is attached to the wheelchair in a way that no function of the wheelchair is impaired. Make sure that no cables can be pinched or damaged. Attach the thumb throttle bracket as shown in the illustration.
- Page 11 Battery plate and thumb throttle with drum brake Sample illustration Please make sure that the battery plate is attached to the wheelchair in a way that no function of the wheelchair is impaired. Make sure that no cables can be pinched or damaged. Remove the upper clamp of the original brake lever and replace it with the bracket supplied.
- Page 12 Attention! Installation may only be carried out Unless otherwise specified, bolted by specialists authorized by the manufacturer. joints of strength class 8.8 or higher shall be tightened as follows. Thread size Tightening torque in Nm Important note for tilt supports! Before operating the device, check the original tilt supports of the wheelchair manufacturer to ensure safety.
- Page 13 Notes...
- Page 14 Notes...
- Page 15 Notes...
- Page 16 Your Contact: AAT-Bracket assembly department · Sigmaringer-Straße 100 · 72458 Albstadt Tel.: +49.(0) 74 31.12 95-537 · anbau@aat-online.de 19.12.2024 Date: Version: Picked by: www.aat-online.de...
