-max
S
Stair Climbing System
Translation of the original user's manual
GB

Advertisement

Table of Contents
loading

Related Manuals for AAT S-max

Summary of Contents for AAT S-max

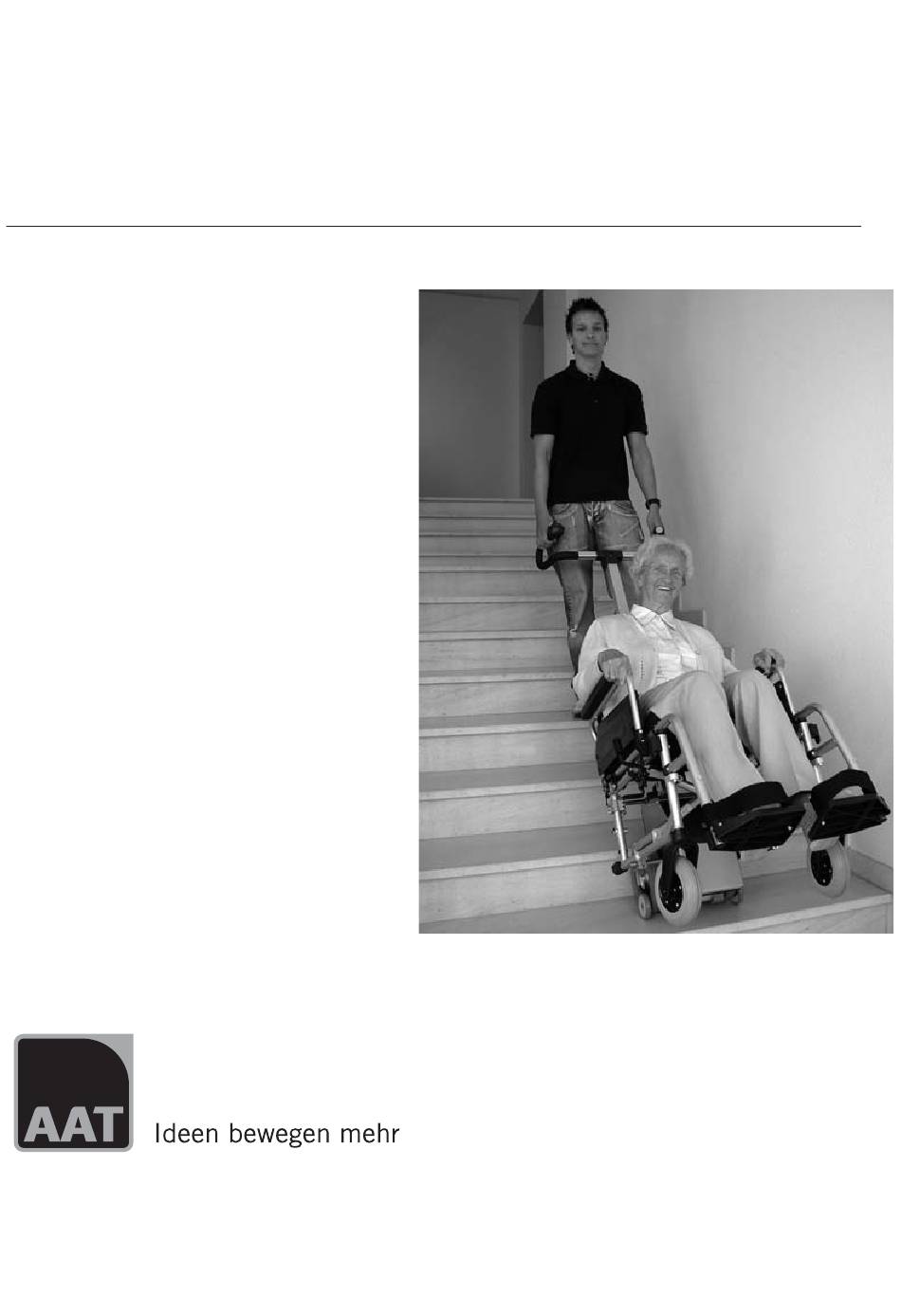

  • Page 1 -max Stair Climbing System Translation of the original user’s manual...

  • Page 2: Ce Declaration Of Conformity

    -max CE Declaration of conformity The company AAT Alber Antriebstechnik GmbH herewith declares that the products of the stair climbing system -max were developed and manufac- tured in concordance with the current regulations of the European Union, EEC Guidelines 93/42/EG, 2007/47/EG and 2006/42/EG.

  • Page 3: Table Of Contents

    Adequate use ....Features of the s-max ....
  • Page 4 Climbing downstairs ....6.13 Laying the s-max down on the stairs ..6.14 Transport .....

  • Page 5: General Information

    The s-max is capable of climbing stairs up to a step height of 22 cm. The mi- nimum depth of the step’s surface must be 12 cm regardless of the type of stairs (regular straight stairs or winding stairs).

  • Page 6: Description Of The Product

    Only authorized operators may use the s-max. Therefore never leave the s-max unattended. Please do not use the s-max in the rain, slippery and wet conditions, snow or ice due to the following potential safety hazards, e.g. danger of slipping restricted braking effect etc.

  • Page 7: Features Of The S-Max

    -max Features of the s-max Handle unit 1 = control unit 2 = handle 3 = tightening knob for the handles' horizontal adjustment 4 = tightening knob for the handles' height adjustment 5 = column 6 = tightening knob for the column...

  • Page 8: Dimensioned Sketch

    -max Dimensioned sketch...

  • Page 9: Standard Scope Of Delivery

    -max Standard scope of delivery 1 = charger including instructions 2 = battery pack 3 = handle unit 4 = climbing unit plus the user's manual Optional accessories 1 = anti-tilt-support 2 = tipping bar 3 = transportation adapter 4 = bracket 5 = inclination indicator 6 = increase of climbing height 7 = seat belt system including hip belt...

  • Page 10: Assembly

    -max Assembly With a few movements you can assemble the s-max by means of several fix- tures and tightening knobs. Disassembly is just as easy. Handle First connect the handle with the climbing unit by inserting the column Œ into the holding device  on the climbing unit.

  • Page 11: Attach The Battery Pack

    Clean and dry the Sub-D socket connector with a regular cleaning cloth. You may not connect other devices to the Sub-D socket connector. This could destroy the s-max or the other electrical devices. Attach the battery pack Push the battery pack  sideways into the climbing unit; once connected it is automatically locked.

  • Page 12: Adjust The Handle

    -max Adjust the handle 3.4.1 Adjust the height of the handle Release the tightening knob Œ by turning counter clockwise. Pull out the handle  to the appropriate height (maximum shoulder height). Then re- tighten the tightening knob. Please always make sure that the tightening knob is secure. Please adjust the handle exactly according to instructions (see pic- ture).

  • Page 13: Safety Instructions

    -max Safety instructions For a safe operation of the s-max it is important that you observe and adhere to all warning signs and instructions in this user’s manual as well as the warning signs and instructions on the device itself.

  • Page 14: Instruction

    You may under no circumstances use the s-max to transport goods! Care and maintenance: Please make sure that you charge the batte- ry pack after each use of the s-max. If the s-max is not in operation, please turn off the device.

  • Page 15: Charge Of The Batteries

    This could lead to dangerous situations. If you chair is very narrow (i.e. a seat width of less than 40 cm), plea- se first confirm with AAT Alber Antriebstechnik GmbH whether it is possible to mount the device at all!

  • Page 16: Operation

    - is not exceeded. Battery pack Please make sure that the sealed lead acid batteries Œ are fully charged be- fore you use the s-max for the first time (extensive instructions you find in chapter 8.3). Safety brakes Before operating the s-max check the safety brakes Ž...

  • Page 17: Instructions For Operation

    If the s-max is not in operation, please turn the device off. The s-max is equipped with a turn off feature: if the device is on and has not been used for 5 minutes, the turn off feature switches the s-max off automatically.

  • Page 18: Membrane Keypad

    Please make sure that the chip is properly set to ensu- re safe and continuous operation. If you do not put in the chip you can turn on the s-max, but you cannot drive with it. This feature makes sure that no unauthorized person uses the device.

  • Page 19: Climber

    • begin climbing upstairs or downstairs However, you need to fold out the climber by activating the UP/DOWN switch, direction up, whenever a person takes a seat in the s-max, so the de- vice is supported by the climber (please also see chapter 6.6.1).

  • Page 20: Safety Brakes

    Pull in the climber to its upmost position and tilt the s-max backwards ap- proximately to a 45 degree angle of the column . If the s-max cannot be pushed forward Ž by the handle in said position, but merely rolls backwards , then the required brake effect for the safe operati- on of the s-max is granted.

  • Page 21: Attach S-Max To Or Detach It From The Wheelchair

    6.5.2 Bracket on the s-max On your s-max you find an upper Ž and lower  rod. To adjust the lower rod’s height there are several vertical holes drilled into the housing of the s-max.
  • Page 22 3. Tilt the s-max slightly backwards and drive the device in the middle of the wheelchair’s back. 4. At this point push the s-max forward until the lower rod Œ is inser- ted all the way into the lower bracket  on the wheelchair.
  • Page 23 -max 6.5.6 Remove the wheelchair’s wheels To move the wheelchair with the s-max up- and downstairs you need to re- move the wheelchair’s big wheels. The wheels must be lifted approximately 1 cm off the floor. After mounting the s-max to the wheelchair with the quick pins, if necessary, push the UP/DOWN switch in direction UP until the device plus chair is lifted accor- dingly by the climber.

  • Page 24: Transportation Of A Person With The S-Max

    When a persons takes a seat on the s-max, please follow these instructions: 6.6.1 Secure stand of the s-max To avoid the s-max moving when a person takes a seat, you must fold out the climber in such a way that it rests on the ground.

  • Page 25: Adjust The Handle

    After adjusting the handle, always make sure that it is securely faste- ned. Tilting the stair climbing system To drive on slopes or to climb stairs you must tilt the s-max, which can be done easily by means of the climber. 1. Turn on the s-max by pressing the ON/OFF switch.

  • Page 26: Climbing Upstairs

    -max 6.11 Climbing upstairs You may only be permitted to transport a person with the s-max, if you have been properly trained in the device's operation. Please always practice climbing stairs without a person and by acti- vating the single step mode plus the lowest climbing speed! Please always check the safety brakes before using the s-max (see chapters 6.4 and 8.5).
  • Page 27 . Since the single step mode is activated each time before you turn on the s-max, the climbing process ends here. To resume climbing, you need to press the UP/DOWN switch once again, direction "UP". At this point the climbing process repeats itself as described in point 7.

  • Page 28: Climbing Downstairs

    5. Tilt the s-max slightly toward you (see chapter 6.9). 6. Drive the s-max forward to the edge of the stairs Œ. The sensitive rolls  of the safety brakes Ž keep the s-max from rolling over the edge. 7. Press the UP/DOWN switch, direction DOWN, and the descending process begins.

  • Page 29: Laying The S-Max Down On The Stairs

    8. Again push the s-max all the way to the edge of the step, i.e. until the sensitive rolls of the security brakes stop the s-max.

  • Page 30: Trouble Shooting

    Are the fuses damaged? If so, exchange the fuses. If there is still a problem turning on the s-max, please contact your dealer. Is the safety chip for the engine immobiliser inserted? s-max do not drive...

  • Page 31: Accessories

    The s-max works with batteries and is delivered with one battery pack with charging electronics and safety latch. If you use the s-max often, i.e. if there are not sufficient breaks for the batte- ries to be recharged, we recommend you obtain an additional battery pack (available as an accessory).

  • Page 32: Care, Maintenance And Recycling

    -max Care, maintenance and recycling To insure the s-max safe and proper functioning we recommend a safety check done on the device every two years, even though there might not be any outer damage or malfunction evident. In the interest of your safety repairs of any kind may only be done by personnel authorized by AAT Alber Antriebstechnik GmbH.
  • Page 33 Exclusively use the AAT Alber Antriebstechnik GmbH voltage con- verter! Check the voltage converter regularly and protect it from oil, grease, aggressive cleaning agents, thinners and/or damage by sharp edges, etc. Repairs and service check-ups may only be performed by AAT Alber Antriebstechnik GmbH or their authorized personnel.

  • Page 34: Battery Pack

    In such case, please have your authorized dealer check and replace them, if necessary. If the s-max is at a standstill for some time, please connect it to the charger to retain the charge. This does not damage the sealed lead acid batteries, on the contrary, it increases their durability.
  • Page 35 Before charging, please read and follow all instructions and warning notes included with the charger. Please always turn off the s-max before you charge the batteries! Exclusively use the AAT Alber Antriebstechnik GmbH charger! Never touch the plug with moist hands! The battery pack may be charged either by means of the charging socket Œ...

  • Page 36: Fuses

    8.3.4 Charging in a vehicle 1. Put the charger’s plug  either into the socket on the battery pack or the socket on the s-max (please see chapter 8.3.2). 2. Then put the plug Œ of the automatic charger into the 230 V socket of ...

  • Page 37: Check Brake Lining

    The s-max and its battery pack are products of long durability. However, if your s-max is old and has reached the end of its lifespan you may return its components to AAT Alber Antriebstechnik GmbH or your authorized dealer to be recycled.

  • Page 38: Warranty And Liability

    Warranty AAT Alber Antriebstechnik GmbH grants a warranty of two years for all its products of type s-max including all its accessory parts (with the exception of the sealed lead acid batteries). The warranty begins at the date of purchase and covers failure of material and errors in manufacturing.
  • Page 39 -max Notes:...
  • Page 40 -max AAT Alber Antriebstechnik GmbH Postfach 10 05 60 · D-72426 Albstadt Tel. +49.74 31.12 95-0 · Fax +49.74 31.12 95-35 www.aat-online.de · info@aat-online.de...
