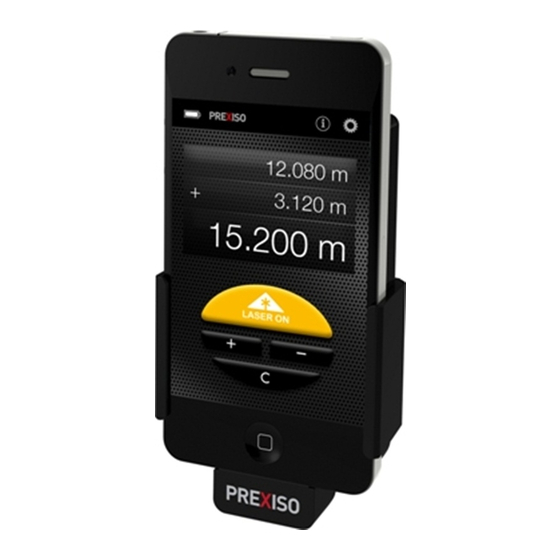

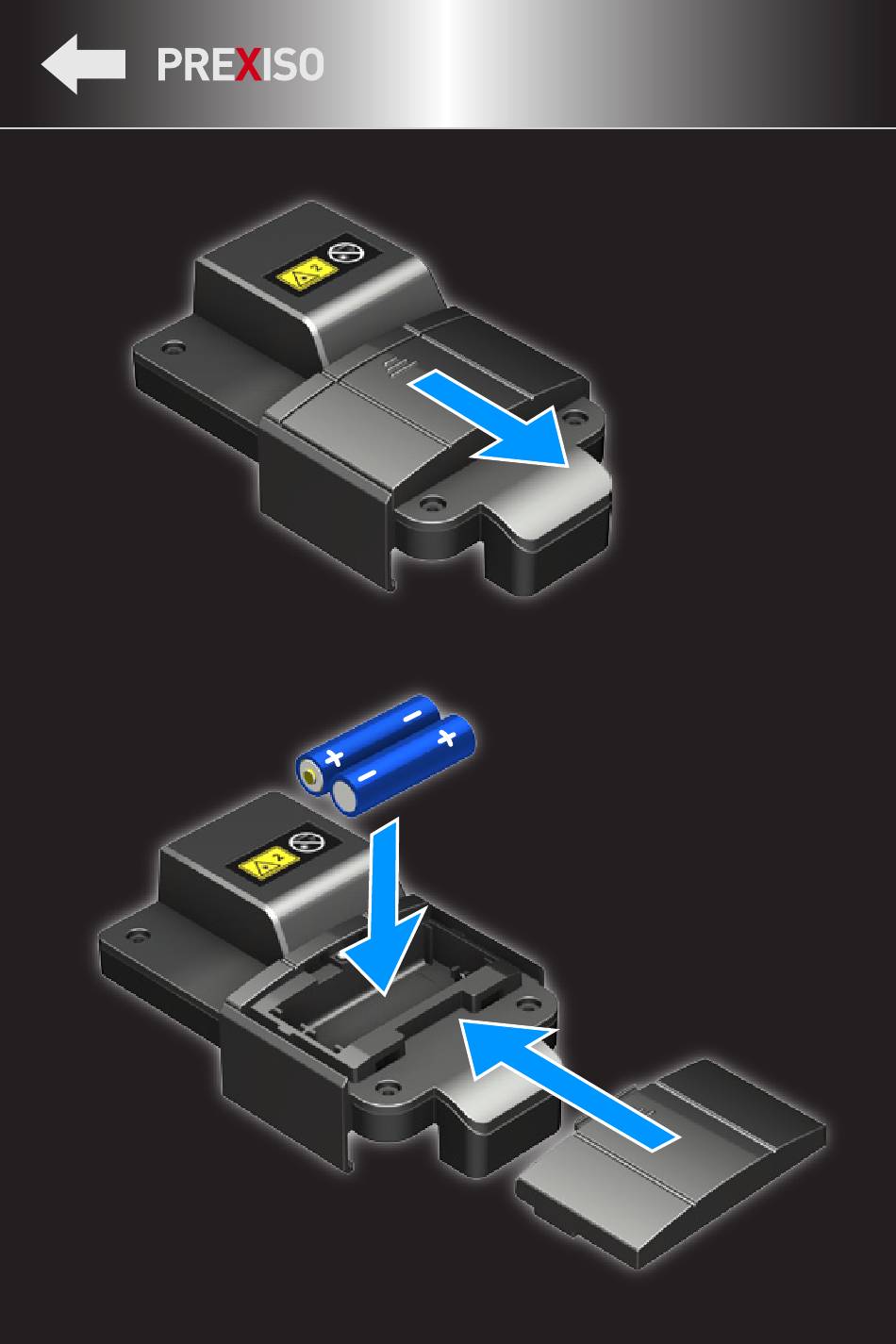

  • Page 1 Set-Up: Batteries 2x AAA...
  • Page 2 Set-Up: Mounting Laser exit Battery status:...
  • Page 3 Operations: Introduction The safety instructions and the user manual should be read through carefully before the product is used for the first time. The person responsible for the product must ensure that all users understand these directions and adhere to them. The symbols used have the following meanings: WARNING Indicates a potentially hazardous situation or an...
  • Page 4 Operations: Introduction Note: Measuring errors can occur when measuring to colourless liquids, glass, styrofoam or semi-permeable surfaces or when aiming at high gloss surfaces. Against dark surfaces the measuring time increases.
  • Page 5 Operations: Measurement 2.489 m...
  • Page 6 Operations: 1.523 m _ _ _ _...
  • Page 7 Operations: 1.523 m 1.523 m 2.485 m 2.485 m 4.008 m 4.008 m...
  • Page 8 Operations: Subtract 2.346 m _ _ _ _...
  • Page 9 Operations: Subtract 2.346 m 1.523 m 1.185 m 2.485 m 1.058 m 4.008 m...
  • Page 10 Operations: Step back (LASER OFF) Step back (LASER OFF)
  • Page 11 Settings 0.000m 0'00" 1/16 0 in 1/16 Enable/Disable disclaimer...

  • Page 12: Technical Data

    Technical Data Distance measurement Typical Measuring Tolerance * ± 3 mm / 0.12 in *** Maximum Measuring ± 4 mm / 0.16 in Tolerance ** Typical Range * 0.2 - 20 m / 0.66 - 66 ft Smallest unit displayed 1 mm / 1/16 in General Laser class...
  • Page 13 Care and Waranty Code Meaning Help @E203 Unknown command or wrong Use correct syntax parameter @E220 Error on serial communication Check communication @E252 Temperature too high Cool down module @E253 Temperature too low Warm up module @E255 Signal too low or distance Use special target plate out of range @E256...

  • Page 14: Safety Instructions

    Areas of responsibility Responsibilities of the manufacturer of the original equipment: Prexiso AG Europastrasse 27 8152 Glattbrugg Switzerland The company above is responsible for supplying the product, including the User Manual in a completely safe condition.
  • Page 15 Safety Instructions Permitted use • Measuring distances • Tilt measurement Prohibited use • Using the product without instruction • Using outside the stated limits • Deactivation of safety systems and removal of explanatory and hazard labels • Opening of the equipment by using tools (screwdrivers, etc.) •...

  • Page 16: Hazards In Use

    Safety Instructions • Aiming directly in the sun • This device is not designed for use by persons (including children) who have a restriced, phy- sical, sensory or mental capacity, or persons who lack experience and knowledge of how to use this device.
  • Page 17 Safety Instructions The device is designed for use in areas permanently habitable by humans. Do not use the product in explosion hazardous areas or in aggressive environments. WARNING Do not leave your device and its accessories within the reach of children or allow them to play with it.

  • Page 18: Electromagnetic Compatibility (Emc)

    Safety Instructions Electromagnetic Compatibility (EMC) WARNING The device conforms to the most stringent requirements of the relevant standards and regulations. Yet, the possibility of causing interference in other devices cannot be totally excluded. FCC statement (applicable in U.S.) This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.

  • Page 19: Laser Classification

    Safety Instructions • Reorient or relocate the receiving antenna. • Increase the separation between the equip- ment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help.
  • Page 20 Safety Instructions Laser Class 2 products: Do not stare into the laser beam or direct it towards other people unnecessarily. Eye protec- tion is normally afforded by aversion responses including the blink reflex. WARNING Looking directly into the beam with optical aids (e.g. binoculars, telescopes) can be hazardous. CAUTION Looking into the laser beam may be hazardous to the eyes.
