Eaton ARCON 3G Instructions Manual

Eaton ARCON 3G Instructions Manual

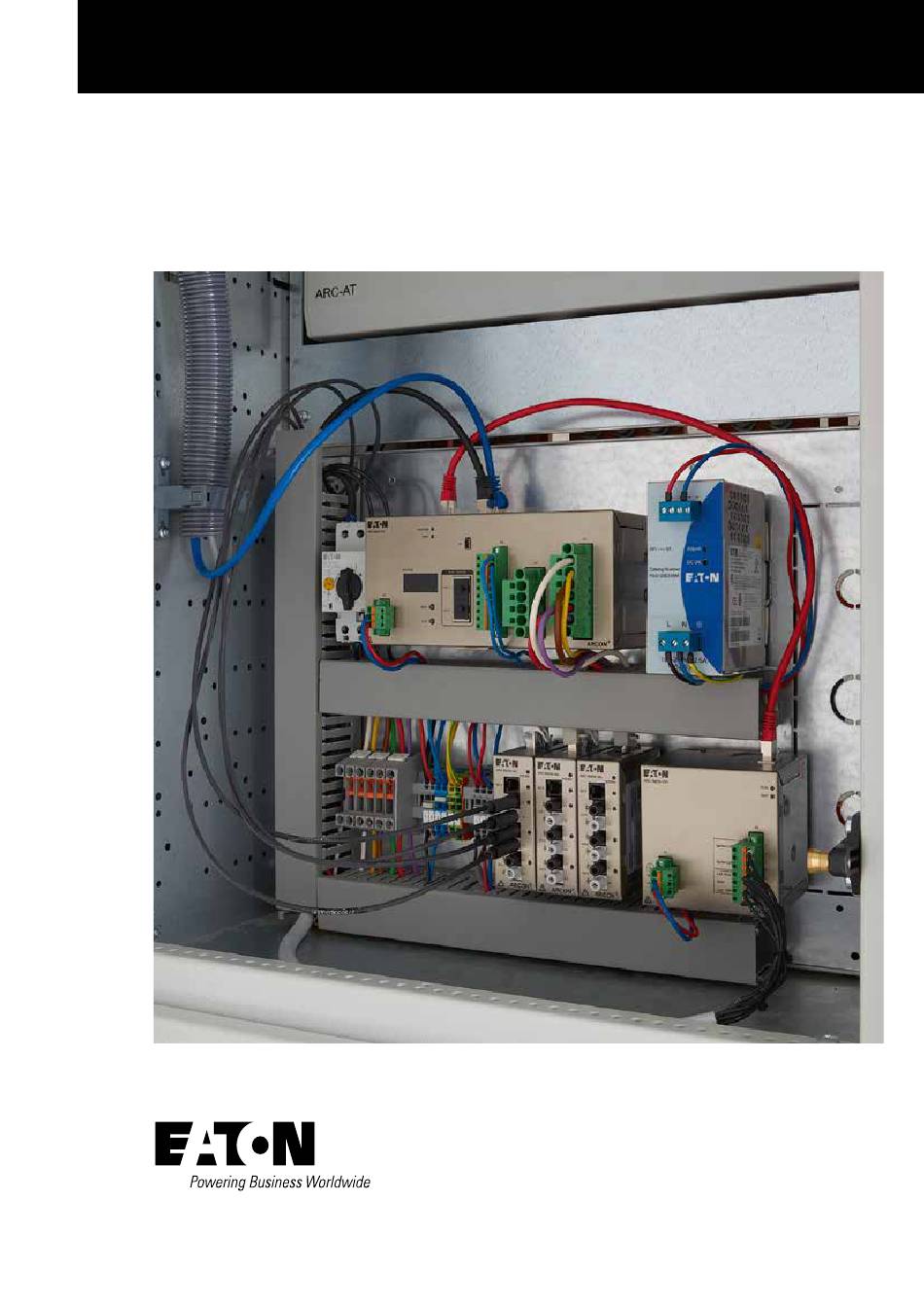

Third generation of active arc fault protection system
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
ARCON 3G
Third Generation of
active arc fault protection system
For low voltage switchgear assemblies

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ARCON 3G and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Eaton ARCON 3G

Summary of Contents for Eaton ARCON 3G

  • Page 1 ARCON 3G Third Generation of active arc fault protection system For low voltage switchgear assemblies...

  • Page 2: Table Of Contents

    1.1 ARCON 3G – General Outline ........

  • Page 3: Introduction

    ARCON 3G presents effective modular and compact system for arc protection in low voltage switchgear assemblies, which successfully provides both, personnel and assembly protection. ARCON 3G detects an electrical arc caused by a short circuit through optical sensors and the load current input on the system to employ the fast clearance of arc faults on an electrical system with a total arc mitigation time less than 2 ms.

  • Page 4: Functional Scope

    Figure 1.2 Comparison of impact timing for systems with and without ARC protection Functional scope The ARCON 3G protection system is designed as modular system, so that flexible use in different switchgears is ensured. The ARCON 3G system provides following modules which can be used to establish...
  • Page 5 ARCON 3G ARCON 3G simple arc protection system The ARCON 3G simple arc protection system is based on the following modules: ARC-LITE-3G Master LITE unit providing trip contacts & communication link to • connected Line Sensor(s). ARC-DMOD-3SL up to 3 Line Sensor (ARC-SL) and 1 Mobile Light Sensor (ARC-SM) •...
  • Page 6 ARCON 3G ARCON 3G extended arc protection system The ARCON 3G extended arc protection system is based on the following modules: ARC-MAIN-3G Master MAIN unit providing current measurement for additional tripping • criteria (di/dt), voltage measurement, HMI, trip contacts & communication link to...
  • Page 7 ARCON 3G ARCON 3G complex arc protection system The ARCON 3G complex arc protection system can link up to 5 extended systems together with MASTERLINK connection. With ARCON 3G complex arc protection system it is possible to provide line or ring topology for the purpose of redundancy. Main purpose of MASTERLINK is to share current criteria between master units.

  • Page 8: Terminal Connections

    ARCON 3G Terminal connections ARC-LITE-3G – Master LITE (arc fault monitoring) Figure 1.6 Connection diagram ARC-LITE-3G ARC-MAIN-3G – Master MAIN (arc fault protection) Figure 1.7 Connection diagram ARC-MAIN-3G ARCON 3G MANUAL MN026015EN October 2020 www.eaton.com...
  • Page 9 ARCON 3G ARC-DMOD-3SL – Detection module (up to 3 Line Sensors + 1 MLS) Figure 1.8 Connection diagram ARC-DMOD-3SL ARC-MAIN-HMI – External display and control unit (HMI) Figure 1.9 Connection diagram ARC-MAIN-HMI ARCON 3G MANUAL MN026015EN October 2020 www.eaton.com...
  • Page 10 ARCON 3G ARC-TMOD-1QD – Tripping module (ignition command for quenching device) Figure 1.10 Connection diagram ARC-TMOD-1QD ARCON 3G MANUAL MN026015EN October 2020 www.eaton.com...

  • Page 11: Mounting Instruction

    Mounting instruction DIN Rail modules All ARCON 3G modules are designed for DIN rail TS35 mounting to ensure quick and easy installation. For installation in a switchgear cabinet safety distance to adjacent components and cabinet parts like internal shrouding, door and side panel is required.
  • Page 12 To bring the head of the bolts into the cut-out one after the other please push the device alternatingly into the cut-out in the following order: right, top, left and bottom until the seal is evenly seated on the installation surface (door panel). ARCON 3G MANUAL MN026015EN October 2020 www.eaton.com...
  • Page 13 Thereafter, install the remaining three fixing clamps on the other sides of the housing. Now the four fastened fixing clamps can be tightened by using a screwdriver. Unmounting or changing the ARC-MAIN-HMI device can be done in reverse order. ote: ARCON 3G MANUAL MN026015EN October 2020 www.eaton.com...

  • Page 14: Simple System With Arc-Lite-3G Master

    3 parallel operating fast binary tripping outputs (NO) with ≤ 2 ms tripping time • 1 binary trip alarm output (NO) for indication • 1 binary Watch Dog output (NC) for system supervision • No parameter setting required • Figure 2.1 Simple system – Block diagram ARCON 3G MANUAL MN026015EN October 2020 www.eaton.com...

  • Page 15: Components

    ARCON 3G Components Description Picture Master LITE (ARC-LITE-3G) Detection module (ARC-DMOD-3SL) Mobile Light Sensor (ARC-SM) Fiber Optic Line Sensor (ARC-SL) Table 2 .1: Simple system – Components ARCON 3G MANUAL MN026015EN October 2020 www.eaton.com...

  • Page 16: Constellation

    Detection modules depending on project requirements. The example of Simple system constellation is shown on the following picture: Figure 2.2 Simple system – Constellation INTERLINK must be connected properly, otherwise devices can get damaged! ARCON 3G MANUAL MN026015EN October 2020 www.eaton.com...

  • Page 17: Master Lite

    The power connector is used to power the entire Simple system topology, master itself and all connected Detection modules via INTERLINK (RJ45 connector on the top side). Figure 2.3 Master LITE – Power connector ARCON 3G MANUAL MN026015EN October 2020 www.eaton.com...
  • Page 18 The Master LITE has two LEDs on the front plate: SYSTEM • TRIP • More details regarding the LEDs operating are available in chapter “2.7 Events & Alarms” Figure 2.4 Master LITE – LEDs ARCON 3G MANUAL MN026015EN October 2020 www.eaton.com...
  • Page 19 Also, if all system errors and trips are acknowledged the display is turned off. There are two types of events which require acknowledgment in the normal operation mode: System error • TRIP • ARCON 3G MANUAL MN026015EN October 2020 www.eaton.com...
  • Page 20 Then release the ACK button and all possible alarms will be acknowledged. • ote: An alarm can be acknowledged only if its source is already deactivated. XX = EVENT NUMBER XX = MODULE ADDRESS XX = SENSOR NUMBER ARCON 3G MANUAL MN026015EN October 2020 www.eaton.com...
  • Page 21 The WD output is working as normally closed contact (NC) and will become active (open contact) if an system error alarm “E.xx” (xx = event number) is detected or the power supply is off (please see chapter 2.7 Events & Alarms). ARCON 3G MANUAL MN026015EN October 2020 www.eaton.com...
  • Page 22 INTERLINK communication. The max. between the Master LITE and the last connected module is 100m.A standard Ethernet cable CAT 6A shall be used (pin assignment 1:1). Figure 2.7 Master LITE – Communication interface xx = MODULE ADDRESS xx = SENSOR NUMBER ARCON 3G MANUAL MN026015EN October 2020 www.eaton.com...

  • Page 23: Detection Module

    The configuration file will be permanently saved in non-volatile memory. If the constellation should be changed, the configuration process must be performed again. The system doesn’t support any hot-plugging function! ote: ARCON 3G MANUAL MN026015EN October 2020 www.eaton.com...

  • Page 24: Normal Operation Mode

    If a module detects light the master will activate the trip and alarm relay outputs. The trip must be acknowledged by using internal HMI interface. After acknowledging the relay outputs will be deactivated again. ARCON 3G MANUAL MN026015EN October 2020 www.eaton.com...

  • Page 25: Events & Alarms

    CONFIGURATION MISSING OPEN Red / 2Hz FAULTY LIGHT DETECTION OPEN Red / 2Hz OVERHEAT OPEN Red / 2Hz ALARM LIST OVERFLOW OPEN Red / 2Hz Table 2 .2: Simple system – Events & Alarms ARCON 3G MANUAL MN026015EN October 2020 www.eaton.com...

  • Page 26: Troubleshooting Alarms

    There is no more space for alarms in the to acknowledge alarm “E.53”. Alarm list. Info: The alarm list can store up to 100 alarms. Table 2 .3: Simple system – Troubleshooting alarm ARCON 3G MANUAL MN026015EN October 2020 www.eaton.com...

  • Page 27: Extended System With Arc-Main-3G Master

    Optional connection of ARC-TMOD-1QD to trip external quenching device (ARC-AT) • Optional connection of ARC-MAIN-HMI for user-friendly display and control interface • Optional MASTERLINK communication between up to 5 Extended systems • Figure 3.1 Extended system – Block diagram ARCON 3G MANUAL MN026015EN October 2020 www.eaton.com...

  • Page 28: Components

    ARCON 3G Components Description Picture Master MAIN (ARC-MAIN-3G) Detection module (ARC-DMOD-3SL) Display (ARC-MAIN-HMI) Tripping module (ARC-TMOD-1QD) ARCON 3G MANUAL MN026015EN October 2020 www.eaton.com...
  • Page 29 ARCON 3G Description Picture Arc Quenching Device (ARC-AT) Mobile Light Sensor (ARC-SM) Fiber Optic Line Sensor (ARC-SL) Table 3 .1: Extended system – Component ARCON 3G MANUAL MN026015EN October 2020 www.eaton.com...

  • Page 30: Constellation

    Optional MASTERLINK communication between up to 5 Extended systems. • The example of Extended system constellation is shown on the following picture: Figure 3.2 Extended system – Constellation INTERLINK must be connected properly, otherwise devices can get damaged! ARCON 3G MANUAL MN026015EN October 2020 www.eaton.com...

  • Page 31: Master Main

    Power connector The power connector is used to power the Master MAIN itself and all connected modules on the INTERLINK (RJ45 connector on the top side). Figure 3.3 Master MAIN – Power connector ARCON 3G MANUAL MN026015EN October 2020 www.eaton.com...
  • Page 32 Figure 3.4 Master MAIN – LEDs Master MAIN supports 2 types of HMI: Internal HMI -> 3x15 segments display and two buttons INFO and ACK • External HMI -> touchscreen display on ARC-MAIN-HMI • ARCON 3G MANUAL MN026015EN October 2020 www.eaton.com...
  • Page 33 When user releases INFO button the trip code is shown again. User can acknowledge the displayed trip by pressing ACK button. XX = EVENT NUMBER XX = MODULE ADDRESS XX = SENSOR NUMBER ARCON 3G MANUAL MN026015EN October 2020 www.eaton.com...
  • Page 34 The WD output is working as normally closed contact (NC) and will become active (open contact) if an system error alarm “E.xx” (xx = event number) is detected or the power supply is off (please see chapter 3.11 Events & Alarms). ARCON 3G MANUAL MN026015EN October 2020 www.eaton.com...
  • Page 35 The power has no impact on the arc detection. The purpose of power calculation is to show power values on the display unit. List of calculated power values: Active Power P [kW] • Reactive Power Q [kvar] • cos �� Apparent Power S [kVA] • • ARCON 3G MANUAL MN026015EN October 2020 www.eaton.com...
  • Page 36 CAT 6A Ethernet-cable (pin assignment 1:1) shall be used. ote: It can be used only when the current criteria is enabled, otherwise (only light criteria) the Tripping module will not be activated. ARCON 3G MANUAL MN026015EN October 2020 www.eaton.com...

  • Page 37: Detection Module

    For the case that sensors are enabled by parameter LEDs have following states: SYSTEM LED: SENSOR LED: Orange Not in operation Orange Wire fault • • System alarm Trip • • Green In operation Green In operation • • De-energized Deactivated • • ARCON 3G MANUAL MN026015EN October 2020 www.eaton.com...

  • Page 38: Tripping Module

    Tripping module will not be sent. Figure 3.10 Extended system – Tripping module RUN LED: TRIP LED: Green 1Hz Ready for ignition command Trip state NOT ready No trip ARCON 3G MANUAL MN026015EN October 2020 www.eaton.com...

  • Page 39: Quenching Device

    With regard to the lifespan of the pyrotechnic actuators it is recommended that the quenching device (ARC-AT) is to be replaced after 15 years of service. The replacement of the quenching device can be done by Eaton After Sales Service or any licensed Eaton panel builder, who has special training in handling pyrotechnical equipment and are authorized to conduct this kind of operation.

  • Page 40: Display / External Hmi

    Display / External HMI The user navigates through the menu using the resistive touchscreen. The large graphic display allows the user to view all important data briefly. Figure 3.12 Display / External HMI ARCON 3G MANUAL MN026015EN October 2020 www.eaton.com...
  • Page 41 If the display module is turned on but not connected with Master MAIN or parameter for display is not enabled, then following text will be shown: Figure 3.13 Display / External HMI – Display not connected ARCON 3G MANUAL MN026015EN October 2020 www.eaton.com...
  • Page 42 A list box shows all modules and sensors which are placed in the selected section. For more information about modules and sensors the user can click on the relevant part. ARCON 3G MANUAL MN026015EN October 2020 www.eaton.com...
  • Page 43 Figure 3.15 Display / External HMI – Section info Module info page for master Module info page for master contains following specific information. Figure 3.16 Display / External HMI – Module info page – Master ARCON 3G MANUAL MN026015EN October 2020 www.eaton.com...
  • Page 44 Module info page for Detection module contains following specific information Figure 3.17 Display – Module info page – Detection module Sensor info page for Line sensor Sensor info page contains following specific information. Figure 3.18 Display – Module info page – Sensor ARCON 3G MANUAL MN026015EN October 2020 www.eaton.com...
  • Page 45 From Main page it is possible to open Metering page which contains following data: Figure 3.19 Display – Metering Menu The “Main Menu” appears when user clicks on the “Menu” button Figure 3.20 Display – Main Menu page ARCON 3G MANUAL MN026015EN October 2020 www.eaton.com...

  • Page 46: Table 3-2 Display - Alarm Table Structure

    Event number Event Event text Section Affected section (Section name) Module Affected module address Sensor Affected sensor address Table 3 .2: Display – Alarm table structure Figure 3.21 Display – Alarms page I ARCON 3G MANUAL MN026015EN October 2020 www.eaton.com...
  • Page 47 Also, user can acknowledge an alarm using hardware ACK button on the master module. Holding ACK button longer than 2s all alarms will be acknowledged if trigger conditions are false. ARCON 3G MANUAL MN026015EN October 2020 www.eaton.com...

  • Page 48: Table 3-3 Display - Event Logger Table Structure

    Date Time Time Section Affected section (Section name) Module Affected module address Sensor Affected sensor address Table 3 .3: Display – Event logger table structure Figure 3.24 Display – Event logger page I ARCON 3G MANUAL MN026015EN October 2020 www.eaton.com...
  • Page 49 In the displayed event list active events are highlighted green and inactive events are represented with grey background colour. The Event logger is part of “Tools” in the APPT. See chapter “3.8.5 Tools” . ARCON 3G MANUAL MN026015EN October 2020 www.eaton.com...

  • Page 50: Table 3-4 Display - Parameter Change Log Table Structure

    Parameter change log entries are recorded with a temporal resolution of 1 ms and will be displayed in chronological order. The latest parameter change log entry is on the top of the parameter change log list. ARCON 3G MANUAL MN026015EN October 2020 www.eaton.com...
  • Page 51 “Section x/Name” by clicking on row a new window will be opened and parameter value will be displayed. Figure 3.28 Display – Parameter change log - additional page The Parameter change log is part of “Tools” in the APPT. ARCON 3G MANUAL MN026015EN October 2020 www.eaton.com...
  • Page 52 The display module provides possibility for users to view and edit parameters. Here is the root path of parameter structure: Figure 3.29 Display – Parameters page I Parameters are displayed as follows: Figure 3.30 Display – Parameters page II ARCON 3G MANUAL MN026015EN October 2020 www.eaton.com...
  • Page 53 Figure 3.31 Display – Parameter edit page I When the user browses through the parameters in edit mode, it’s possible to edit the parameters in different variations as follows: Figure 3.32 Display – Parameter edit page II ARCON 3G MANUAL MN026015EN October 2020 www.eaton.com...
  • Page 54 Figure 3.33 Display – Parameter edit page III Figure 3.34 Display – Parameter edit page IV Any modification of parameter setting will be highlighted by “*” symbol in column “No. ” and background colour for page title will be red. ARCON 3G MANUAL MN026015EN October 2020 www.eaton.com...
  • Page 55 “Apply” or “Discard” , “Main” page will be displayed. By pressing the “Cancel” button the user gets back to the parameters section and no changes will be saved. Figure 3.36 Display – Parameter edit page VI ARCON 3G MANUAL MN026015EN October 2020 www.eaton.com...
  • Page 56 ARCON 3G If user presses button “Apply” device perform software system restart. Figure 3.37 Display – Parameter edit page VII ARCON 3G MANUAL MN026015EN October 2020 www.eaton.com...
  • Page 57 The Master MAIN uses UTC time format. Date: Day / Month / Year • Time: Hour / Minute / Second / Millisecond • Zone: Time zone • DST - Daylight Saving Time • ARCON 3G MANUAL MN026015EN October 2020 www.eaton.com...
  • Page 58 Time and date can be set by: 1. Display unit (External HMI) 2. Parameter tool (APPT) Figure 3.39 Display – Display settings page Languages Following languages are available: German, English, French and Spanish ARCON 3G MANUAL MN026015EN October 2020 www.eaton.com...
  • Page 59 “Parameters/SECURITY” , parameter name is “Timeout” . Figure 3.40 Display – Chage user level page Down in left corner the small symbol “Key” indicates activation of protected user mode. Figure 3.41 Display – Protected user mode ARCON 3G MANUAL MN026015EN October 2020 www.eaton.com...
  • Page 60 Background colour of hotkey lower half (Button Bottom) • Background colour of hotkey upper half (Button Top) • Text colour of Hotkeys (Button Text) • Figure 3.42 Display – Button colours page ARCON 3G MANUAL MN026015EN October 2020 www.eaton.com...
  • Page 61 The “Info” page provides information about hardware, firmware and files.This information is stored in General Information File (GIF). Figure 3.43 Display – System information page I Figure 3.44 Display – System information page II ARCON 3G MANUAL MN026015EN October 2020 www.eaton.com...
  • Page 62 ARCON 3G Dragging The width of the header items can be managed by dragging the dividers. Figure 3.45 Display – Dragging the dividers I Figure 3.46 Display – Dragging the dividers II ARCON 3G MANUAL MN026015EN October 2020 www.eaton.com...

  • Page 63: Arc Protection Parameter Tool (Appt)

    PC and the Master MAIN. APPT requires minimum Windows 7 operating system and NET Framework 4.5. Figure 3.47 APPT – Main window Application consists of 5 parts: 6. Main Menu 7. Toolstrip bar (icons) 8. Tree view navigation 9. Working area 10. Application state ARCON 3G MANUAL MN026015EN October 2020 www.eaton.com...
  • Page 64 Export to PDF • Exports the project as PDF File. Project info • Open the window like Create New Project window, the user can change the project data. Exit • Exit the application. ARCON 3G MANUAL MN026015EN October 2020 www.eaton.com...
  • Page 65 The form that collects the name and the description of the node could look like following one: Figure 3.50 APPT – Add substation ARCON 3G MANUAL MN026015EN October 2020 www.eaton.com...
  • Page 66 Figure 3.51 APPT – Add device Copy & Paste • Selected devices and substations can be copied and pasted. Delete • Deletes the item selected by user (only substation or device). Modify • Modifies selected item ARCON 3G MANUAL MN026015EN October 2020 www.eaton.com...
  • Page 67 APPT reads following device files: GIF and UPF Write to device APPT writes the UPF (file) to the device. • Tools The Tools sub-menu contains two items: Figure 3.53 APPT – Tools sub-menu ARCON 3G MANUAL MN026015EN October 2020 www.eaton.com...
  • Page 68 Event logger window.User will be able to observe the following parameters: Order number • Parameter number • Description • Date • Time • Old value • New value • Unit • Figure 3.55 APPT – Parameter change log ARCON 3G MANUAL MN026015EN October 2020 www.eaton.com...
  • Page 69 • Save • Export to PDF • • Delete • About • The function of any of these buttons is the same as the function of the corresponding items in the Main menu. ARCON 3G MANUAL MN026015EN October 2020 www.eaton.com...
  • Page 70 In this area parameters are displayed with their names, Parameter-Number (P-No), values and units. Values of parameters can be edited in this area. Application state This area is reserved for status bar. Status bar gives information about operation mode of application. ARCON 3G MANUAL MN026015EN October 2020 www.eaton.com...

  • Page 71: Parameterization

    2. All changed parameters, old and new values, will be written in the PCL file. 3. Master MAIN restarts and initializes the system Parameters Master MAIN requires User Parameter File (UPF) for correct function. UPF file contains user parameters which are described on the next pages: ARCON 3G MANUAL MN026015EN October 2020 www.eaton.com...
  • Page 72 … … … Module 32 Type ARC-DMOD-3SL Type of 31st sensor`s module Section no. (Module) 1…32 Number of sections in which module is placed Sensor 1 Disable / Enable State of sensor 1 ARCON 3G MANUAL MN026015EN October 2020 www.eaton.com...

  • Page 73: Table 3-5 Extended System - Upf Parameters

    Enables user protected operation mode Password 10000…99999 Password for user protected operation mode Timeout 60…65535 s Timeout for staying in the user protected operation mode Table 3 .5: Extended system – UPF parameters ARCON 3G MANUAL MN026015EN October 2020 www.eaton.com...

  • Page 74: Events & Alarms

    Manufacture parameter file (MPF) missing or corrupted. PARAMETER CHANGED Parameter change detected. USER MODE Entering into user mode. PROTECTED MODE Entering into password protected mode. MANUFACTURER MODE Entering into manufacturer mode. ICOM ERROR iCOM communication error. (CAN bus error). ARCON 3G MANUAL MN026015EN October 2020 www.eaton.com...
  • Page 75 Red / 2Hz OPEN Red / 2Hz OPEN Red / 2Hz OPEN Red / 2Hz OPEN Red / 2Hz OPEN Red / 2Hz OPEN Red / 2Hz OPEN Red / 2Hz OPEN Red / 2Hz ARCON 3G MANUAL MN026015EN October 2020 www.eaton.com...
  • Page 76 GU: PARAMETER ERROR Parameter file missing or corrupted on the HMI. ALARM LIST OVERFLOW There is no more space for alarms in the Alarm list. Table 3 .6: Extended system – Events & Alarm ARCON 3G MANUAL MN026015EN October 2020 www.eaton.com...
  • Page 77 Red / 2Hz OPENED Red / 2Hz OPENED Red / 2Hz OPENED Red / 2Hz OPENED Red / 2Hz OPENED Red / 2Hz OPENED Red / 2Hz OPENED Red / 2Hz OPENED Red / 2Hz ARCON 3G MANUAL MN026015EN October 2020 www.eaton.com...

  • Page 78: Troubleshooting Alarms

    Check parameter P2185 and connect or disconnect HMI accordingly. E.32 iCOM compatibility error iCOM version of the HMI is not compatible with version Replace the HMI with compatible firmware version. supported by master. ARCON 3G MANUAL MN026015EN October 2020 www.eaton.com...

  • Page 79: Table 3-7 Extended System - Troubleshooting Alarms

    There is no more space for alarms in the Alarm list. be possible to acknowledge alarm “E.53”. Info: The alarm list can store up to 100 alarms Table 3 .7: Extended system – Troubleshooting alarms ARCON 3G MANUAL MN026015EN October 2020 www.eaton.com...

  • Page 80: Normal Operation Mode

    The MPF contains all manufacturer parameters, user is not able to see MPF . User Parameter File (UPF) The UPF contains all user parameters. User can see UPF in the parameter section on the external HMI display or in the parameter tool. ARCON 3G MANUAL MN026015EN October 2020 www.eaton.com...

  • Page 81: Operation Modes (Security)

    Password is using PIN in the range from 10000-99999 (P-No. 2221). The timeout timer (P-No. 2225) is reset after each user input after the set time (60…65535s). The password can be always changed by APPT software. ARCON 3G MANUAL MN026015EN October 2020 www.eaton.com...

  • Page 82: Complex System With Up To Five Arc-Main-3G Master Units

    TRIP state, including Tripping module (if configured). Constellation An example of Complex system is shown on the following picture. The example shows connection of 3 Extended systems in an overall Complex system. Figure 4.1 Complex system – Constellation ARCON 3G MANUAL MN026015EN October 2020 www.eaton.com...

  • Page 83: Masterlink

    Figure 4.2 Complex system – MASTERLINK line topology Ring This is a redundant Ethernet connection. If a connection between two modules gets lost the system still operate. Figure 4.3 Complex system – MASTERLINK ring topology ARCON 3G MANUAL MN026015EN October 2020 www.eaton.com...

  • Page 84: Technical Data

    20g, 16ms, 1000 shocks per dir. Vibration Sinusoidal Response EN 60068-2-6:2008, Class II 1-35Hz, 1g in Z- and 2g in X-axis Vibration Sinusoidal Endurance EN 60068-2-6:2008, Class II 10-150Hz, 20m/s² Table 5 .3: Mechanical tests ARCON 3G MANUAL MN026015EN October 2020 www.eaton.com...

  • Page 85: Table 5-4 Environmental Tests

    EN60068-2-14:2009, Test Nb -40°C/+70°C, 50h, Off Table 5 .4: Environmental tests Environmental conditions Specified ambient service temperature range -40…+70°C Transport and storage temperature range -40…+70°C Relative humidity Up to 95% Table 5 .5: Environmental conditions ARCON 3G MANUAL MN026015EN October 2020 www.eaton.com...

  • Page 86: Arc-Lite-3G

    Table 5 .7: Power supply Push buttons Description Specification INFO-Button Get detailed information for an Error-Code shown in the STATUS-Display ACK-Button Acknowledge the currently displayed Error-Code shown in the STATUS-Display Table 5 .8: Push Buttons ARCON 3G MANUAL MN026015EN October 2020 www.eaton.com...

  • Page 87: Table 5-9 Trip Outputs

    ARC-Protection TRIP detected (steady) Table 5 .11: Indications LEDs Status display Designation Color Specification STATUS Normal operation mode e.g. Error code, see error code table for detailed information “E.18” Table 5 .12: Status display ARCON 3G MANUAL MN026015EN October 2020 www.eaton.com...

  • Page 88: Table 5-13 Communication

    Max. no. of modules connected to 31 pcs. INTERLINK * For failure-free operation use the included RJ45 terminator at the last INTERLINK connected module * For internal board-to-board communication only! Table 5 .13: Communication ARCON 3G MANUAL MN026015EN October 2020 www.eaton.com...

  • Page 89: Arc-Main-3G

    Table 5 .15: Power supply Push buttons Description Specification INFO-Button Get detailed information for an Error-Code shown in the STATUS-Display ACK-Button Acknowledge the currently displayed Error-Code shown in the STATUS-Display Table 5 .16: Push Buttons ARCON 3G MANUAL MN026015EN October 2020 www.eaton.com...

  • Page 90: Table 5-17 Current Measurement

    1s for 2kV Name of connector Cross section 1,0 mm² … 6,0 mm² * Environmental temperature: 25°C; humidity: non-condensing; device at steady operation at nominal values Table 5 .18: Voltage measurement ARCON 3G MANUAL MN026015EN October 2020 www.eaton.com...

  • Page 91: Table 5-19 Trip Outputs

    ARC-Protection TRIP detected (steady) Table 5 .21: Indication LEDs Status display Designation Color Specification STATUS Normal operation mode e.g. Error code, see error code table for detailed information “E.18” Table 5 .22: Status display ARCON 3G MANUAL MN026015EN October 2020 www.eaton.com...

  • Page 92: Table 5-23 Interlink

    Data protocol Description Specification* IGNITION PORT Interface: mini USB (standard) Location: front of housing Terminals: “USB” Transmission distance: max. 5m Max. no. of modules connected 1 pc. to USB Table 5 .27: USB interface ARCON 3G MANUAL MN026015EN October 2020 www.eaton.com...

  • Page 93: Arc-Dmod-3Sl

    Table 5 .29: Line Sensor Mobile light sensor (MLS) Description Specification* Max. no. of MLS 1 pc. ARC-SM Type of MLS Interface: RJ9 4p4c Name of connector Table 5 .30: Mobile light sensor (MLS) ARCON 3G MANUAL MN026015EN October 2020 www.eaton.com...

  • Page 94: Table 5-31 Indication Leds

    ARCON 3G module)* Transmission distance: max. 100m Max. no. of modules connected to 31 pcs. INTERLINK * For failure-free operation use the included RJ45 terminator at the last INTERLINK connected module Table 5 .32: INTERLINK ARCON 3G MANUAL MN026015EN October 2020 www.eaton.com...

  • Page 95: Arc-Tmod-1Qd

    Power supply Description Specification* Power Supply 24V DC ±20% < 2W Power consumption max 4A; “T-type” External fuse Name of connector Cross section 0,5 mm² … 2,5 mm² Table 5 .34: Power supply ARCON 3G MANUAL MN026015EN October 2020 www.eaton.com...

  • Page 96: Table 5-35 Ignition Circuits

    Location: “OUT“ (IGNITION PORT to the next Terminals: connected Tripping module) Transmission distance: max. 10m Max. no. of modules connected to 1 pc. IGNITION PORT Table 5 .37: IGNITION PORT ARCON 3G MANUAL MN026015EN October 2020 www.eaton.com...

  • Page 97: Arc-Main-Hmi

    Terminals: module)* Transmission distance: max. 40m Max. no. of modules connected to 1 pc. iCOM *for failure-free operation use the included RJ45 terminator at the last iCOM connected module. Table 5 .40: iCOM ARCON 3G MANUAL MN026015EN October 2020 www.eaton.com...

  • Page 98: Glossary

    Mobile Light Sensor (ARC-SM) Manufacturer Parameter File Parameter Change Log RJ45 Registered Jack 45 Root Mean Square APPT Arc Protection Parameter Tool Universal Serial Bus Coordinated Universal Time Watch Dog Wire Fault Table 6 .1: Glossary ARCON 3G MANUAL MN026015EN October 2020 www.eaton.com...

  • Page 99: List Of Tables

    TABLE 5-22 STATUS DISPLAY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90 ARCON 3G MANUAL MN026015EN October 2020 www.eaton.com...
  • Page 100 TABLE 6-1 GLOSSARY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 98 ARCON 3G MANUAL MN026015EN October 2020 www.eaton.com...
  • Page 101 AND WITHOUT ARC PROTECTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 FIGURE 1 .3 ARCON 3G SIMPLE ARC PROTECTION SYSTEM . . . . . . . . . . . . . 7 FIGURE 1 .4 ARCON 3G EXTENDED ARC PROTECTION SYSTEM .
  • Page 102 FIGURE 3 .45 DISPLAY – DRAGGING THE DIVIDERS I . . . . . . . . . . . . . . . . . . 59 ARCON 3G MANUAL MN026015EN October 2020 www.eaton.com...
  • Page 103 FIGURE 5 .5 ARC-MAIN-HMI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96 ARCON 3G MANUAL MN026015EN October 2020 www.eaton.com...
  • Page 104 Eaton is binding. Photos and pictures also do not warrant a specific layout or functionality. Their use in whatever form is subject to prior approval by Eaton. The same applies to trademarks (especially Eaton, Moeller, and Cutler-Hammer). The Terms and Conditions of Eaton apply, as referenced on Eaton Internet pages and Eaton order confirmations.
