Picture in Picture Functions

The HDTV UpConverter supports Picture in Picture capabilities. This allows you to have 2
or more windows on the TV screen at the same time allowing you to, for example, watch a
movie in the main portion of the screen and tune a TV channel in the PiP window. TV Input is
the default source for the PiP Window, but you can change the PiP source.
See Menu Functions and Appendix B – Main/Pip Selection Chart.

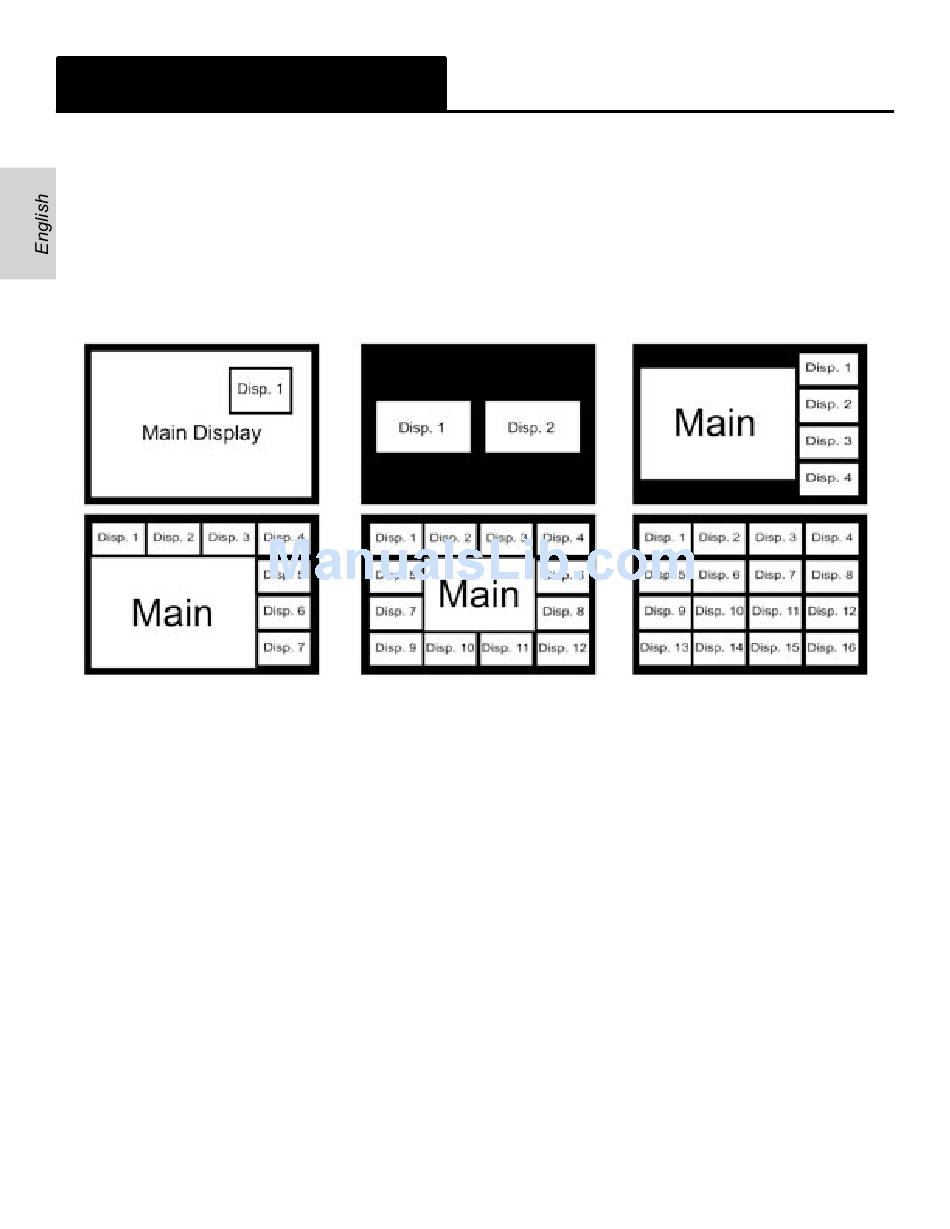

PiP Window Examples
PiP Button – Press the PIP button to open a Single PiP window.
Single PiP Window positions– Press the Left or Right buttons to cycle through Single PiP
window locations.
PIP Mode Button – Press the PIP Mode button to cycle through several PiP modes (Single,
Side by Side, Main + 4, Main + 12, 16 tiled windows). *(Main+12 and 16 Tiled can only be
viewed at 1080i resolution)
TV as the PiP Input – When the TV tuner is selected as the PiP input you can have up to 16
PiP TV Channels Auto-Fill into the multiple PiP window modes. Select your 16 PiP window
channels in the TV Channel Setup Menu. When you enter a PiP mode that has multiple PiP
windows, your PiP TV channels will automatically fill into these windows.
Pause PiP Window Fill – To pause the cycling of PiP windows with TV channels. Press the
PiP button.
When in PiP Pause mode you can:
1.) Use the Up/Down buttons to tune to a different channel or you can use the number keys to
tune to any specific TV channel.
2.) Use the Left/Right buttons to move left or right to make that channel the active PiP
window.
Changing the Pip Window to the Main Video Window - If you have selected a PiP Window
and want that to fill your TV screen, Press "0" + "View Mode"
HDTV UpConverter 20
