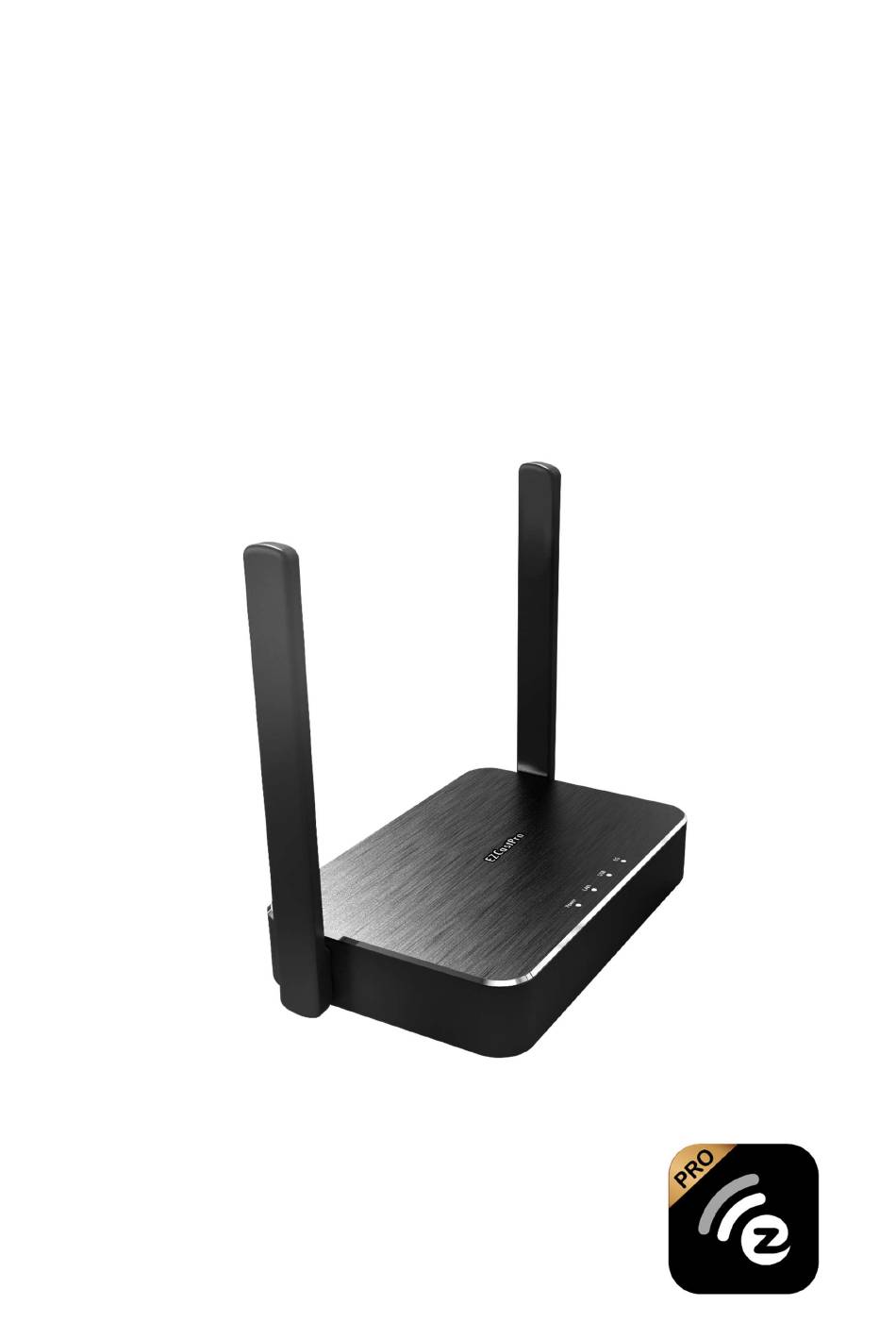

EZCast Pro Box II
Advanced Web Setting Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Box II and is the answer not in the manual?

Questions and answers

Related Manuals for EZCast Pro Box II

Summary of Contents for EZCast Pro Box II

  • Page 1 EZCast Pro Box II Advanced Web Setting Manual...

  • Page 2: Table Of Contents

    Index Introduction ..................5 Link Status ............... 11 Conference Control ..........12 Device Management ..........13 Language ..............13 Device Name ............. 13 Resolution: ..............14 Display mode: ............14 AirPlay mode: ............15 AirView ............... 15 EZNote: ..............16 Castcode control: ............
  • Page 3 Legacy Wi-Fi mode ..........18 3.13 Network Management ..........19 Connect to 5GHz Wireless Access Point ....19 Remember Wi-Fi ............19 Wi-Fi IP Setting............20 LAN IP Setting: ............20 Wi-Fi Password: ............21 Wi-Fi Channel: ............21 Admin Setting ............
  • Page 4 OTA URL ..............29 Connection: ............... 29 5.10 Fixed host: ..............30 5.11 Upgrade: ..............30 5.12 Reset to default: ............32 5.13 Reboot ............... 33 About ................. 33...

  • Page 5: Introduction

    Thank you for choosing EZCast Pro Box II, the most advanced casting equipment powered by EZCast Pro. EZCast Pro Box II can support up to four mobile devices as input sources, casting the screen content to one external screen simultaneously. Also, EZCast Pro Box II supports Windows, macOS, Android, and iOS, to truly realize the idea of BYOD.
  • Page 6 Direct Connection, Through Wi-Fi or Through Router. Connect via Direct Connection 1.1 Connect EZCast Pro Box II to an external USB power supply. 1.2 Connect EZCast Pro Box II to an external display via HDMI port. 1.3 Once the EZCast Pro Box II is successfully connected, the...
  • Page 7 SSID and Password. 1.5 Find the SSID on the connecting devices’ Wi-Fi list and enter the password to connect to EZCast Pro Box II. 1.6 Once the connection is established, enter the IP address on the bottom left corner of the landing page to your browser’s URL bar.
  • Page 8 2.2 Enter the IP address on the bottom left corner of the landing page to your browser’s URL bar. Please be advised that EZCast Pro Box II and the connecting device must connect to the same network. (Since you have connected...
  • Page 9 Web Setting Home Page EZCast Pro Box II provides two levels of access: Non-Admin and Admin. Please log in as administrator for higher level of access. 1 EZCast Pro Box II Settings 1.1 Non-Admin User Basic access to Link Status and About.
  • Page 10 Login as Admin 1.1 Login as the administrator using your passwords. The defualt password is 000000. 1.2 For better security, please change the password after login.

  • Page 11: Link Status

    Displays current link status of EZCast Pro Box II, including device names, device IP addresses.  Host: The first device connecting to EZCast Pro Box II will be assigned as host. The host user can decide whether a guest user has access to cast via EZCast Pro Box II.

  • Page 12: Conference Control

    Conference Control With conference control, admin user can assign each device to specific locations on the external monitor. Block Casting Full Screen Left Half Right Half Upper Left Upper Right Bottom Left Bottom Right...

  • Page 13: Device Management

    Device Management Please see Device Manage for the options to configure Language, Resolution, Max Connections, etc. 3.1 Language: Please select the applicable language. 3.2 Device Name: Rename, hide or turn off SSID. 3.2.1 Hide SSID: Hide SSID from the landing page.

  • Page 14: Resolution

    3.3 Resolution: Please select the applicable resolution for your usage. EZCast Pro Box II supports up to 4K at 24P frame rate, while the defaults output resolution is 1920 x 1080_60P. 3.4 Display mode: EZCast Pro Box II supports the following Display modes: 3.4.1 Fit to screen:...

  • Page 15: Airplay Mode

    Supports screen mirror mode only. 3.5.4 Screen Mirror + Video Streaming: Supports both mirror and streaming. 3.6 AirView: Allows users to receive EZCast Pro Box II output on their connected devices. 3.6.1 AirView ON: Turn on AirView. 3.6.2 AirView OFF: Turn off Airview.

  • Page 16: Eznote

    3.7 EZNote: Users could take note on EZCast Pro app. 3.8 Castcode control: Use Castcode to prevent unauthorized casting. 3.8.1 OFF: Deactivate Castcode. 3.8.2 Random: Random generated Castcode 3.8.3 Fixed: Set fixed Castcode. 3.9 Max Connections: Please select the applicable maximum connections for your usage.

  • Page 17: Android Audio Streaming

    Please be advised that the default setting of Android audio streaming is OFF. 3.11 ChromeCast: Direct casting via Chromecast for Android, Chrome browser. Please be advised that when casting via Chromecast, the EZCast Pro Box II must connect to the internet.

  • Page 18: Miracast

    Users won’t need to enter PIN Code for Miracast connections. 3.13 Legacy Wi-Fi mode: Enable user to connect EZCast Pro Box II to legacy wireless Wi-Fi routers. Please be advised that the default setting of Legacy Wi-Fi mode is OFF.

  • Page 19: Network Management

    Network Management Connect EZCast Pro Box II to the internet via external Wi-Fi. For security reasons, please make sure that the Wi-Fi you wish to connect is 5GHz and encrypted. 4.1 Connect to 5GHz Wireless Access Point: Once the device is connected to EZCast Pro Box II, enter the Wi-Fi password to connect to the external Wi-Fi.

  • Page 20: Wi-Fi Ip Setting

    4.3 Wi-Fi IP Setting: Configure Wi-Fi network, including IP address, Gateway, Netmask, DNS, etc. 4.4 LAN IP Setting: Configure LAN network, including IP address, Gateway, Netmask, DNS, etc.

  • Page 21: Wi-Fi Password

    Change or hide the Wi-Fi connection password on the landing page. 4.6 Wi-Fi Channel: Set up EZCast Pro Box II’s Wi-Fi Channel. Please be advised that users cannot configure the Wi-Fi Channel while EZCast Pro Box II is connected to external internet. 4.6.1 Country: Please select the applicable...

  • Page 22: Admin Setting

    Admin Setting Admin Setting allows individuals with higher access to customize EZCast Pro Box II’s network and features. 5.1 Admin Password: Change the Admin password for better security. 5.2 Wi-Fi Enterprise: Available for higher level of access authorization to upload...

  • Page 23: Host Authority

    5.3.1 Conference Control: Allows host to assign guest to specific casting block. 5.3.2 Device manager control: Allows host to configure EZCast Pro Box II’s device configuration. 5.3.3 Network setup control: Allows host to configure EZCast Pro Box II’s network. 5.3.4...

  • Page 24: Internet Access Control

    5.5.3 All denied: Prohibit all devices to get internet access. 5.6 SNMP: Network admin can integrate EZCast Pro Box II into the existing SNMP monitoring tool. Please be advised that EZCast Pro Box II supports SNMP v3 protocol.

  • Page 25: My Screen

    USB Disk. 5.8.4 Start after X mins: Set idle time before activating dynamic wallpaper. 5.8.5 Stop when any transmitter is connected: Stop dynamic wallpaper when a user connects to EZCast Pro Box II via EZCast Pro app.
  • Page 26 Stop when a transmitter starts to mirror: Stop dynamic wallpaper when a user is casting to dongle via EZCast Pro app. Please follow the steps below to activate dynamic wallpaper: Write a JSON file according to the sample code below.
  • Page 27 Deploy a web-accessible server. Please consult with your IT administrator. Or you could simply use USB Disk. iii. Save your JSON file to the web-accessible server or USB Disk that you created. Please make sure you name the JSON file “wallpaper_file”. Save the image and video files to the web-accessible server or USB Disk that you created.
  • Page 28 For users who store the JSON in the USB Disk, please make sure the JSON file is stored at the root folder of USB Disk: /media/usb0/wallpaper_file.json. Please note that you can not change this default path.

  • Page 29: Ota Url

    5.9 OTA URL: EZCast Pro Box II will check whether the OTA Server has deployed the latest firmware. Please be advised that the function is specifically designed for distributors, resellers, and users having trouble upgrading firmware via internet. For end users, you can upgrade EZCast Pro Box II via Upgrade.

  • Page 30: Fixed Host

    5.12 Upgrade: Upgrade your EZCast Pro Box II firmware to the latest version. Please make sure EZCast Pro Box II is connected to the internet during the entire process. Please follow the steps below to upgrade firmware: Check whether there is a newer version available. If you see “New Version available!”, please click it.
  • Page 31 You will see the local and server firmware versions. Please click “Upgrade”. iii. The upgrade process will start automatically. DO NOT remove the power of EZCast Pro Box II during the upgrade process.

  • Page 32: Reset To Default

    Please wait until the progress indicator shows 100%. EZCast Pro Box II will reboot once the upgrade process is finished. 5.13 Reset to default: Reset EZCast Pro Box II to factory default. Please note that all customized configurations will be reset.

  • Page 33: Reboot

    Reboot Reboot to apply setting changes. About Detail information of EZCast Pro Box II including SSID, Firmware Version, Wi-Fi Channel, etc.
