Summary of Contents for EZCast Pro WR02
- Page 1 (WR02/WT02) Quick Start Guide WR/ WT Full User Manual Rev 1.0...
- Page 2 Introduction 1. Modular design to assemble for Extender, Splitter, Matrix and Switcher for up to 15x15 applications. 2. Extends 4K 30P, 1080 60P HDMI signal up to 180m (600ft) over a single Cat5E cable, 100M Ethernet. 3. Use conventional Ethernet L2 Switch for extension and distribution, and can be cascaded by the L2 Ethernet switches for longer distance.

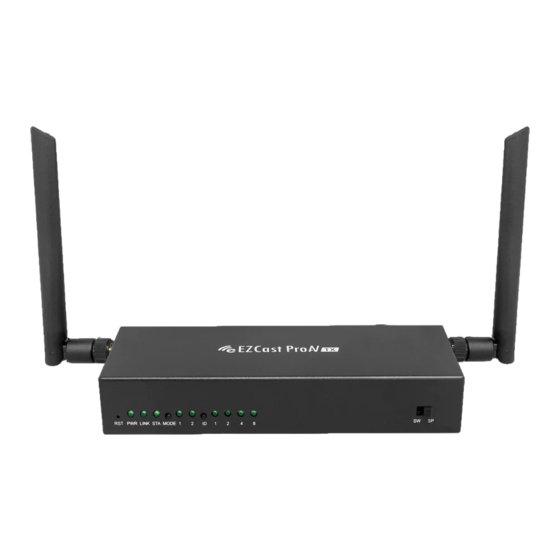

- Page 3 Hardware Overview for WR RJ45 DC IN HDMI OUT AUX OUT IR IN USB K/M RS232 9 10 11 12 13 14 15 17 18 LINK STA MODE 12ID1 S WSP 1. DC IN port: 12V/1A power supply is required. 2.
- Page 4 Hardware Overview for WT RJ45 DC IN HDMI OUT HDMI IN AUX IN IR OUT USB PC RS232 10 11 12 13 14 15 16 18 19 RST PWR LINK STA MODE 12ID1 S WSP 1. DC IN port: 12V/1A power supply is required. 2.
- Page 5 Hardware Installation for WR/ WT 1. Position the toggle switch to the same mode (SW/SP) on both WR and WT. 2. Connect power to 12V/1A and a monitor to display output on WR. 3. Connect WR and WT by the HDMI cable to pair. The STA signals keep flashing until pairing completed.
- Page 6 Central Management System Download Central Management System (CMS) to real-time monitor and efficiently operate all EZCast ProAV devices under the same network. For more information, please refer to our website: www.ezcast-pro.com or watch demo videos in our YouTube Channel (EZCast Pro).
- Page 7 FCC Caution: Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
- Page 8 guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna.
