EZCast Pro II
Advanced Web Setting Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the II and is the answer not in the manual?

Questions and answers

Related Manuals for EZCast Pro II

Summary of Contents for EZCast Pro II

  • Page 1 EZCast Pro II Advanced Web Setting Manual...

  • Page 2: Table Of Contents

    Index Introduction ..............5 Link Status ..........11 Conference Control ......... 12 Device Management ........ 13 Language ............ 13 Device Name ..........13 Resolution: ..........14 Display mode: ..........14 AirPlay mode: ..........15 AirView ............15 EZNote:............16 Castcode control: ........16 Max Connections: ........
  • Page 3 3.12 Miracast: ............18 Legacy Wi-Fi mode ........18 3.13 Network Management ......19 Connect to 5GHz Wireless Access Point: Remember Wi-Fi ........19 Wi-Fi IP Setting: ......... 20 Wi-Fi Password: ......... 20 Wi-Fi Channel: ..........21 Admin Setting ........... 22 Admin Password: ........
  • Page 4 Dynamic Wallpaper ........26 OTA URL ............. 29 Connection: ..........29 5.10 Fixed host: ........... 30 5.11 Upgrade: ............30 5.12 Reset to default: ......... 32 5.13 Reboot ............33 Reboot for all new configurations......33 About ............33...

  • Page 5: Introduction

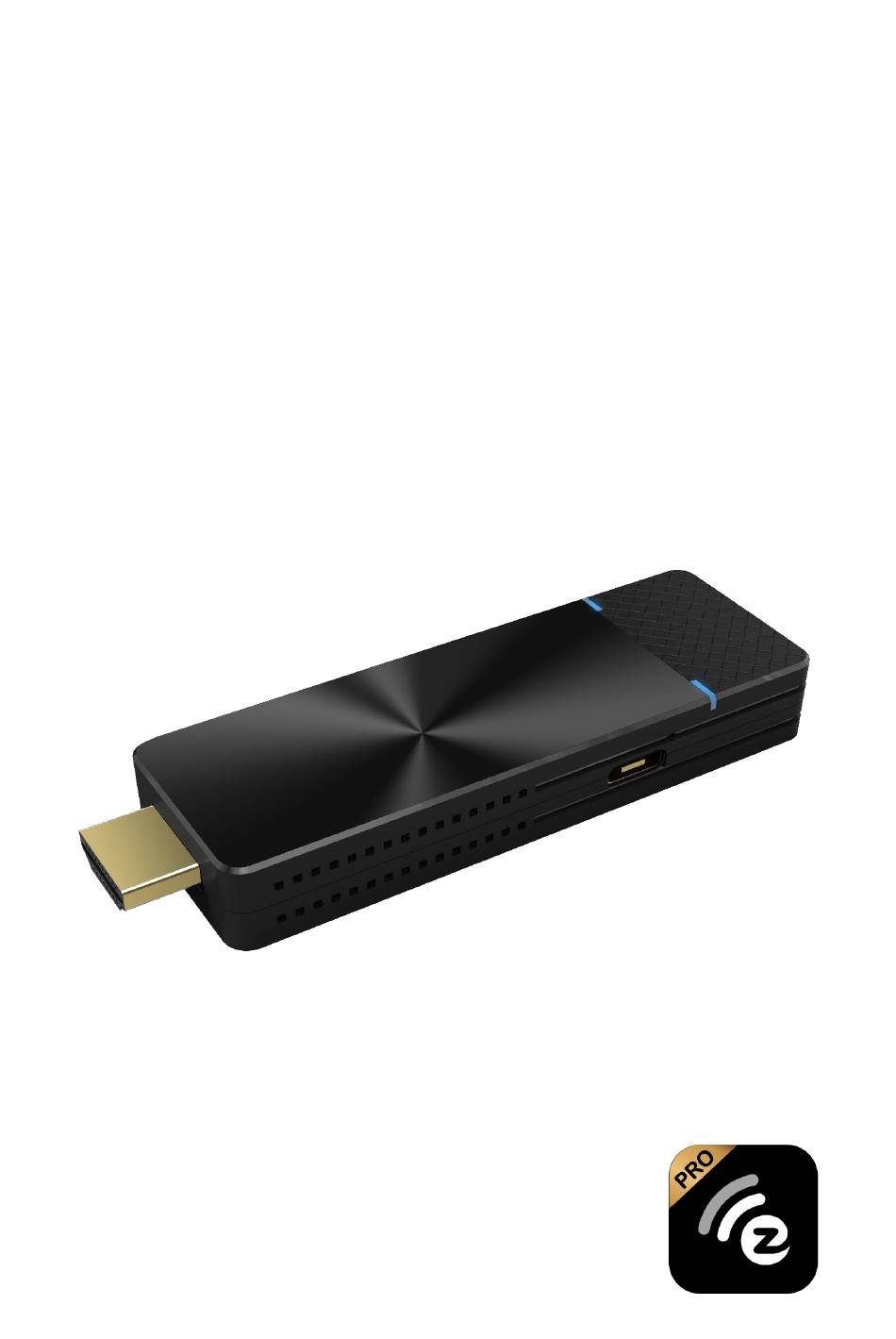

    Thank you for choosing EZCast Pro Dongle II, the most advanced casting equipment powered by EZCast Pro. EZCast Pro Dongle II can support up to four mobile devices as input sources, casting the screen content to one external screen simultaneously. Also, EZCast Pro Dongle II supports Windows, macOS, Android, and iOS, to truly realize the idea of BYOD.
  • Page 6 Direct Connection, Through Wi- Fi or Through Router. Connect via Direct Connection 1.1 Connect EZCast Pro Dongle II to an external USB power supply. 1.2 Connect EZCast Pro Dongle II to an external display via HDMI port.
  • Page 7 SSID and Password. 1.5 Find the SSID on the connecting devices’ Wi-Fi list and enter the password to connect to EZCast Pro Dongle II. 1.6 Once the connection is established, enter the IP address on the bottom left corner of the landing page to your browser’...
  • Page 8 2.2 Enter the IP address on the bottom left corner of the landing page to your browser’ s URL bar. Please be advised that EZCast Pro Dongle II and the connecting device must connect to the same network. (Since you have connected...
  • Page 9 Web Setting Home Page EZCast Pro Dongle II provides two levels of access: Non-Admin and Admin. Please log in as administrator for higher level of access. 1 EZCast Pro Dongle II Setting 1.1 Non-Admin User Basic access to Link Status and About.
  • Page 10 Login as Admin 1.1 1.1 Login as the administrator using your passwords. The 1.1 defualt password is 000000. 1.2 For better security, please change the password after login.

  • Page 11: Link Status

    Displays current link status of EZCast Pro Dongle II, including device names, device’ s IP addresses. ⚫ Host: The first device connecting to EZCast Pro Dongle II will be assigned as host. The host user can decide whether guest user has access to cast via EZCast Pro Dongle II.

  • Page 12: Conference Control

    Conference Control With conference control, admin user can assign each device to specific locations on the external monitor. Block Casting Full Screen Left Half Right Half Upper Left Upper Right Bottom Left Bottom Right...

  • Page 13: Device Management

    Device Management Please see Device Manage for the options to configure Language, Resolution, Max Connections, etc. 3.1 Language: Please select the applicable language. 3.2 Device Name: Rename, hide or turn off SSID. 3.2.1 Hide SSID: Hide SSID from the landing page.

  • Page 14: Resolution

    3.3 Resolution: Please select the applicable resolution for your usage. EZCast Pro Dongle II supports up to 4K at 24P frame rate while the default output resolution is 1920 x 1080_60P. 3.4 Display mode: EZCast Pro Dongle II supports the following Display modes: 3.4.1 Fit to screen:...

  • Page 15: Airplay Mode

    Supports screen mirror mode only. Screen Mirror + Video 3.5.4 Streaming: Supports both mirror and streaming. 3.6 AirView: Allows users to receive EZCast Pro Dongle II output on their connected devices. AirView ON: 3.6.1 Turn on AirView. AirView OFF: 3.6.2 Turn off Airview.

  • Page 16: Eznote

    3.7 EZNote: Users could take note on EZCast Pro App. 3.8 Castcode control: Use Castcode to prevent unauthorized casting. 3.8.1 OFF: Deactivate Castcode. 3.8.2 Random: Random generated Castcode 3.8.3 Fixed: Set fixed Castcode. 3.9 Max Connections: Please select the applicable maximum connections for your usage.

  • Page 17: Android Audio Streaming

    Please be advised that the default setting of Android audio streaming is OFF. 3.11 ChromeCast: Direct casting via Chromecast for Android, Chrome browser. Please be advised that when casting via Chromecast, the EZCast Pro Dongle II must connect to the internet.

  • Page 18: Miracast

    Users won’ t need to enter PIN Code for Miracast connections. 3.13 Legacy Wi-Fi mode: Enable user to connect EZCast Pro Dongle II to legacy wireless Wi-Fi routers. Please be advised that the default setting of Legacy Wi-Fi mode is OFF.

  • Page 19: Network Management

    Network Management Connect EZCast Pro Dongle II to the internet via external Wi-Fi. For security reasons, please make sure that the Wi-Fi you wish to connect is 5GHz and encrypted. 4.1 Connect to 5GHz Wireless Access Point: Once the device is connected to EZCast Pro Dongle II, enter the Wi-Fi password to connect to the external Wi-Fi.

  • Page 20: Wi-Fi Ip Setting

    4.3 Wi-Fi IP Setting: Configure Wi-Fi network, including IP address, Gateway, Netmask, DNS, etc. 4.4 Wi-Fi Password: Change or hide the Wi-Fi connection password on the landing page.

  • Page 21: Wi-Fi Channel

    4.5 Wi-Fi Channel: Set up EZCast Pro Dongle II’ s Wi-Fi Channel. Please be advised that users cannot configure the Wi-Fi Channel while EZCast Pro Dongle II is connected to external internet. Country: 4.5.1 Please select the applicable country/region for the appropriate...

  • Page 22: Admin Setting

    Admin Setting Admin Setting allows individuals with higher access to customize EZCast Pro Dongle II’ s network and features. 5.1 Admin Password: Change the Admin password for better security. 5.2 Wi-Fi Enterprise: Available for higher level of access authorization to upload...

  • Page 23: Host Authority

    Conference Control: 5.3.1 Allows host to assign guest to specific casting block. 5.3.2 Device manager control: Allows host to configure EZCast Pro Dongle II’ s device configuration. Network setup control: 5.3.3 Allows host to configure EZCast Pro Dongle II’ s network.

  • Page 25: Internet Access Control

    All denied: 5.5.3 Prohibit all devices to get internet access. 5.6 SNMP: Network admin can integrate EZCast Pro Dongle II into the existing SNMP monitoring tool. Please be advised that EZCast Pro Dongle II supports SNMP v3 protocol.

  • Page 26: My Screen

    5.8.3 URL: Specify the URL that locates the JSON file. Start after/mins: 5.8.4 Set idle time before activating dynamic wallpaper. Stop when any transmitter is connected: 5.8.5 Stop dynamic wallpaper when any user is connected to dongle via EZCast Pro app.
  • Page 27 Stop when any transmitter starts to mirror: 5.8.6 Stop dynamic wallpaper when any user is casting to dongle via EZCast Pro app. Please follow the steps below to activate dynamic wallpaper: Write a json file according to the sample code below.
  • Page 28 Save your json file to the web-accessible server that you iii. created. Save the image and video file to the web-accessible server that you created. Please be advised that we only support MP4 and JPG file. Copy the URL link of your json file to the “ URL” section.

  • Page 29: Ota Url

    For end users, you can upgrade EZCast Pro Dongle II via Upgrade. 5.10 Connection: Users can connect to EZCast Pro Dongle II via three ways: Via Router Allowed, Direct Link Only, Via Router Only 5.10.1 Via Router Allowed:...

  • Page 30: Fixed Host

    Assign certain device as fixed host. 5.12 Upgrade: Upgrade your EZCast Pro Dongle II firmware to the latest version. Please make sure EZCast Pro Dongle II is connected to the internet during the entire process. Please follow the steps below to upgrade firmware: Check whether there is a newer version available.
  • Page 31 You will see the local and server firmware versions. Please click “ Upgrade” . The upgrade process will start automatically. DO NOT iii. remove the power of EZCast Pro Dongle II during the upgrade process.

  • Page 32: Reset To Default

    Please wait until the progress indicator shows 100%. EZCast Pro Dongle II will reboot once the upgrade process is finished. 5.13 Reset to default: Reset EZCast Pro Dongle II to factory default. Please note that all customized configurations will be reset.

  • Page 33: Reboot

    Reboot Reboot to apply setting changes. About Detail information of EZCast Pro Dongle II including SSID, Firmware Version, Wi-Fi Channel, etc.
