How to Configure AirMax2 as Universal Repeater

1.
Connect your PC directly to the LAN port on the DC Injector of AirMax2
2.
Set your PC's IP address manually to 192.168.1.100 (or other address in
the same subnet)
3.
Enter AirMax2's IP address (default is 192.168.1.1) on the web browser.
The default username is "admin" and password is "airlive".

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AirMax2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for AirLive AirMax2

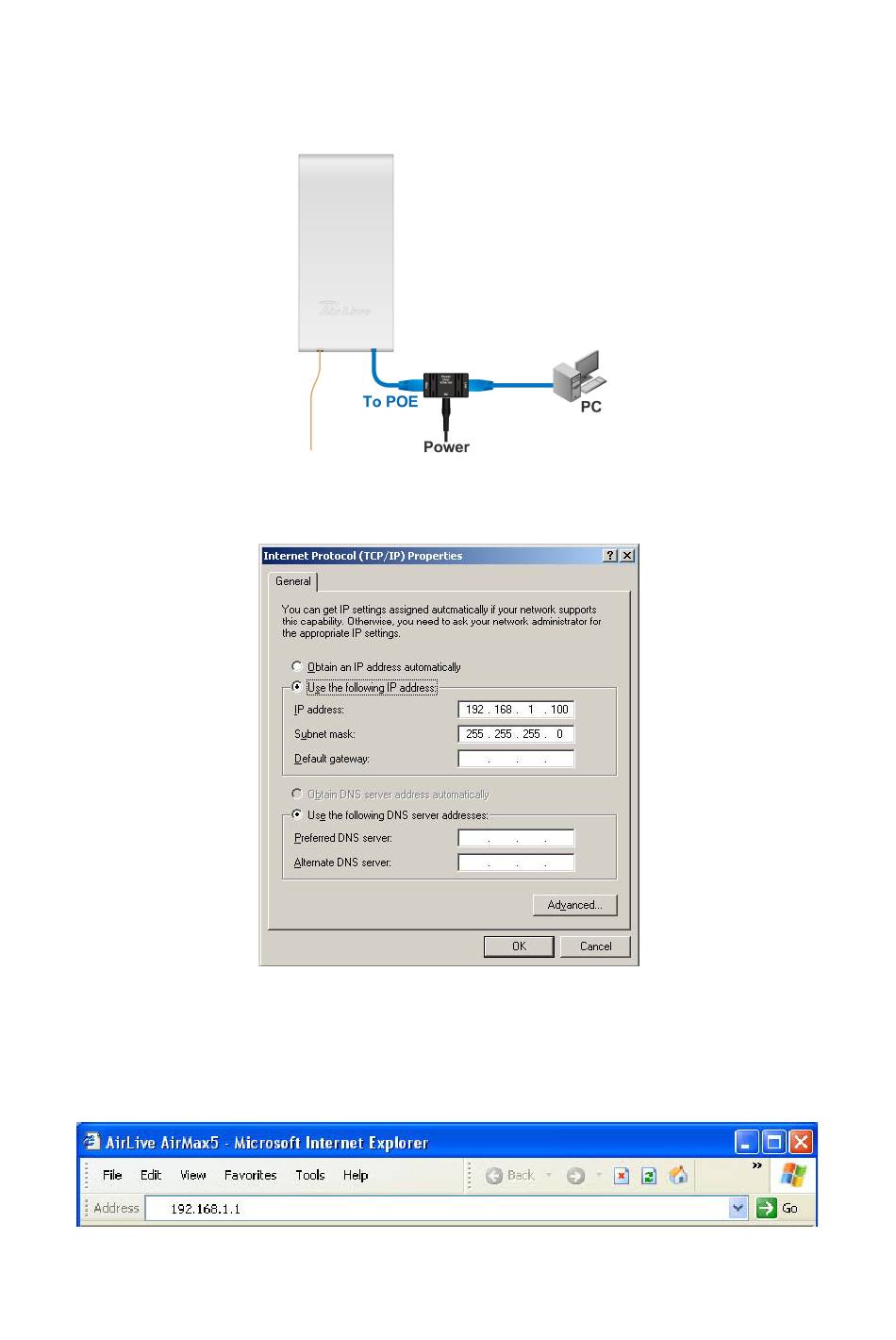

  • Page 1 How to Configure AirMax2 as Universal Repeater Connect your PC directly to the LAN port on the DC Injector of AirMax2 Set your PC’s IP address manually to 192.168.1.100 (or other address in the same subnet) Enter AirMax2’s IP address (default is 192.168.1.1) on the web browser.
  • Page 2 Change to Universal Repeater Mode. AirMax2 will reboot to make it effective. Please wait about 2 minites. Configure Network SSID, Channel, Security and SSID of Extended Interface. Network ID: The SSID would be seen by wireless network card that would like to connect to AirMax2.
  • Page 3 After reboot, the AirMax2 will connect to remote Access Point automatically and provide wireless signal for connection. Please note, if AirMax2 does not connect to remote Access Point, the AirMax2 would not be seen by the wireless network card.
