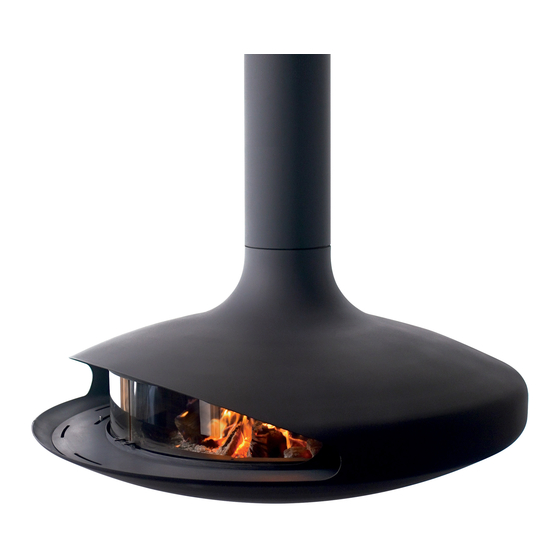

Focus GYROFOCUS GAS Installation, Servicing And User Instructions Manual
  1. Manuals
  2. Brands
  3. Focus Manuals
  4. Indoor Fireplace
  5. Gyrofocus
  6. Installation, servicing and user instructions manual

Focus GYROFOCUS GAS Installation, Servicing And User Instructions Manual

Hide thumbs Also See for GYROFOCUS GAS:
Table of Contents

Advertisement

Quick Links

GYROFOCUS GAS
____
____
INSTALLATION,
SERVICING AND
USER INSTRUCTIONS

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GYROFOCUS GAS and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Focus GYROFOCUS GAS

Summary of Contents for Focus GYROFOCUS GAS

  • Page 1 GYROFOCUS GAS ____ ____ INSTALLATION, SERVICING AND USER INSTRUCTIONS...

  • Page 2: Table Of Contents

    This appliance is designed for use with the type of gas and pressure indicated on the appliance nameplate. SERVICING INSTRUCTIONS SPARE PARTS This manual covers the following devices: - Gyrofocus gas TROUBLESHOOTING COUNTRIES OF DESTINATION TECHNICAL DATA TECHNICAL DETAILS APPENDIX...

  • Page 3: General Information

    General Information Before installation, ensure that the local distribution conditions (identification IMPORTANT SAFETY NOTICE of the type of gas and pressure) and the adjustment of the appliance are compatible. The technical specification of this appliance is given on the rear page of this manual.

  • Page 4: User Instructions

    General Information Handset Model Number BATTERY TYPE Press , and buttons simultaneously. Handset model number is displayed. Deactivate Functions Receiver: 4x AA, R6 size. 1. Install batteries. All icons are displayed and flashing. Transmitter: 2 x AAA (Alkaline only). 2. While the icons are flashing, press the relavant function button and hold for 10 sec.
  • Page 5 User instructions Figure 01: 8-symbol Display C. SETTING FAHRENHEIT OR CELSIUS E. CHILD PROOF To change between °C and °F, press buttons simultaneously. To activate press buttons simultaneously. displayed handset is rendered inoperable, except for the NOTE: Choosing °F results in a 12 hour off function.
  • Page 6 User instructions Handset One-Button Operation TO TURN OFF FIRE (Default Setting) · · Press button until two short beeps and Handset a blinking series of lines confirms the start · · Press button to turn OFF. sequence has begun; release button. ·...
  • Page 7 User instructions H. COUNTDOWN TIMER J. THERMOSTATIC MODE ON/SETTING: 1. Press and hold button until displayed, Press button. displayed, preset and hour flashes. temperature displayed briefly, and then room 2. To select hour press button. temperature displayed. 3. To confirm press button.
  • Page 8 User instructions Default settings: NOTE: Either continue to PROGRAM 2 and set on and off times or ON TIME (Thermostatic) TEMPERATURE: 21 °C (70 °F) stop programming at this point, and PROGRAM 2 remains OFF TIME TEMPERATURE: “ ” (pilot flame only) deactivated.

  • Page 9: Manual Turn Off

    User instructions MANUAL TURN OFF CLEANING AND MAINTENANCE In the event that the appliance needs to be turned OFF manually, This appliance should be inspected and serviced once a year by a qualified, for instance, if the remote control is lost or the batteries become totaly competent and registered person.

  • Page 10: Installer Information

    Installer information VENTILATION DISTANCE TO COMBUSTIBLES This product is rated in excess of 7kW, and it is a legal requirement to Safety clearance distances from combustible materials. have 100cm² of ventilation if the input is in excess of 7kW. Thus 100cm² of ventilation is required.
  • Page 11 Instructions d'installation Installer information Flat plate Platine simple Oblique plate Platine inclinée...
  • Page 12 Instructions d'installation Installer information Back Arrière 80 mm Arrière 80 mm 100 mm 100 mm Ø350 mm Ø350 mm Front Avant mini Avant Ø160 mm Ø160 mm...
  • Page 13 Instructions d'installation Installer information mandatory collier collar obligatoire adjustable element élément réglable welding SOUDURE...
  • Page 14 Installer information Instructions d'installation...
  • Page 15 Installer information Instructions d'installation...
  • Page 16 Installer information Instructions d'installation FLEXIBLE STAINLESS STEEL DÉTAIL RACCORD SUR FLEXIBLE INOX CONNECTION DETAIL couper le tube cut the tube dégainer le tuyau strip the pipe install the nut and serrer le raccord pour tighten the fitting to installer l’écrou et les symmetrical half-rings seal the connection sceller la connexion...
  • Page 17 Installer information Instructions d'installation...

  • Page 18: Burner Pressure

    Instructions d'installation Instructions d'installation 1000 mm maxi Gas supply alimentation gaz (not provided) (non fourni) BURNER PRESSURE PRESSION DU BRULEUR Remove the screw from the pressure test point. (NOTE: you will not get an accurate reading of the inlet pressure with a Enlevez la vis du point de test de la pression.

  • Page 19: Testing And Commissioning

    Instructions d'installation Instructions d'installation TESTING AND COMMISSIONING ESSAI ET MISE EN SERVICE IDENTIFICATION OF INSTALLATION KIT PARTS : IDENTIFICATION DES PIÈCES DU KIT DE POSE : Allumez et vérifiez qu’il n’y ait aucune fuite de gaz depuis l’alimentation Turn on and test the gas supply up to the fire for any leaks, in accordance with current edition of BS6891.
  • Page 20 Installer information Scatter the grey chips as shown above, making sure that no grey Lay Log 3 as shown above. chips enter the Pilot area. Lay log 1 as shown above. Lay Log 4 as shown above. Lay Log 2 as shown above. Lay Log 5 as shown above.
  • Page 21 Installer information Lay Log 6 as shown above. Scatter black vermiculites, black small pebbles and lay additionnal logs as you want on the gray area Lay Log 7 as shown above, the layout is now complete. Ensure that the Pilot area is still left clear, and check the correct lighting of the Pilot and that the Pilot cross lights to the main burner smoothly.

  • Page 22: Flue Spillage Monitoring System

    Installer information FLUE SPILLAGE MONITORING SYSTEM BRIEFING THE CUSTOMER This fire is fitted with a flue spillage safety device (ODS). If the fire shuts All instructions must be handed to the user for safekeeping. Show the down during use for no apparent reason then several things may be customer how to light and control the fire.

  • Page 23: Spare Parts

    Installer information SPARE PARTS TROUBLESHOOTING Burner, Curve Natural BG10305 Pilot sparks but does not light – Burner, Curve LPG BG1030A No gas to fire, check isolators are open. Pilot Natural (ODS) CG06178 Pipework blockage, clean out. Pilot LPG (ODS) CG20078 Air not fully purged, repurge supply or wait longer.

  • Page 24: Countries Of Destination

    Installer information COUNTRIES OF DESTINATION The following tables gives detail of the Countries that these appliances are approved for use within. The tables following immediately on give the technical characteristics of the appliances. Country Natural AT -Austria I2H G20 at 20 mbar I3B/P G30/G31 at 50 mbar BE -Belgium I2E+ G20/G25 at 20/25 mbar...

  • Page 25: Technical Data

    Installer information TECHNICAL DATA PIN: 0359CU05468 Natural Gas Category I2E+ I2L/I2EK I2ELL G20/G25 G20/G25 Supply Pressure (mbar) 20/25 Pilot Burner SIT 9043 Nominal Input (Gross kW) 13.5 13.5 13.5/12.2 12.2 13.5/10.9 Gas Rate (Max. m3/hr) 1.26 1.26 1.26/1.35 1.35 1.26 Burner Pressure (Hot mbar) 16.5 16.5...

  • Page 26: Technical Details

    Installer information Instructions d'installation Instructions d'installation Ø 650 Ø320 TECHNICAL DETAILS DÉTAILS TECHNIQUES DÉTAILS TECHNIQUES Ø 750 Ø 750 Ø 650 Ø 650 Ø 650 600 x 600 600 x 600 Ø 650 Ø320 Ø320 Ø320 Ø320 Ø 320 Ø 320 Ø219 Ø219 Ø219...

  • Page 27: Appendix

    Appendix MERTIK FAULT FINDING CHART FUNCTION POSSIBLE CAUSE REMEDY Replace transmitter batteries. Transmitter batteries low. HANDSET START: 9V quality alkaline recommended. Press both buttons Replace receiver batteries with 1.5V “AA” quality to start ignition (IGN) Receiver batteries low. alkaline batteries. sequence.
  • Page 28 Appendix FUNCTION POSSIBLE CAUSE REMEDY Check connection between cable & IGNelectrode. Ignition components not operating properly. See wiring diagram, p. 23. Check IGN-electrode spark gap. See wiring diagram, p. 23. Check IGN-electrode. See wiring diagram, p. 23. Check IGN-cable for damage. See wiring diagram, p.
  • Page 29 Appendix FUNCTION POSSIBLE CAUSE REMEDY Check connection of cable to receiver and Pilot lit. TC- and SW-cable reversed. interrupter. See figure 1. Magnet unit not operating properly. Replace gas valve or (magnet unit). Short between interrupter and SW-cable. Check connection to interrupter. No gas (magnet unit drops after 30 second Check gas supply.
  • Page 30 Appendix FUNCTION POSSIBLE CAUSE REMEDY Turn manual knob to “ON” position (positive latch Main burner is lit. Manual knob in “MAN” position. is required). See “Manual Operation” p. 08. Too much draft at pilot (poor flame Main burner stays lit. Check installation.

  • Page 31: Wiring Diagram

    Appendix WIRING DIAGRAM...

  • Page 32: Déclaration Of Conformity

    3 Impasse Claque Patin F - 34380 Viols le Fort declares that the FOCUS decorative, fuel effect gas appliance Gyrofocus Gas described here is in accordance with the appliance described in the EC-Type Examination Certificate No. UK-LHD-0359-05468 delivered by INTERTEK and comply with the essential requirements applicable to EN 509 :1999 + A1 :2003 + A2 :2004 and Regulation UE 2016/426.
  • Page 33 Note...
  • Page 34 Note...
  • Page 35 Note...
  • Page 36 Atelier dominique imbert S.A.S. au capital de 102 355 euros 34380 Viols-le-Fort France Tel. : 00 33 (0)4 67 55 01 93 Fax. : 00 33 (0)4 67 55 77 77 Web : www.focus-creation.com Email : info@focus-creation.com V. 02.2 - Septembre 2020...
