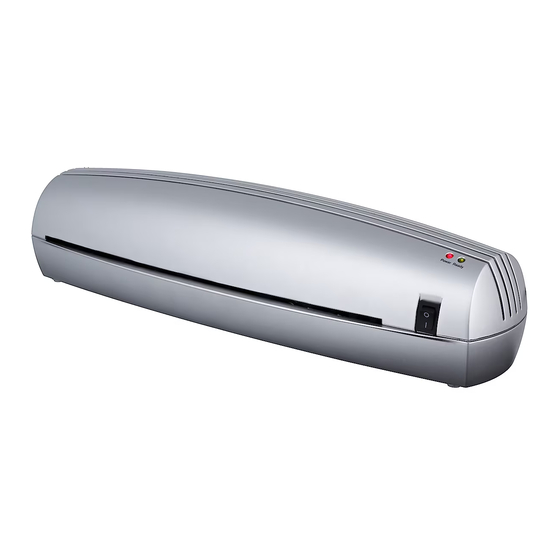

A3 Laminator
Art.no 34-1402
Model L303-A
Please read the entire instruction manual before using the product
and save it for future reference. We reserve the right for any errors
in text or images and any necessary changes made to technical
data. If you have any questions regarding technical problems
please contact our Customer Services.

1. Safety

• Unplug the lead before cleaning.
• The laminator may not be used by children without
the supervision of an adult.
• Do not insert any metal objects like paperclips, coins, etc. into
the machine.
• Do not insert anything other than lamination film into the machine.
• Do not disassemble the laminator or attempt to repair it
yourself. The laminator must not be modified in any way.
• The laminator may produce a burnt odour when first used.
This is completely normal.
• Do not touch any of the machine's hot surfaces. Burn injuries
may result.
• Never use the laminator in humid environments or near
sources of water, e.g sinks, taps, etc.
• The mains lead should be checked regularly. Never use
the product if the mains lead or its plug is damaged or if
the product is not functioning properly.
• If the mains lead is damaged, it must only be replaced by
a qualified service technician in order to prevent any risk of fire
or electric shock.
• Never lay the mains lead over hot surfaces or pull it round
sharp edges or corners. Position the mains lead in such a way
that it will not be trodden on or tripped over.

2. Product description

• Two rollers
• Capacity: 250 mm/min 80–100 µm, max A3
• 3–4 min warm-up time
• Max. paper thickness: 0.5 mm
• Reverse feature for correcting misfeeds
• Power output: 300 W
GREAT BRITAIN - CUSTOMER SERVICE contact number: 08545 300 9799
English
1
2 3 4
1. Film feed slot
2. [ 0/1 ] Power switch
3. POWER Red LED indicator
4. READY Green LED indicator
5. [ ABS ] Reverse function
6. Output chute

3. Operation

Make sure the power switch (2) is set to 0 before plugging it into
a wall socket.
1. Plug it into a wall socket and set the power switch (2) to
the I position. The red LED (3) will light to indicate that
the warm-up phase has begun.
2. The green LED will light after about 3–4 minutes indicating
that the laminator is ready for use. Make sure that there is
sufficient room behind the machine to allow the lamination to
exit the machine freely.
3. Flip open the lamination film and insert the paper to be
laminated. Allow at least 3–10 mm clearance at the sealed
edge when inserting. Make sure the paper is not crooked.
4. Feed the sealed end of the lamination film into the feed
slot first. Note: This is very important; otherwise,
the lamination film can become caught in the rollers.
5. Let the entire lamination exit freely. Do not pull it out with force.
Let it cool before handling it. Place a flat heavy object, like
a book over the laminate while cooling if you want your results
to be extra smooth and flat.
6. Set the power switch to 0 and unplug the laminator when you
have finished using it.
Note:
• Select the correct size of lamination film so that it fits
the object to be laminated.
• Avoid placing several small pieces of paper into a single
lamination sheet.
• Remember that the laminate's total thickness may not
exceed 0.5 mm.
e-mail: customerservice@clasohlson.co.uk
• Do not feed in empty lamination film.
• Do not cut the lamination film into smaller pieces before
feeding it through the machine.
• Do not feed the film into the machine at an angle.
It can become caught in the machine during
the lamination process.
• Use only lamination film. Never try to feed in any other type of
material.
• If you intend to laminate in series, remember the machine
5
6
needs to rest at least 15 seconds between every lamination.
• Do not feed in any material that is sensitive to heat.
The laminator is intended for personal use only and should not be
used continuously. We recommend that you turn off the machine
and let it cool down for approximately 30 minutes after two
minutes of use.
Reverse feature for correcting misfeeds
The machine has a feature which allows the laminate to be pulled
out from the front. If the lamination film misfeeds or jams:
1. Turn off the laminator immediately by turning the power switch
to the 0 position and then unplug it.
2. Hold in the [ABS] button and extract the laminate.

4. Care and maintenance

Unplug the laminator from the wall socket and wipe it with
a soft, damp cloth when needed. Never use strong detergents
or solvents.

5. Disposal

This product should be disposed of in accordance with local
regulations. If you are unsure how to proceed, contact your
local authority.

6. Specifications

Rated voltage
Power
Max lamination width
Speed
Recommended
lamination film thickness
Dimensions
internet: www.clasohlson.com/uk
220–240 V AC, 50 Hz
300 W, 1.4 A
320 mm
250 mm/minute
80–100 microns
425 × 125 × 100 mm
