Grässlin (UK) Ltd
Tel : 01732 359888 Fax : 01732 354445
Programming guide

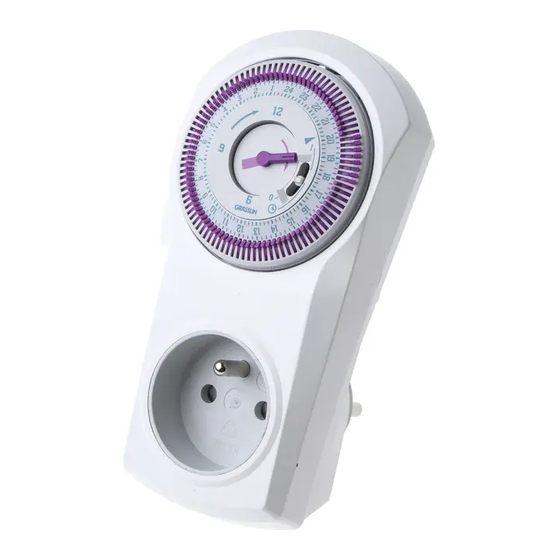

TOPICA 200

Setting up

The outer dial should be set to the current time. Rotate the dial slowly in a clockwise direction, until the correct
hour is approaching the arrow printed on the dial. Note that the outer dial is printed with the 24 hour clock – 8:00
a.m. = 8 on the dial. 8:00 p.m. = 20 on the dial.

Programming switching times

Set all tappets between the on and off times required, to the outer edge of the dial (see figure 1). E.g. to set
on at 8:00 a.m. – Off at 1:00 p.m., push tappets between dial numbers 8 and 13 to outer edge of dial. Set
any other required switching times in a similar manner.

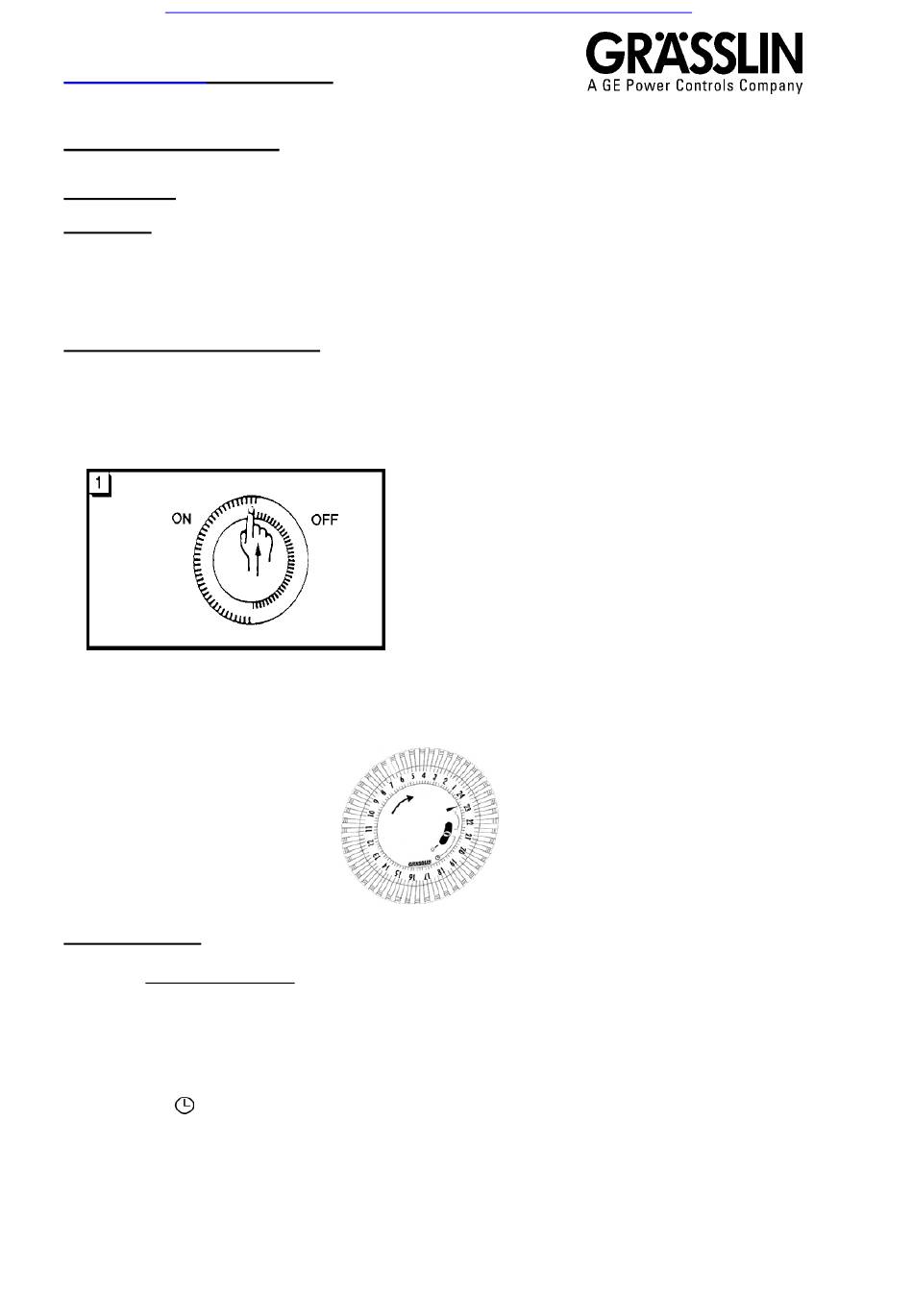

Figure 1
Manual Override
There is a three-position switch built in to the face of the dial.
For automatic timed control, governed by the tappet settings, the switch should be left in the middle position
(as illustrated). The output can be switched ON at any time, by moving the switch lever to the top position,
marked with a I on the dial. Alternatively, the output can be switched OFF at any time, by moving the switch
lever to the lower position, marked with a 0 on the dial. The manual override is a fixed selection – the output
will remain ON or OFF (as selected), until the switch lever is moved back to the middle timed position,
marked with a on the dial.
