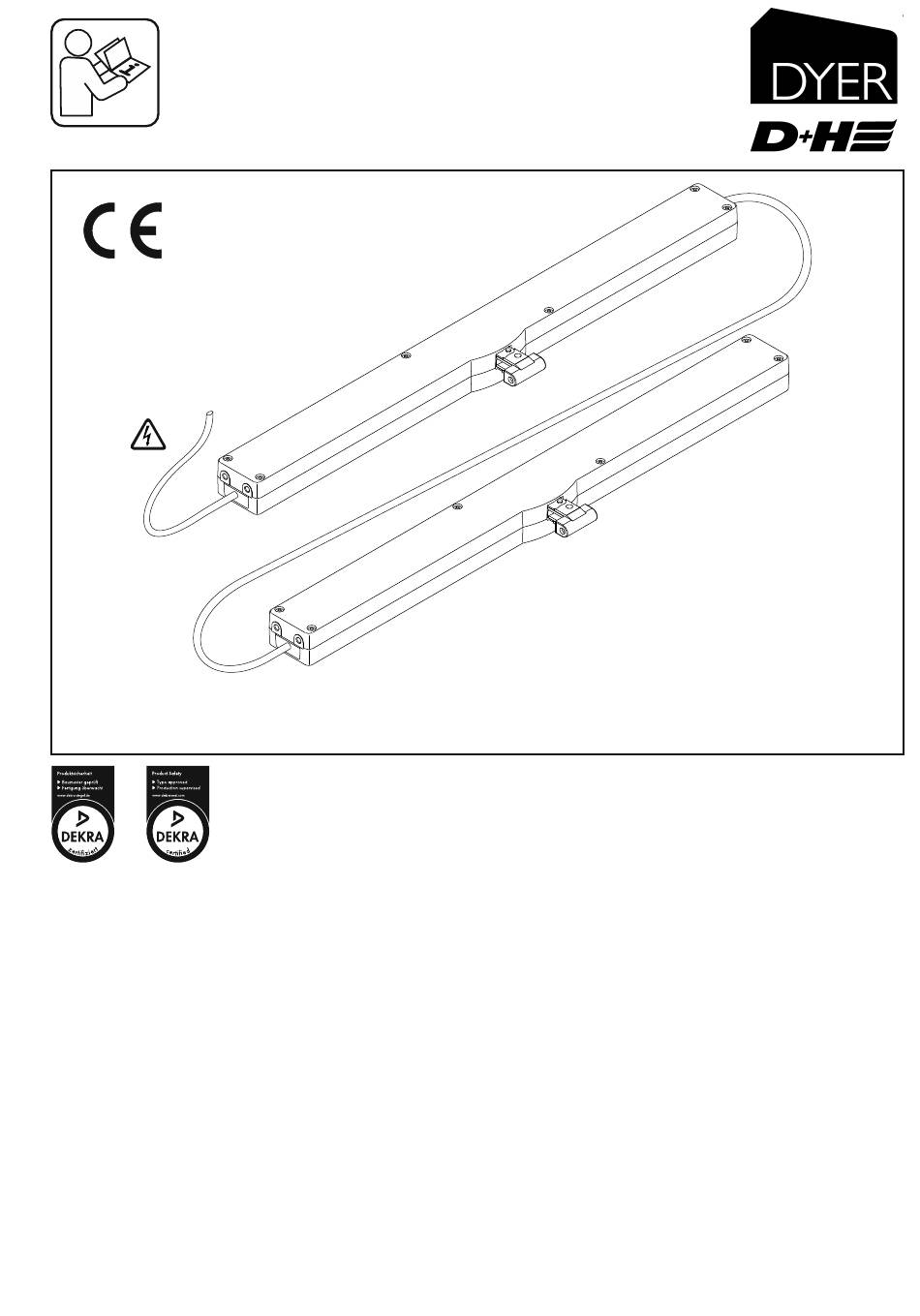

- Page 1 VCD 204-K-TMS+ Set instructions VCD 204-K-TMS+ B With built-in power supply 230 VAC 50 Hz VCD 204-Z-TMS+ A Please order bracket sets separately...
- Page 2 Do not use cleaning agents or solvents. Guarantee Declaration of Conformity You will get 2 years guarantee for all D+H products We declare under our sole responsibility that the from date of verified handing over of the system up to product described under “Technical Data”...
-
Page 3: Technical Data
Technical data Type VCD 204 -K-TMS+ Set Power supply 230 V AC / +10...-15 % / 50 ... 60 Hz Power consumption 22 W / 30 VA Nominal force 2x 200 N Nominal locking force approx. 2x 2000 N (Excluding bracket) Service life >20 000 double strokes Duty cycle... -
Page 4: Mounting Informations
Stroke limiting with magnets B oth drives must be electrically connected in order to set the stroke. Only one drive needs to be switched to the stroke learning mode with the magnet . Close drives. Voltage must continue to Allow the drives to run be applied to the drives when “OPEN”... - Page 5 Pin Assigment VCD 204-K-TMS+ B VCD 204-Z-TMS+ A 230 VAC 24 VDC mains supply BN (L BN (–) WH (+24 V) BK (L YE (TMS+) GN (n.c.) BU (N) GN (n.c.) YE (TMS+) YE/GN ( WH (+24 V) BN (–) Optional signals VCD 204-K-TMS+ B VCD 204-Z-TMS+ A...
- Page 6 Connection VCD 204-K-TMS+ B VCD 204-Z-TMS+ A (WH) (WH) +24 V +24 V (BN) (BN) – – (YE) (YE) TMS+ TMS+ Patch cable (BN) brown (BK) black (BU) blue (YE) yellow (GN) green (WH) white (PK) pink (GR) grey 230 VAC Do not reverse L+N! Connect PE! 50 Hz VCD 204 -K...
- Page 7 Dimensions Dyer Environmental Controls Ltd Unit 10 Lawnhurst Trading Estate, Cheadle Heath, Stockport SK3 0SD Tel: +44 (0)161 491 4840 E-Mail: enquiry@dyerenvironmental.co.uk www.dyerenvironmental.co.uk...
