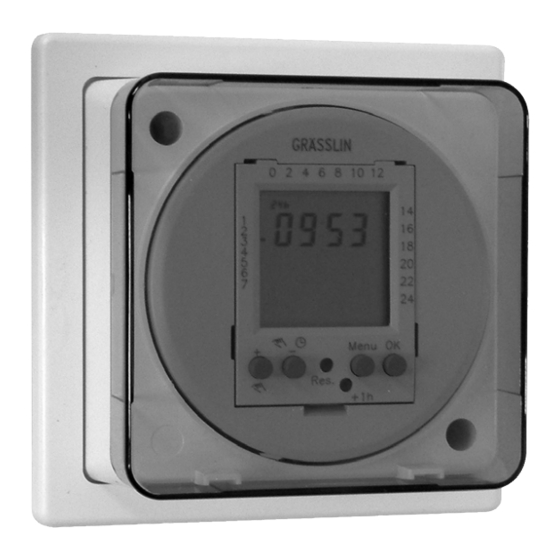

Digital socket box timer
Hide thumbs Also See for talento 800:

Advertisement

http://waterheatertimer.org/Intermatic-timers-and-manuals.html#talento-800

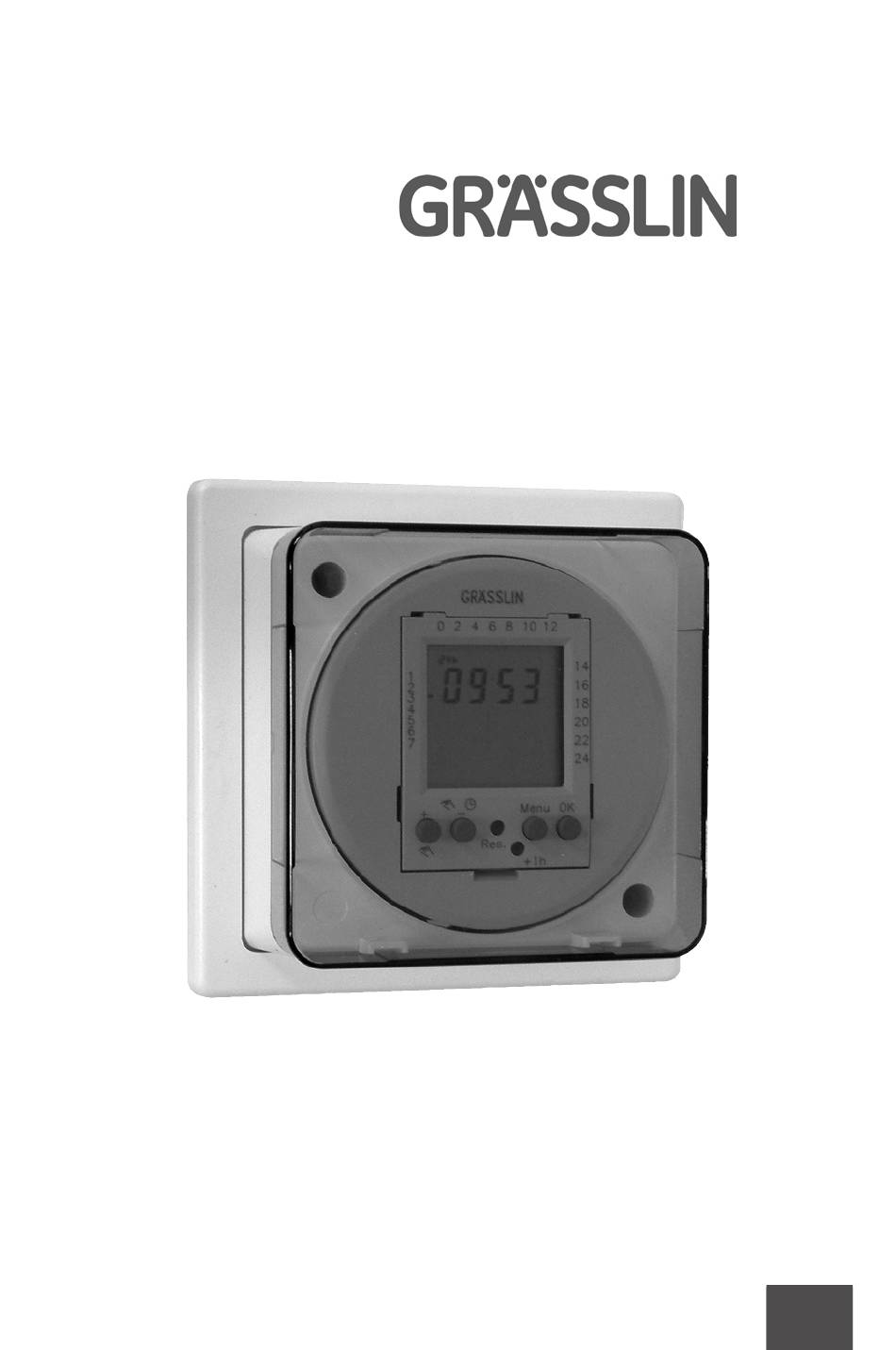

Instruction Manual
Digital socket box timer
Grässlin UK
Vale Rise
Tonbridge/Kent TN9 1TB
Tel. (0 17 32) 35 98 88
Fax (0 17 32) 35 44 45
www.tfc-group.co.uk
GB

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the talento 800 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Grasslin talento 800

  • Page 1 http://waterheatertimer.org/Intermatic-timers-and-manuals.html#talento-800 Instruction Manual Digital socket box timer Grässlin UK Vale Rise Tonbridge/Kent TN9 1TB Tel. (0 17 32) 35 98 88 Fax (0 17 32) 35 44 45 www.tfc-group.co.uk...
  • Page 2: Table Of Contents

    page Safety precautions, short description, wiring diagram..............3 Installation ................................3 Technical data ..............................5 Symbols, keys ..............................5 reset Menu Setting the timer .............................. 6 Prog Setting 24h or am/pm clock, time and weekday ................6 Prog. Pre-set programs............................. 8 Selecting pre-set programs P01 to P03....................
  • Page 3: Safety Precautions, Short Description, Wiring Diagram

    Safety precautions · The connection and installation of electrical devices may only be carried out by a qualified electrician. · Interventions in and changes to the device result in the voiding of the warranty claim. · Observe your national regulations and the respective safety provisions. ·...
  • Page 4 Backplate wiring: Example Wiring diagram The link illustrated between terminals 3 and 5 (when required) must be fitted by the installer. The diagram above is appropiate when switching a mains load. to appliance mains supply...
  • Page 5: Technical Data

    Technical Data Supply voltage see inprint on device Switching capacity see inprint on device Ambient temperature -10ºC to +55ºC Protection class IP 51 electronic IP 20 terminal box Accuracy +/- 1 sec day at 20ºC Reserve power 3 years from factory at +20ºC Shortest switching time 1 min Memory spaces...
  • Page 6: Menu

    Menu Prog Setting the timer Setting of this programmable timer is depending of the user preference to use pre-set pro- grams or defining own programming. Using Pre-set programs Using Reset key you can adjust the follow- (first time installation) ing values: 24h or am/pm: see pg 6 Time (hour and minutes):...
  • Page 7 Set hour Res. Menu OK Select hour (+/-) and confirm with OK. Set minutes Res. Menu OK Select minutes (+/-) and confirm with OK. Set week day Res. Menu OK Select week day (+/-) and confirm with OK. 1 = Monday 5 = Friday 2 = Tuesday 6 = Saturday...
  • Page 8: Prog

    Prog. Pre-set programs Programs P01-03 P01: Mo - Su, 1 x ON/OFF The switching on and off times for pro- grams P01 to P03 are preset (pre). The user can change these programs. Individual program, P-- Under the menu option P-- you have the option of creating a user-defined program.
  • Page 9: P0X

    prog Selecting pre-set programs Sequence to follow after setting time in the Reset mode. Res. Menu OK Select pre-set program (+/-). Res. Menu OK Once selected the program desired there are following options: Menu terminate programming Going through pre-set programs to modify selection (any program ON or OFF can be modified by using ''+'' or ''-'' keys and confirming with OK) or accept it with OK...
  • Page 10: User Defined Programs

    prog User defined programs Sequence to follow after setting time and week day while running Menu mode or adding programs to the pre-set P01 to P03. Select program ON Res. Menu OK and confirm with OK. Set hour ON Res. Menu OK Select hour (+/-) and confirm with OK.
  • Page 11 prog Set week day ON Res. Menu OK Select week day (+/-) and confirm with OK. Possible week blocks and individual days Set hour OFF Res. Menu OK Select hour (+/-) and confirm with OK.
  • Page 12 prog Set minutes OFF Res. Menu OK Select minutes (+/-) and confirm with OK. Set week day OFF Res. Menu OK Should the OFF command be the same day of ON command then select Menu to terminate programming or select OK to go to a new program ON setting.
  • Page 13: Deleting Programs

    Deleting programs Res. Menu OK Select Menu, then select OK key until getting onto the ON time of the program you want to delete. Res. Menu OK Select ''--'' with (+/-) key and confirm with OK. Res. Menu OK Note: Switching programmes are deleted in ON- OFF pairs.
  • Page 14: Summer/Winter Time

    Summer / winter time Res. Menu OK The +1h key is for the changeover from summer to winter time. · By pressing the +1h key 1 hour is added to the current time. · +1h is shown on the display. ·...
