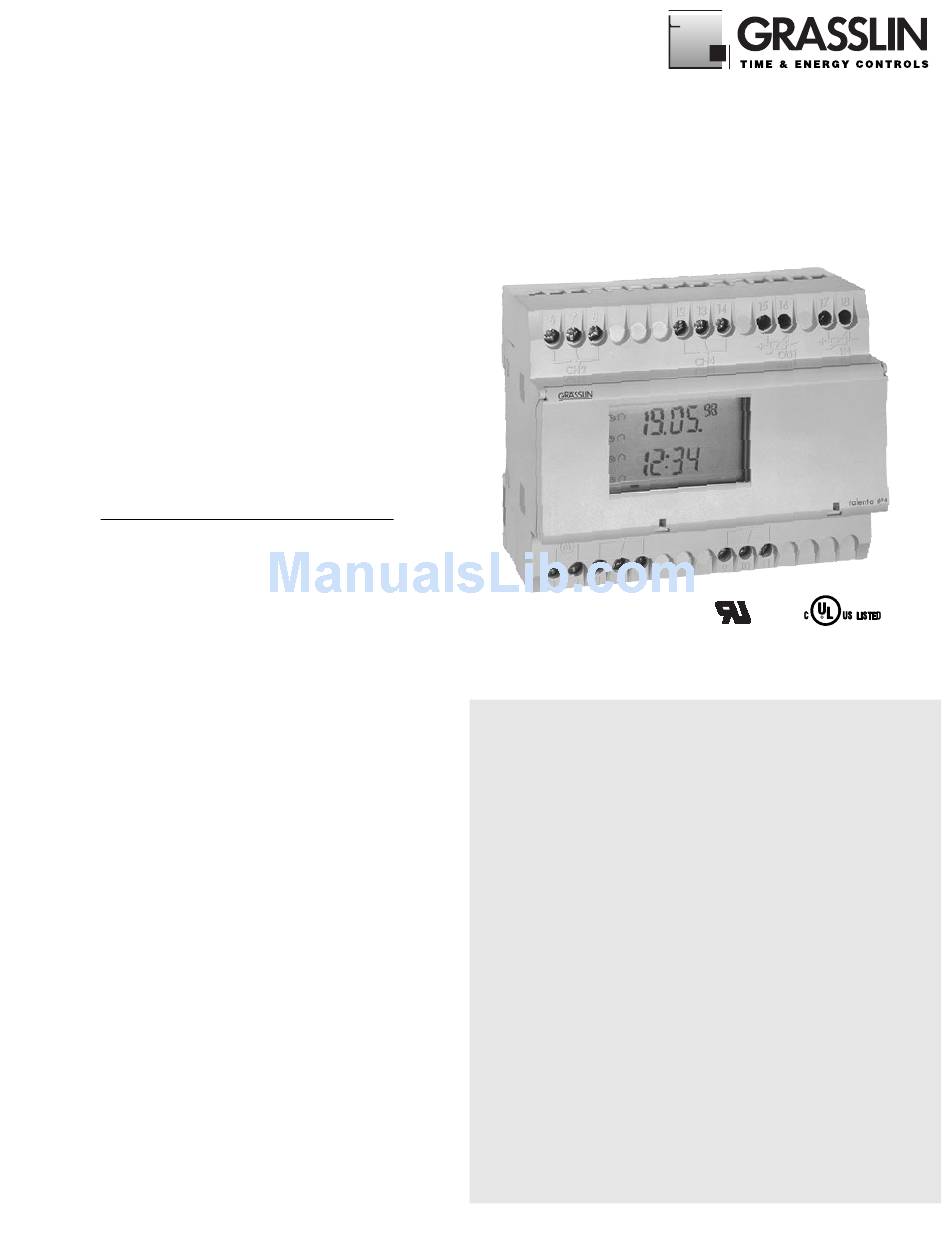

Grasslin talento 800 Series Operating Instructions Manual

Operating Instructions

talento
365-Day One, Two and Four Circuit
Electronic Time Controls

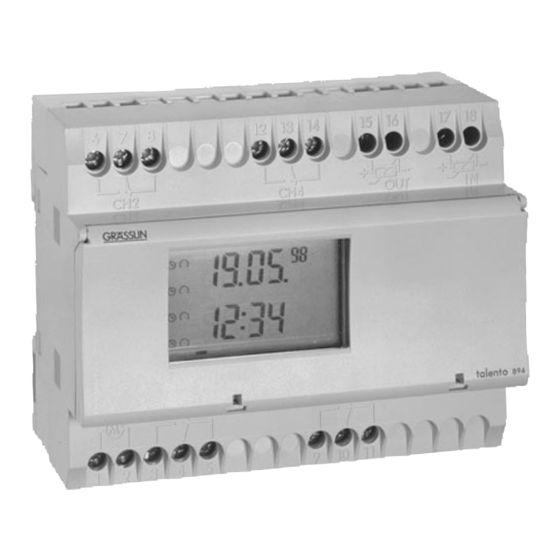

The talento 800 controls are one, two and four
channel electronic time switches with 365-day,
7-day and 24-hour programming. The chan-
nels are freely programmable with a total of
400 schedules. The load status, time of day,
and date are displayed on a large LCD read-
out. In addition to conventional On/Off pro-
gramming, the unit provides a "Pulse" and
"Cycle" function.
Functional Description
The talento 800 time control can be programmed
with a 24-hour, 7-day, or a 365-day schedule (with
individual holidays or holiday/vacation periods.)
This control incorporates a calendar through the
year 2095 and also includes automatic leap year
adjustment. The annual daylight savings/standard
time changes can be programmed to occur auto-
matically each year through 2095.
Please read these operating instructions carefully
so that you will be able to take full advantage of the
functions offered by the talento 800 time control.
TO THE INSTALLER:
1. Read operating instructions carefully.
2. Check the input voltage ratings marked on the
unit to make sure this product is suitable for
your power supply and application.
3. Disconnect power supply prior to installation to
prevent electrical shock.
4. Damage to the relay contacts caused by short
circuiting will void warranty.
5. Wire in accordance with National and Local
electrical code requirements.
800
Series
TECHNICAL DATA
Input Voltage:
Relay Switch Rating:
Output Relay:
Power Consumption
Battery Backup:
Temperature Range:
Display:
Weight:
Mounting:
Shortest Switching Time: One second
& 86
In Optional Enclosure
Separate models available for
24V, 120V or 240VAC,
50-60 Hz input
16A @ 24/250 VAC
SPDT dry contacts for each
channel
5 VA
6 years, replaceable
–13°F to 131°F (–25°C to 55°C)
AM/PM LCD 1" x 1-11/16"
18 oz.
Surface & DIN rail (NEMA 1 indoor &
NEMA 3R outdoor enclosures
available)
