Introduction
The AT10 contact thermostat / AT10F capillary thermostat is a mechanical
thermostat, which can be very easily installed – to the surface of the pipe
or by placing the capillary in a sleeve, e.g. of a hot water tank. It allows
to control the temperature of hot water (DHW) or central heating. It can
be used to switch connected devices on or off in relation to the measured
temperature. These can include: pumps, switching valves or boilers.
Product compliance
The product is compliant with the following directives: Low Voltage
Directive LVD 2014/35/EU, RoHS Directive 2011/65/EU. Full information
is available at www.saluslegal.com
Safety informations:
Use in accordance with national and EU regulations. Use the device as
intended and do not allow it to get wet. Product for indoor use only.
Installation must be carried out by a qualified person, in accordance with
national and EU regulations.
Description of electrical connections
Terminal Description
C Common contact
1 NO – normally open contact
2 NC – normally closed contact
Ground

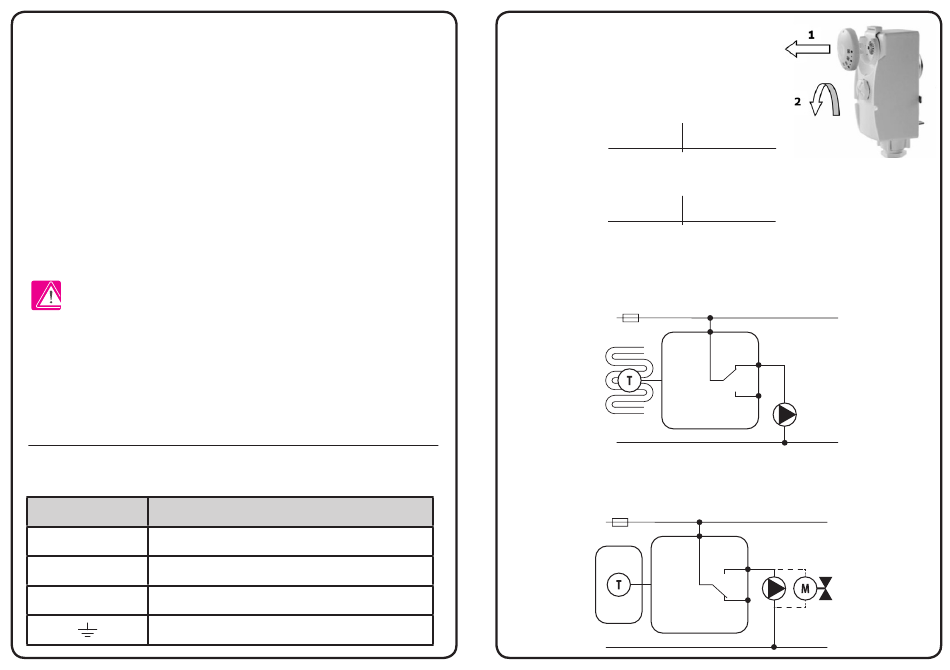

Installation
Remove the knob (1) and loosen the large
plastic screw (2). Remove the housing cover.
Connect the cable contacts as presented in the
diagram:
ON
C-1 terminals
0° SETPOINT
OFF
C-2 terminals
0°
SETPOINT
1 Underfloor heating protection against overheating
in case of exceeding the temperature setpoint – C-1 terminals
are opened
AC 230V
L
Underfloor
heating
N
2 Filling the hot water (DHW) tank if the temperature in the
tank drops below the set value – C-1 terminals are closed
AC 230V
L
C
Hot water
tank
AT10F
N
OFF
90°
ON
90°
C
NO
1
NC
2
MAX
16 (4) A
AT10
MAX
16 (4) A
NO
1
NC
2
