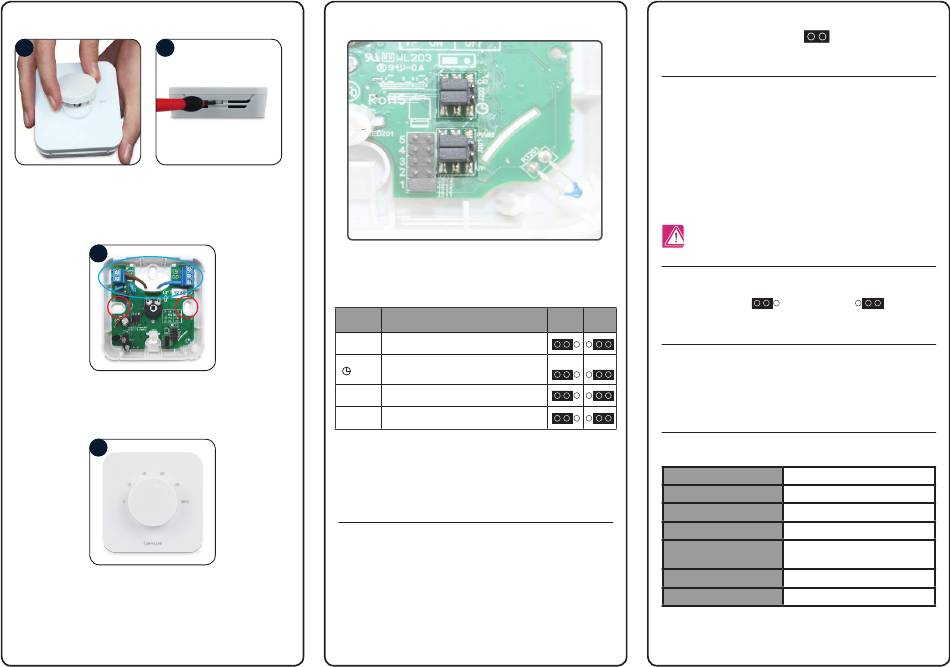

Montage
1 2
Make sure that the thermostat is not connected to the 230V AC. Remove the
knob by pulling it towards you, and then open the front cover as shown in the
figure above.
3
Connect the thermostat. Please refer to "Connection Description" section.
Mount the thermostat using the designed screw holes.
4
Fold front and back housing of thermostat. The thermostat is configured.
Use the knob to set the temperature setpoint.
Jumpers for additional settings
The functions of the HTR230(20) thermostat can be switched on and off by
jumpers. Please refer to the table below:
Jumper Function
Heating / Cooling mode
CO
Temperature reduction value
– NSB
in NSB mode
PWM algorithm
PWM
Valve Protection
VP
Jumpers 1 to 5 correspond to the number of actuators connected. This jumper
is factory set to position 1, which means that the thermostat controls one
actuator. Depending on the number of actuators used, the jumper position
must be changed to ensure optimal operation of the temperature thermostat.
Selecting the heating or cooling mode
Heating or cooling mode is based on the voltage sent to the CO terminal. 0V
AC at the CO terminal – the thermostat is in heating mode. 230V AC at the CO
contact – the thermostat is in cooling mode.
Cooling blocking function.
Cooling on: Set the jumper to ON
in cooling mode if 230V AC will appear at the CO terminal. The
LED lights up blue when the thermostat sends a signal for cooling.
Night setback – NSB function
The NSB (Night Set Back) function enables automatic reduction of the
temperature setpoint on the daily thermostats, via the programmable
thermostat connected to the wiring centre. The temperature change takes
place between day and night temperatures. When the night mode is activated,
the programmable thermostat sends a voltage signal to the daily thermostats
via the wiring centre. Then, the HTR230(20) thermostat automatically reduces
the temperature setpoint on the knob by 2° or 4° (as set on the SETBACK
jumper). In heating mode, the temperature is lowered when 230 V AC voltage
appears at the NSB input.
Note:For the proper NSB function work, an appropriate cable
connection is required. TThe connection description is on the previous
page.
Valve Protection
Set the jumper to ON –
function. This function activates the thermostatic valve for 5 minutes once a
ON OFF
week to prevent valve against stuck (caused by limescale).
Operation algorithm selection
2°C 4°C
The thermostat gives a possibility to choose the mode of controlling the room
temperature by PWM algorithm (default) or hysteresis +/-0.5°C. The PWM
algorithm is designed for underfloor heating (for heating systems with high
inertia) – to precisely maintain the room temperature.
Technical informations
Power supply
Max. load
Output signal
Temperature control range
Control method
Communication
Dimension [mm]
. The thermostat will work
to enable or OFF – to disable the
230V AC 50 Hz
TRIAC 0.5 A
230V AC 50 Hz
5 – 30°C
PWM or
Hysteresis: ±0.5°C
Wired
85 x 85 x 30
