Titan Controls Apollo 2 Easy Manual

http://waterheatertimer.org/Woods-timers-and-manuals.html#cycle
®

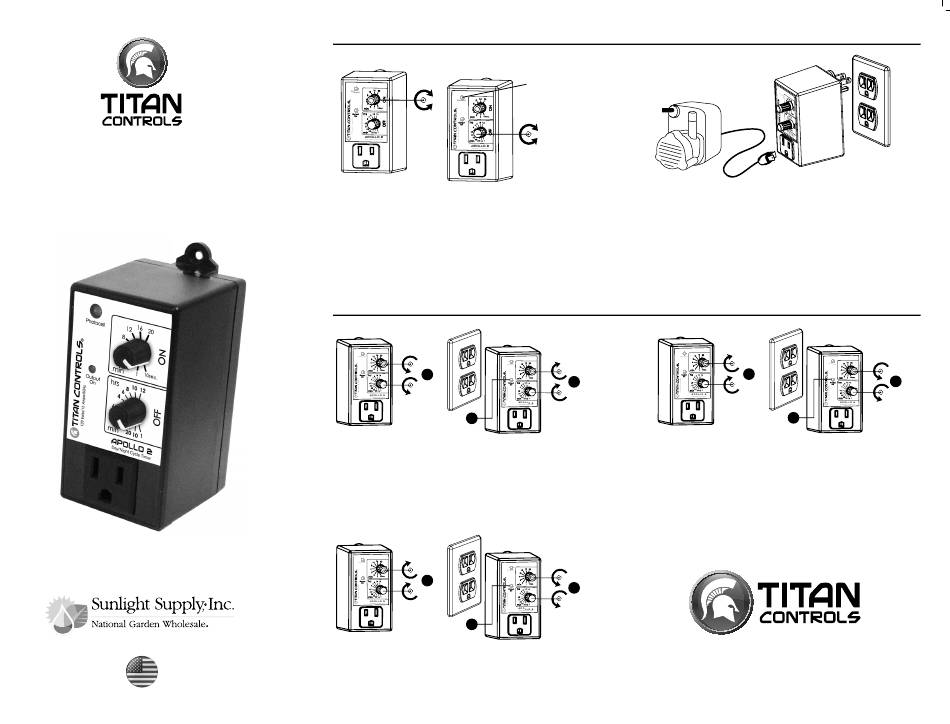

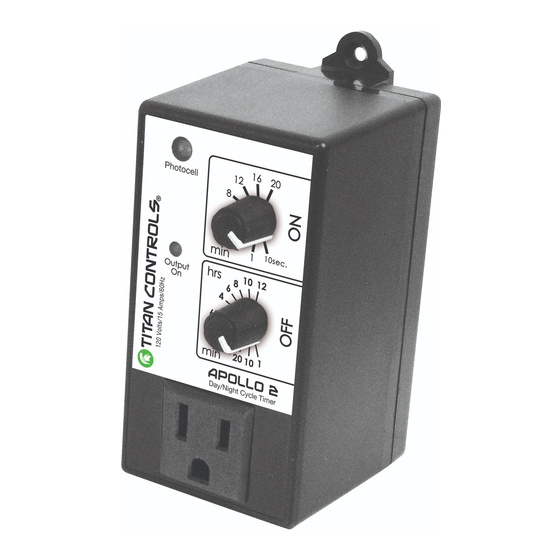

Apollo 2
Cycle Timer with Photocell
Easy Guide
Note: This unit has been set to perform day only control. For
night only or 24-hour control, refer to 'Optional' settings.
VANCOUVER, W ASHINGTON U.S.A.
INSTRUCTIONS – REV. A
Step 1
Set values for ON time & OFF time
ON Time: Duration for which equipment will run
OFF Time: Duration in between ON times

OPTIONAL SETTINGS

A
C
Change to '24-hour' control
A. Set both values to minimum
B. Plug in, then set both values to maximum within 5 seconds
C. Output light turns on or off according to actual setting
D. Follow instructions as shown in Step 1 & 2
A
C
Change to 'night only' control
A. Set both values to maximum
B. Plug in, then set bottom value to minimum, followed by top value to
minumum within 5 seconds
C. Output light turns on or off according to actual setting
D. Follow instructions as shown in Step 1 & 2
Light sensor
(photocell): see
Optional settings
Step 2
Plug into 120VAC outlet Connect equipment to be controlled
Installation is now complete
B
Change to 'day only' control
A. Set both values to maximum
B. Plug in, then set top value to minimum followed by bottom
value to minimum within 5 seconds
C. Output light turns on or off according to actual setting
D. Follow instructions as shown in Step 1 & 2
B
www.titancontrols.net
For technical assistance call us at
1-888-80-Titan or 1-888-808-4826.
