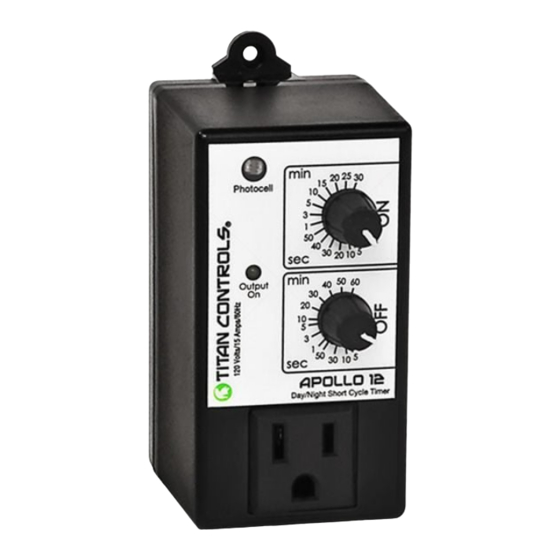

Apollo 12
Short Period Cycle Timer with Photocell
Easy Guide
Note: This unit has been set to perform 24-hour control.
For night or day only control, refer to 'Optional' settings.
VANCOUVER, W ASHINGTON U.S.A.
INSTRUCTIONS – REV A

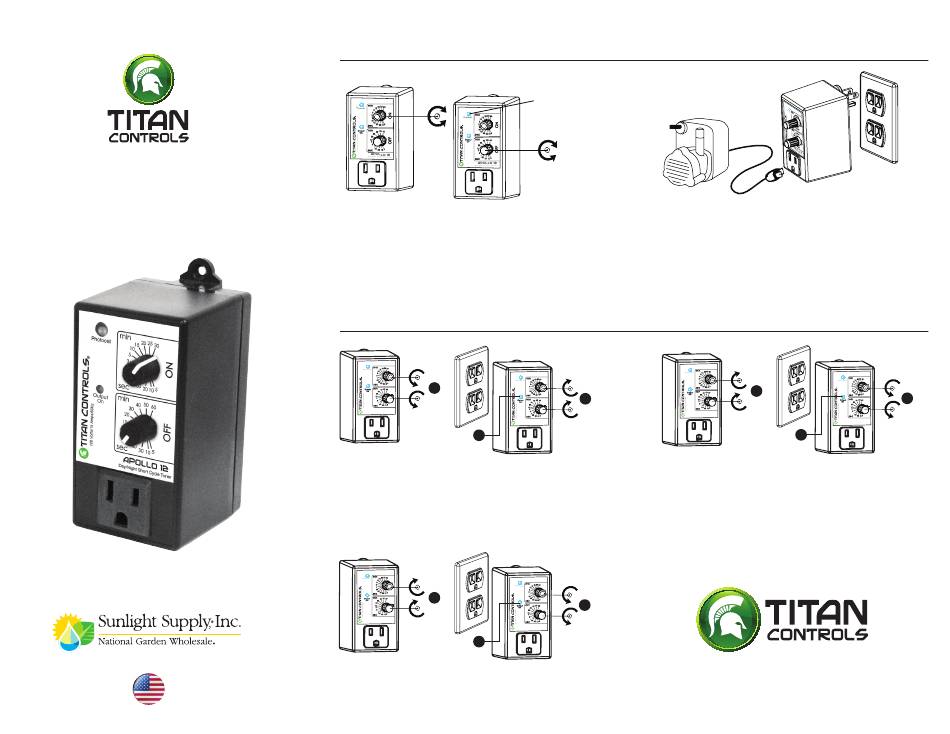

Step 1
Set Values ON time OFF time
ON Time: Duration for which equipment will run.
OFF Time: Duration in between ON times.
OPTIONAL SETTINGS
A
Apollo 12
Day/Night Short Cycle Time r
C
Change to 24-hour control
A. Set both values to minimum
B. Plug in, then set both values to maximum within 5 seconds
C. Output light turns on or off according to actual setting
D. Follow instructions as shown in Step 1 & 2
A
Apollo 12
Day/Night Short Cycle Time r
C
Change to 'night only' control
A. Set both values to maximum
B. Plug in, then set bottom value to minimum, followed by top value to
minumum within 5 seconds
C. Output light turns on or off according to actual setting
D. Follow instructions as shown in Step 1 & 2
Light sensor
(photocell): see
Optional settings
Step 2
Plug into 120VAC outlet. Connect equipment to be controlled.
Installation is now complete
B
Apollo 12
Day/Night Short Cycle Time r
Apollo 12
Day/Night Short Cycle Time r
Change to day only control
A. Set both values to maximum
B. Plug in, then set top value to minimum followed by bottom
value to minimum within 5 seconds
C. Output light turns on or off according to actual setting
D. Follow instructions as shown in Step 1 & 2
B
Apollo 12
Day/Night Short Cycle Time r
