For the Installation, Operation and Service of the
PANTERA
e v o l u t i o n

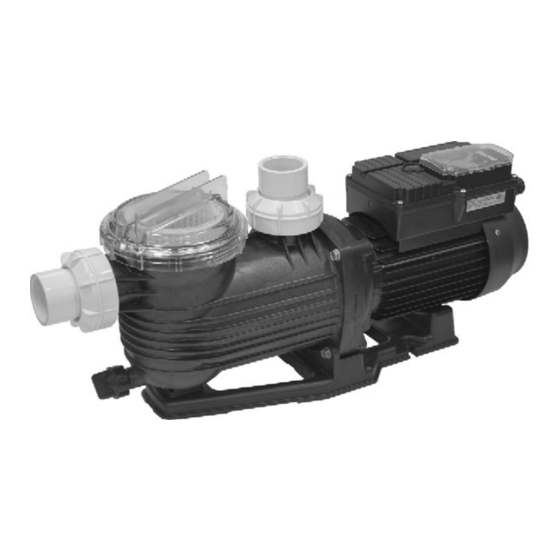

Dual Speed Pool Pump
P
A
ANTER
e v o l u t i o n
Should the installer or owner be unfamiliar with the correct installation or operation of this
type of equipment you should contact the distributor/manufacturer for the correct advice
before proceeding with the installation or operation of this product. The pump operator or
owner must be provided with this owner's manual.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Pentair ONGA Eco Select PANTERA evolution
Summary of Contents for Pentair ONGA Eco Select PANTERA evolution
- Page 1 For the Installation, Operation and Service of the PANTERA e v o l u t i o n Dual Speed Pool Pump ANTER e v o l u t i o n Should the installer or owner be unfamiliar with the correct installation or operation of this type of equipment you should contact the distributor/manufacturer for the correct advice before proceeding with the installation or operation of this product.
- Page 2 47 years. Established in 1967, Onga has a product to meet your every water need. Onga is part of the Pentair group, a global leader in swimming pool, spa and aquatic equipment. The business has built a reputation as an innovation leader, providing high performance, reliable and energy-efficient filters, controls, sanitizers, pumps, heaters, cleaners, and accessories for residential and commercial pool owners and operators.
-
Page 3: Table Of Contents
Table of Contents Page Features and Benefits Technical Information Model Data Hydraulic Performance Dimensions Installation Pump Positioning Piping Pool Outlets Electrical Equipotential Bonding Operation Priming the Pump Speed Selection Other modes Automation control Service & Maintenance Troubleshooting 12,13 Troubleshooting Guide 12,13 Spare Parts... -
Page 4: Features And Benefits
Features & Benefits The Pantera Evolution is the ideal pump for new or existing pools. Utilising efficient hydraulic design and the latest technology in permanent magnet, electronic control two speed motors, the Pantera Evolution has the perfect combination of efficiency and performance. The Pantera Evolution delivers energy savings and the power when you need it. -
Page 5: Technical Information
Technical Information Pantera Evolution Model: RPM: 1450RPM (default factory setting) High 2800RPM (default factory setting) Electrical Rating: 230-240V 50Hz single phase Rated Current: Low: 1.0A High: 5.2A Input Power (P1): Low: 223W High: 1180W Pump Power (P2): Low: 118W High: 950W IP Rating: IP25... -
Page 6: Hydraulic Performance
Technical Information Hydraulic Performance Pantera Evolution - Performance Chart 20.00 18.00 16.00 14.00 12.00 10.00 High - 2800RPM 8.00 6.00 4.00 Low - 1450RPM 2.00 0.00 Flow (L/min) Dimensions... -
Page 7: Installation
Installation The pump must be installed and serviced by a suitably qualified person in order to avoid hazard. Incorrectly installed or tested equipment may fail, causing severe injury or property damage. These instructions are a guide only. Should you the installer or owner of the product be unfamiliar with the correct installation or operation of this product you should contact a suitably qualified person for advice. -
Page 8: Pool Outlets
Installation 3. Pool Outlets Hazardous suction. Can trap hair or body parts, causing severe injury or death. Do not block suction. a) The pump suction system must provide protection against hazard of suction entrapment or hair entrapment/entanglement. The pool outlet piping must be in accordance with the latest AS1926.3 standard b) Suction outlet covers and skimmers must have been tested and found to comply with the latest AS1926.3 standard or ASME/ANSI specification for Suction Fittings. -
Page 9: Operation
Operation NEVER run pump dry. Running pump dry may damage seals, causing leakage and flooding. Fill pump with water before starting motor. Freezing conditions will damage the unit, as water expands as it freezes. Ensure that the Pantera Evolution is located so that it is not prone to freezing, or ensure that the product is disconnected and dried of water during cold conditions. -
Page 10: Speed Selection
Operation 2. Speed selection The Onga Pantera Evolution comes pre-programmed with the following default speeds: Press for low speed Press for high speed 1450RPM 2800RPM Cleaning with a suction cleaner Filtration and Backwashing water circulation filter. Operating some water features such Speed / Application as jets or waterfalls. -
Page 11: Automation Control
Operation 4. Automation control Warning! This procedure should only be Warning! Turn off pump power and remove undertaken by a trained technician. plug from outlet prior to making connection. 1. Turn off pump power and remove plug from electrical outlet 2. -
Page 12: Service & Maintenance
If there are, this could be a sign of a a fire hazard or choke the motor fan. leaking mechanical seal. Call a Pentair Service Agent immediately, to prevent damage to the motor. -
Page 13: Troubleshooting
Troubleshooting The Onga Pantera Evolution should only be serviced by certified Pentair service agents. For best results and to ensure warranty is not void, insist on use of only genuine Pentair service parts. To avoid dangerous or fatal electrical shock hazard, turn OFF power to pump and remove plug from power outlet before working on pump. - Page 14 Casing bolts are not tightened Switch off the power to the pump. Tighten the casing bolts or replace the the casing and motor. sufficiently; worn mechanical mechanical seal as required. seal requires replacing. Should problems persist, contact your nearest Pentair Service Agent.
-
Page 15: Spare Parts
Spare Parts Item Description Part No. MOTOR 801956 BASE 702509 NUT 5/16inW HEX ST/ST SEE FASTENERS KIT SHAFT SLEEVE SEE SEAL KIT ORING SHAFT SLEEVE SEE SEAL KIT YOKE AND LIP SEAL 412050 SCREW 5/16inW x 3/4in HWF S/S 702770 BAFFLE 305300 ORING CASING... - Page 16 +61 3 9709 5800 Fax: +61 3 9709 5888 © Information contained here-in remains the property of Pentair Pty Ltd. Any reproduction,display, publication, modification or distribution is strictly prohibited without the prior written permission of Pentair Pty Ltd. Disclaimer: Every endeavour has been made to publish the correct details in this owners manual.
