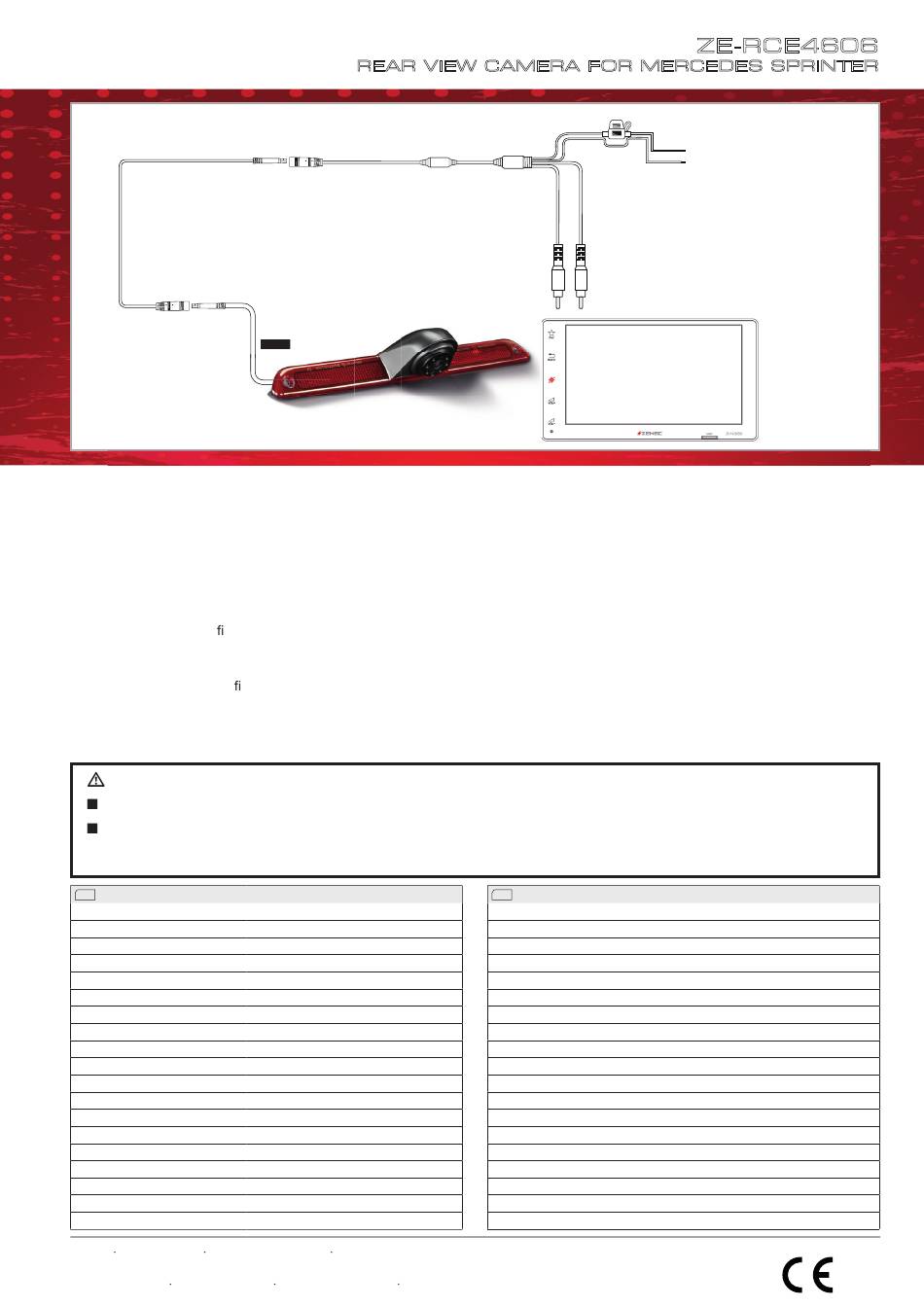

ZENEC ZE-RCE4606 Mounting Instructions

MOUNTING
INSTRUCTIONS
15.0 m
KEY FEATURES
• Compact, high-resolution rear view camera for MERCEDES Sprinter and VW Crafter vehicles
• Easy "Plug & Play installation
• Integrated microphone
• LDR controlled day / night mode with 6 night vision IR-LED's
• Manual adjustment of vertical image section in 3 steps
• Separable 3-part system cable, with cable lengths of 0.7m + 15m + 0.7m
DESCRIPTION:

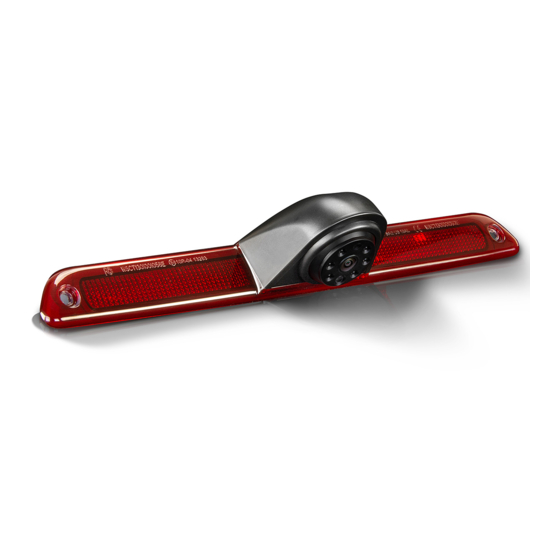

ZENEC's vehicle-speci c rear view camera ZE-RCE4606 replaces the original third brake light of your MERCEDES Sprinter or
VW Crafter.
Of course, you don´t have to do without the third brake light. The ZENEC camera module takes over the original brake light, for
simple „Plug & Play" retro t connecting to the vehicle-mounted cable.
An integrated microphone and an IR-LED night illumination system are part of the ZE-RCE4606 cam as well.
This product is compatible with a wide variety of 2-DIN A/V receivers of the aftermarket and the ZENEC E>GO product line up,
including ZENEC 2-DIN Infotainers and Naviceivers.
CAUTION:
Use the included connection cable exclusively. Altering or replacing it will void your warranty.
The camera is water- and dustproof and has been licensed according to the international standard IP68. However,
vehicle cleaning using high pressure water and steam jet devices may still lead to damage of IP68 rated camera models
by water intrusion. Keep a distance of at least one meter between the water nozzle and the camera housing.
EN Technical Specifications:
Image device:
Lens focal length:
TV system:
View angle:
Native sensor resolution:
Resolution of video-out:
Frame rate:
Signal to noise ratio:
Light sensitivity:
Video output:
White balance:
Backlight compensation:
Gamma correction:
Gain control:
Sync system:
Power supply:
Current consumption:
IP protection rating:
Operating temperature:
ZENEC Bohrturmweg 1 CH-5330 Bad Zurzach Switzerland
EU Legal Representative:
ACR S & V GmbH Industriestraße 35 D-79787 Lauchringen Germany
REAR VIEW CAMERA FOR MERCEDES SPRINTER
0.7 m 0.7 m
¹/ ³ " / 8.5mm Sony CCD sensor
f2.6
NTSC / 60 Hz
130°(D) x 102°(H) x 77°(V)
752 (H) x 494 (V) pixels
> 600 TV lines
60 fi elds/sec.
> 48 dB
0.1 Lux, 0 Lux if IR on
1.0 Vp-p, 75 ohms CVBS
Auto
Auto
0.45
Auto
Auto
DC 12V
150mA (DC12V) / ≤ 1800mW
IP68
-20°C~+70°C
2A fuse
0.7 m
Video / Audio Out
(connect to Moni-/Naviceiver)
DE Technische Spezifikationen
Kamerasystem:
Brennweite Linse:
TV System:
Betrachtungswinkel:
Native Sensor Aufl ösung:
Aufl ösung Ausgangssignal:
Bildwiederholrate:
Signal/Rauschabstand:
Lichtempfi ndlichkeit:
Video Ausgang:
Weißabgleich:
Belichtungskompensation:
Gamma Korrektur:
Helligkeitsabgleich:
Synchronisation:
Spannungsversorgung:
Stromverbrauch:
Schutzklasse:
Betriebstemperatur:
ZE-RCE4606
Red: CAMERA PWR (+12V)
Black: GND
¹/ ³ " / 8.5mm Sony CCD Sensor
f2.6
NTSC / 60 Hz
130°(D) x 102°(H) x 77°(V)
752 (H) x 494 (V) Pixel
> 600 TV Linien
60 Felder/Sek.
> 48 dB
0.1 Lux, 0 Lux wenn IR an
1,0 Vp-p, 75 Ohm CVBS
Automatisch
Automatisch
0.45
Automatisch
Automatisch
DC 12V
150mA (DC12V) / ≤ 1800mW
IP68
-20°C~+70°C
Rev. A
