ZENEC ZE-RVC90MT Mounting Instructions

MOUNTING
INSTRUCTIONS
RCA yellow: Connect to RVC video-in
KEY FEATURES

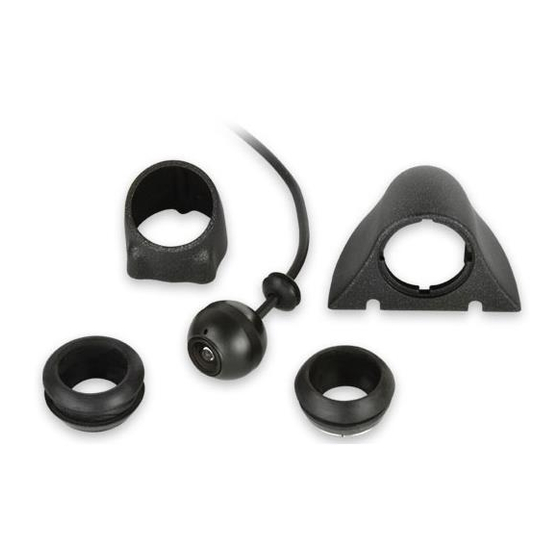

• Compact high resolution ball type rear view camera with four mounting adaptors
• Aluminum die cast housing
• 8 m length of main wire harness with 3.5 mm phone jack connector
DESCRIPTION:
This ZENEC rear view camera model has been developed for universal use in any vehicle due to four specific mounting adaptors,
that suit almost any installation location and scenario. The use of high quality parts and materials for best weather resistance
and longevity, as well as the clever construction according to IP68 protection class allow perfect operation in any target vehicle.
The ZE-RVC90MT offers a large 115° horizontal viewing angle and can be operated in inverted or non-inverted picture mode to
comply with a great variety of head units.
This product is compatible with all ZENEC moni- and naviceivers, as well as the ZENEC E>GO product line-up.
1
Zwei O-Ring Adapter für direkte Kameramontage
1
in Oberflächen von 2.0 mm und 4.0 mm Stärke.
Lochdurchmesser: 21.0 mm
Zwei kompakte Montageadapter aus Kunststoff mit
2
45° angewinkelter Kameraöffnung und Bodenplatte
aus Metall*
Grosser Montageadapter aus Kunststoff mit 30°
3
angewinkelter Kameraöffnung und Bodenplatte
aus Metall*
*Anmerkung: Montageadapter aus Kunststoff muss mit Kamera,
Gummi O-Ring und Bodenplatte aus Metall vormontiert werden.
Endmontage mit beiliegendem doppelseitig klebendem Stanzteil.
Metallsprengring am O-Ring muss beim Zusammenbau ins
Gehäuse zeigen.
ZENEC by ACR AG Bohrturmweg 1 CH-5330 Bad Zurzach Switzerland
EU Legal Representative: ACR S & V GmbH Industriestr. 35 D-79787 Lauchringen Germany
Black: GND
Green: Connect to GND for mirror image
Red: DC 5 ~ 24 V
2
ZE-RVC90MT
3.0 m
Fuse 0.5 A
Two rubber adapters for direct camera mounting
1
and 2.0 mm and 4.0 mm surface thickness.
Hole diameter for drilling: 21.0 mm
Two small 45° angled surface mount adapters with
2
metal base plate*
Big 30° angled surface mount adapter with metal
3
base plate*
*Note: Plastic housing must be preassembled with camera,
rubber adaptor and metal base plate. Use doubled sided
adhesive stamping part for final mounting of assembly.
Metall ring must point into plastic housing upon assembly.
REAR VIEW CAMERA
3.5 mm jack
4.0 m
8.0 m
3
Rev. C
