ZENEC ZE-RCE3702 Mounting Instructions

ZENEC ZE-RCE3702 Mounting Instructions

Rear view camera for fiat ducato

Advertisement

Quick Links

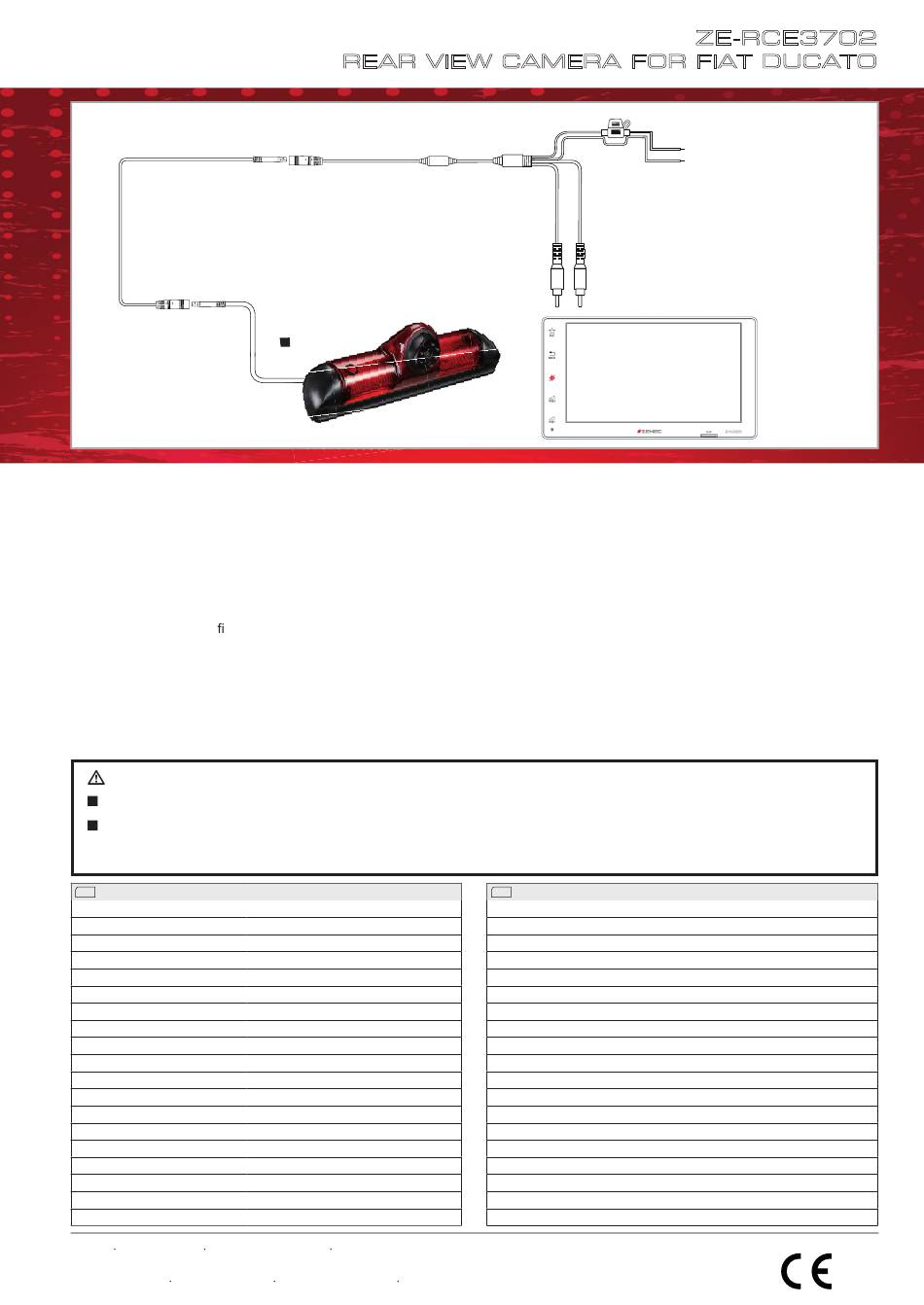

MOUNTING
INSTRUCTIONS
15.0 m
KEY FEATURES
• Compact, high-resolution rear view camera for FIAT Ducato, CITROËN Jumper and PEUGEOT Boxer vehicles
• Easy "Plug & Play installation
• Integrated microphone
• LDR controlled day / night mode with 6 night vision IR-LED's
• Manual adjustment of vertical image section in 3 steps
• Separable 3-part system cable, with cable lengths of 0.7m + 15m + 0.7m
DESCRIPTION:

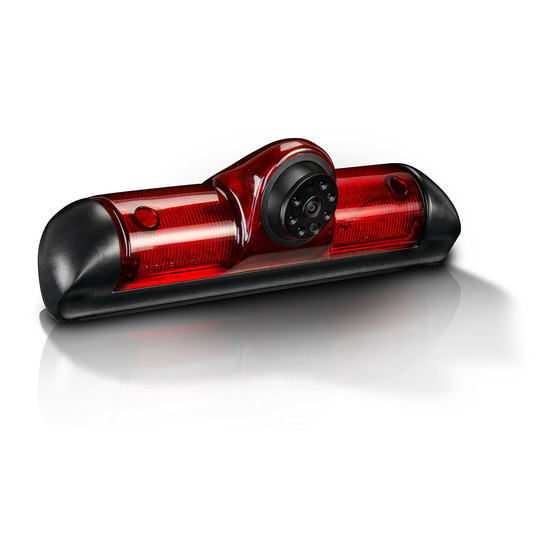

ZENEC's vehicle-speci c rear view camera ZE-RCE3702 replaces the original third brake light of your FIAT Ducato, CITROËN
Jumper or PEUGEOT Boxer.
Of course, you don´t have to do without the third brake light. An LED brake light is already integrated in the ZENEC camera
module, which will be easy via "Plug & Play" to connect to the vehicle-mounted cable.
An integrated microphone as well as the IR-LED night illumination system will support the ZE-RCE3702.
This product is compatible with a wide variety of 2-DIN A/V receivers of the aftermarket and the ZENEC E>GO product line up,
including ZENEC 2-DIN Infotainers and Naviceivers.
CAUTION:
Use the included connection cable exclusively. Altering or replacing it will void your warranty.
The camera is water- and dustproof and has been licensed according to the international standard IP68. However,
vehicle cleaning using high pressure water and steam jet devices may still lead to damage of IP68 rated camera models
by water intrusion. Keep a distance of at least one meter between the water nozzle and the camera housing.
EN
Technical
Specifications:
Image device:
Lens focal length:
TV system:
View angle:
Native sensor resolution:
Resolution of video-out:
Frame rate:
Signal to noise ratio:
Light sensitivity:
Video output:
White balance:
Backlight compensation:
Gamma correction:
Gain control:
Sync system:
Power supply:
Current consumption:
IP protection rating:
Operating temperature:
ZENEC Bohrturmweg 1 CH-5330 Bad Zurzach Switzerland
EU Legal Representative:
ACR S & V GmbH Industriestraße 35 D-79787 Lauchringen Germany
REAR VIEW CAMERA FOR FIAT DUCATO
0.7 m
0.7 m
¹/ ³ " / 8.5mm Sony CCD sensor
f2.6
NTSC / 60 Hz
130°(D) x 102°(H) x 77°(V)
752 (H) x 494 (V) pixels
> 600 TV lines
60 fi elds/sec.
> 48 dB
0.1 Lux, 0 Lux if IR on
1.0 Vp-p, 75 ohms CVBS
Auto
Auto
0.45
Auto
Auto
DC 12V
150mA (DC12V) / ≤ 1800mW
IP68
-20°C~+70°C
2A fuse
0.7 m
Video / Audio Out
(connect to Moni-/Naviceiver)
DE
Technische Spezifikationen
Kamerasystem:
Brennweite Linse:
TV System:
Betrachtungswinkel:
Native Sensor Aufl ösung:
Aufl ösung Ausgangssignal:
Bildwiederholrate:
Signal/Rauschabstand:
Lichtempfi ndlichkeit:
Video Ausgang:
Weißabgleich:
Belichtungskompensation:
Gamma Korrektur:
Helligkeitsabgleich:
Synchronisation:
Spannungsversorgung:
Stromverbrauch:
Schutzklasse:
Betriebstemperatur:
ZE-RCE3702
Red: CAMERA PWR (+12V)
Black: GND
¹/ ³ " / 8.5mm Sony CCD Sensor
f2.6
NTSC / 60 Hz
130°(D) x 102°(H) x 77°(V)
752 (H) x 494 (V) Pixel
> 600 TV Linien
60 Felder/Sek.
> 48 dB
0.1 Lux, 0 Lux wenn IR an
1,0 Vp-p, 75 Ohm CVBS
Automatisch
Automatisch
0.45
Automatisch
Automatisch
DC 12V
150mA (DC12V) / ≤ 1800mW
IP68
-20°C~+70°C
Rev. A
