Summary of Contents for Starrett 799A Series

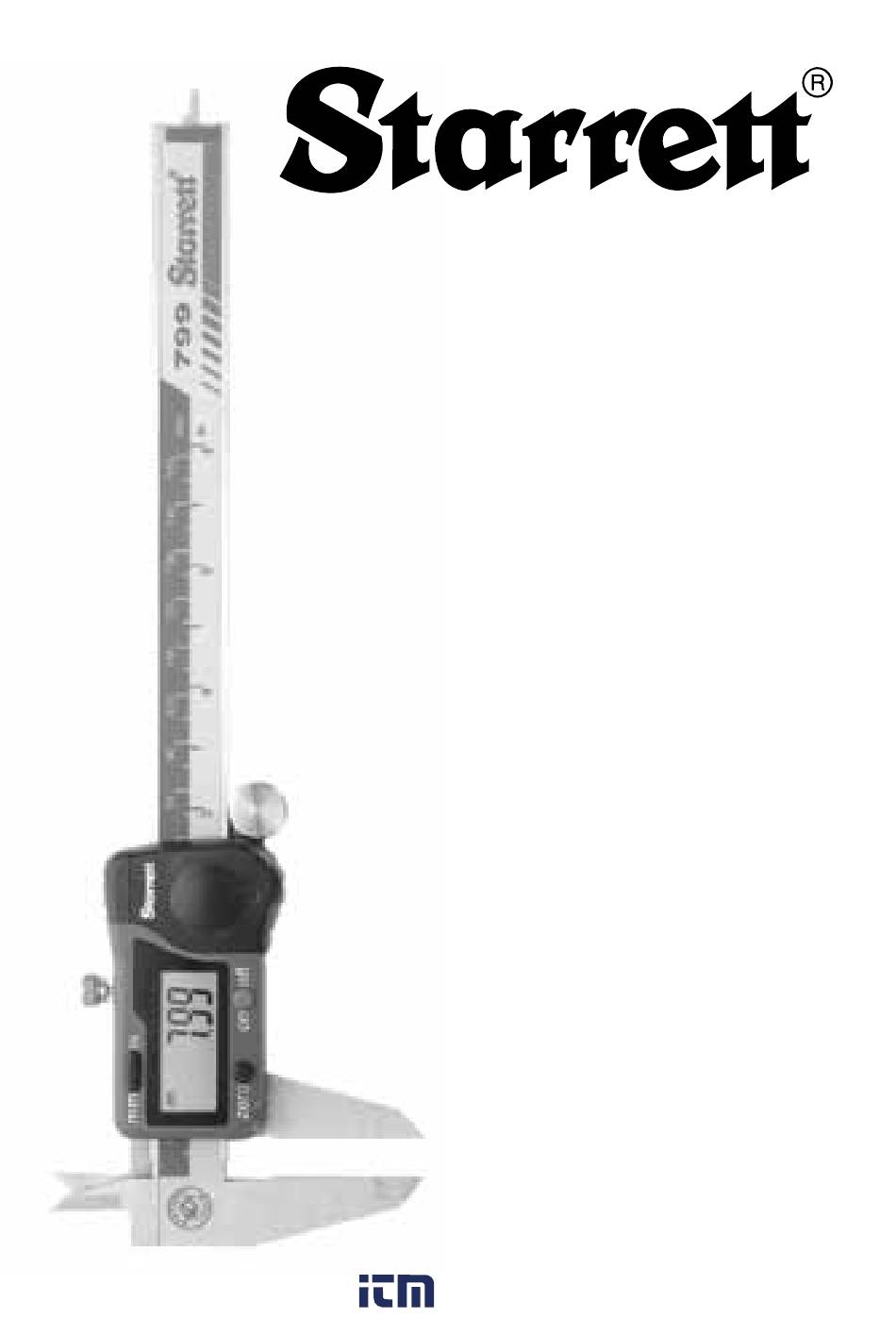

- Page 1 00.561.8187 information@itm.co www. .com...
- Page 2 5 - Slide 1 - Jaws for external measurement - Patas para medición de exteriores - Cursor - Mâchoires pour mesures extérieures - Coulisse - Ganasce per misurazione di esterni - Corsoio - Messschenkel für Außenmessung - Schieber - 滑动读数头 - 外尺寸测量卡爪...
- Page 3 9 - Battery cover 12 - “Zero” set button - Tapa de la batería - Botón para hacer “Cero” - ZERO - Couvercle de pile - Bouton de remise à “zéro” - Coperchio batteria - Pulsante “zero” - Nullpunkteinstellung “Zero” - Batteriefachdeckel - 电池盖...

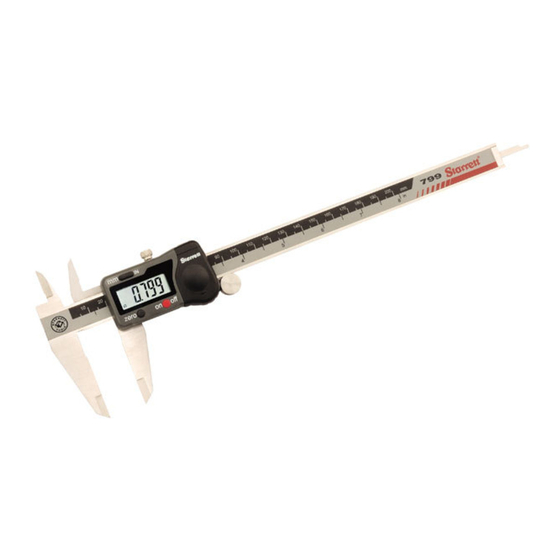

- Page 4 Electronic Digital Caliper 799A Series Characteristics Range Millimeter Inch mm (inch) Resolution 0,01 0,0005 Up to 300 (12”) ± 0,02 ± 0,001 Up to 100 (4”) Accuracy ± 0,03 ± 0,001 > 100 (4”) up to 300 (12”) (1) Resolution: Smallest difference between indications of a displaying device that can be meaningfully distinguished.
-
Page 5: Precautions When Using The Caliper
Precautions when using the Caliper ■ Do not measure a rotating part; it is dangerous and causes the faces in contact to wear. ■ Do not expose the caliper to direct sunlight or extreme temperatures. ■ Do not apply any voltage on any part of the caliper. Any external voltage may damage the circuitry of the caliper. - Page 6 Operating Instructions ■ Install the battery that comes with the instrument. See item “Installation/ Replacement of battery”. Once installed the caliper will come on automatically. ■ To select the measurement unit needed, press the “mm/IN” button (13). ■ To move the slide (5) loosen the slide locking screw (8). Use the thumb roll (11) to move the slide.
- Page 7 Operating Instructions ■ Scribing face: Close the jaws and press the “zero” button (12) to reset the display to zero (fig. 6A). Adjust the scribing reference face (10) to the part reference, slide the cursor (5) to the chosen measurement, lock it using the locking screw (8) and then scribe (fig.
-
Page 8: Installation / Replacement Of Battery
Installation / Replacement of battery Remove the battery cover (9) by sliding it in the arrow direction, then lift it. Install or replace the battery making sure that the positive pole faces up, and slide the cover back into place. Troubleshooting Failure Cause... - Page 9 00.561.8187 information@itm.co www. .com...
- Page 10 00.561.8187 information@itm.co www. .com...
