60 C 4: C
HAPTER ONFIGURING THE
Detail
Use the Detail tab to display detailed spanning
tree information for a port.

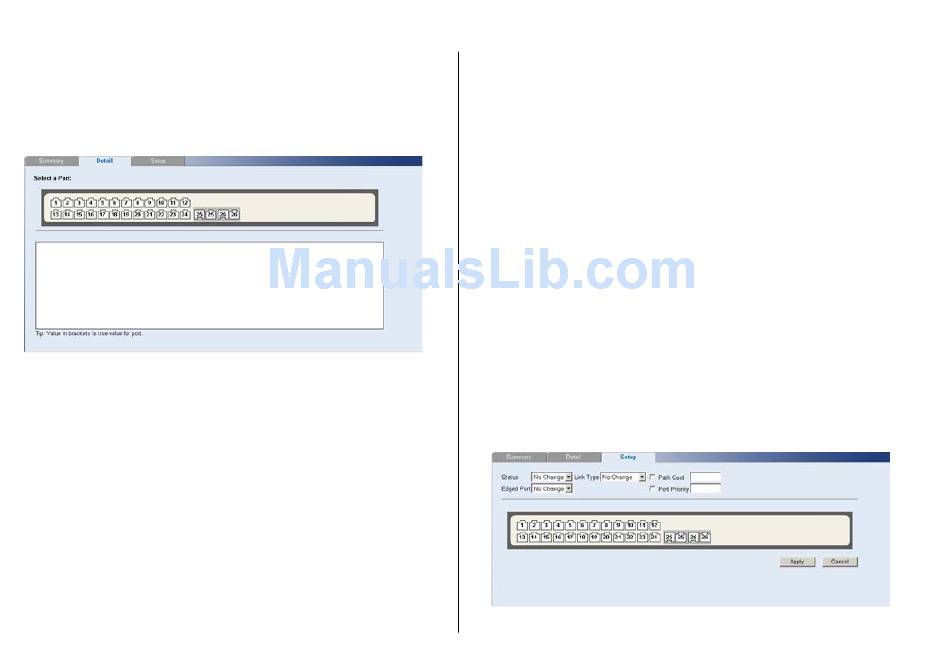

Figure 45 Spanning Tree Detail Screen
Setup
Use the Setup tab to configure the spanning
tree settings for each port. The following
options are available:
Status – Enables and disables spanning tree
■
for the port.
Edged Port – Enables and disables edged
■
port for the port.
S
WITCH
Link Type – Choose between Point-to-Point,
■
Shared, or Auto for the link type.
Path Cost – The path cost is used to
■
determine the best path between devices.
The path cost method is used to determine
the range of values that can be assigned to
each interface.
Port Priority – Used in selecting the root
■
device, root port, and designated port. The
device with the highest priority becomes the
STA root device. However, if all devices have
the same priority, the device with the lowest
MAC address will then become the root
device.
If you modify any of these settings, click Apply
to save your changes.
Figure 46 Spanning Tree Setup Screen
