EL-IPD-PRE-MSI
Multi Zone Preamp Audio Matrix
Quick Start Guide

Advertisement

Table of Contents
loading

Related Manuals for Elan EL-IPD-PRE-MSI

Summary of Contents for Elan EL-IPD-PRE-MSI

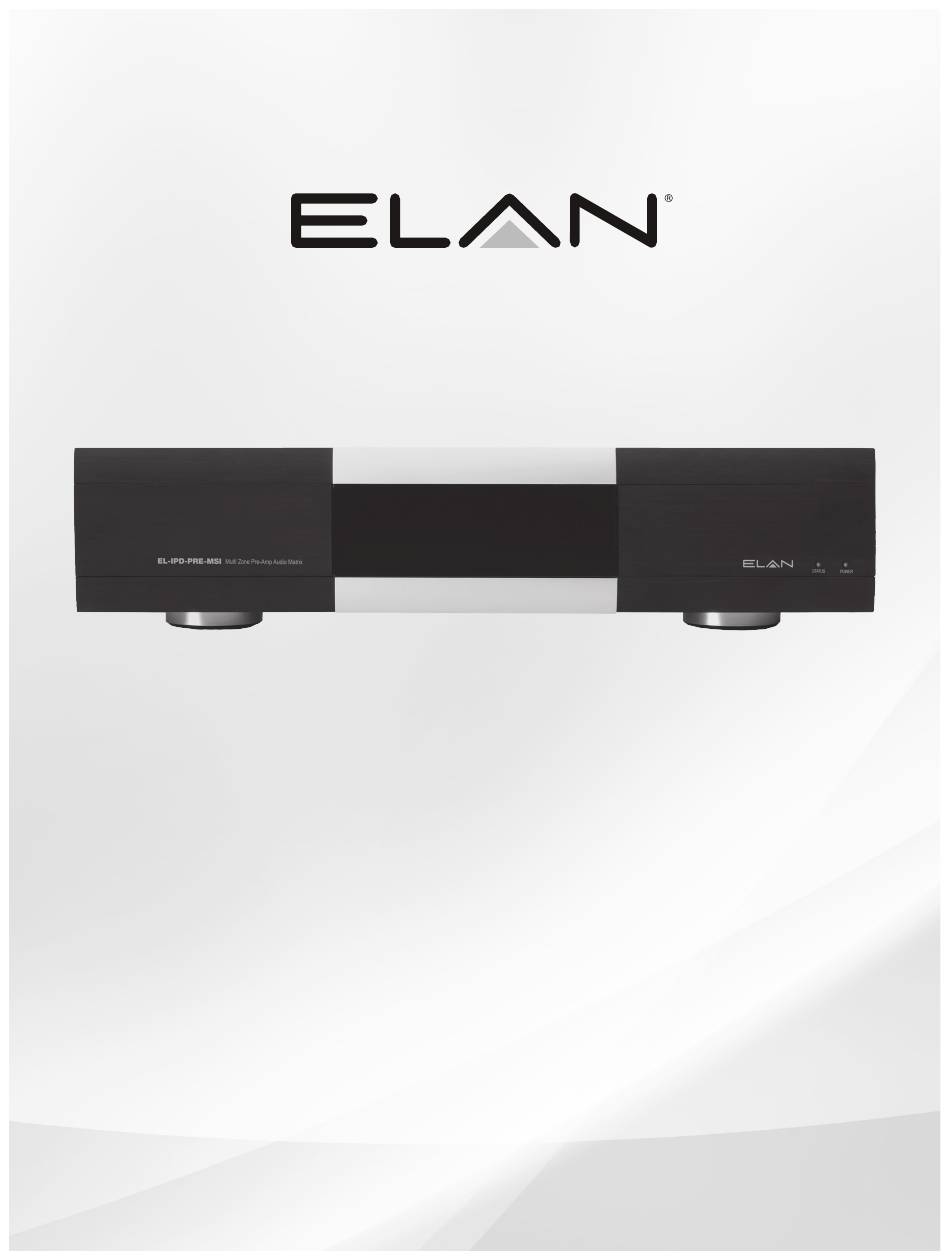

  • Page 1 EL-IPD-PRE-MSI Multi Zone Preamp Audio Matrix Quick Start Guide...

  • Page 2: Important Safety Instructions

    QUICK START GUIDE EL-IPD-PRE-MSI IMPORTANT SAFETY INSTRUCTIONS: Read these instructions. 18. Do not expose batteries to excessive heat such as sunshine, fire or the like. Keep these instructions. 19. Open flame sources, such as lighted candles, Heed all warnings. should NOT be placed on the apparatus.

  • Page 3: Fcc And Ic Information

    QUICK START GUIDE EL-IPD-PRE-MSI FCC AND IC INFORMATION: This Class B digital apparatus complies with Part 15 of the FCC rules and with Canadian ICES-003. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: This device may not cause interference and This device must accept any interference, including interference that may cause undesired operation of the device.

  • Page 4: What's Included

    QUICK START GUIDE EL-IPD-PRE-MSI OVERVIEW The EL-IPD-PRE-MSI Multi Zone PREAMP Audio Matrix can be used in a stand-alone configuration or with other amplifiers and pre-amps within the ELAN IP audio distribution family of products by adding the optional Dante Audio Networking Card.
  • Page 5 QUICK START GUIDE EL-IPD-PRE-MSI REAR VIEW Item Description Network 100/1000 Ethernet DHCP Enabled by Default • 1 RJ45 Jack Digital Audio Inputs • 3 Optical TOSLINK Inputs Stereo, PCM, 96kHz, 24-bit • 3 Coaxial RCA Inputs Line Level Audio Outputs Maximum input level: 2.0 VRMS...
  • Page 6 (6 digital, 16 mono / 8 stereo analog RCA and 1 stereo 3.5mm typically used as the doorbell input from an ELAN System Controller). Each RCA analog input can be configured as left, right or as mono. 12 line level outputs can be configured as 12 mono or 6 stereo output zones or as subwoofer out.
  • Page 7 Adding the EL-IPD-NAC-EXT -Network Audio Card gives the ability to combine multiple chassis in to one system. Combine the EL-IPD-PRE-MSI Multi Zone Preamp Audio Matrix with the EL-IPD-MTX-8CH Multi Zone Audio Matrix to add up to 12 outputs and up to 12 inputs. Using Dante Audio Networking, the two chassis can be linked using standard networking equipment.
  • Page 8 Adding the EL-IPD-NAC-EXT -Network Audio Card gives the ability to combine multiple chassis in to one system. Combine the EL-IPD-PRE-MSI Multi Zone Preamp Audio Matrix with the EL-IPD-AMP-EXT Multi Zone Audio Extender to add up to 8 zones of audio. Using Dante Audio Networking, the two chassis can be linked using standard networking equipment.
  • Page 9 QUICK START GUIDE EL-IPD-PRE-MSI If remote sources are needed such as a TV's audio output, the EL-IPD-PRE-SSI Local Audio Source input device can be added to the system send audio over the network. Using Dante Audio Networking, the two devices can be linked using standard networking equipment.

  • Page 10: Installation

    QUICK START GUIDE EL-IPD-PRE-MSI INSTALLATION If mounting the EL-IPD-PRE-MSI Multi Zone Audio Matrix in a cabinet, place it on a sturdy shelf. Ensure clear positive airflow within the cabinet by using fans. Locating the EL-IPD-PRE-MSI in a completely enclosed cabinet is not recommended due to heat build up.

  • Page 11: Audio Inputs

    The doorbell input is typcally used to route audio from the ELAN control system - including paging via the ELAN user interfaces and audio from video doorbells. POWERING THE SYSTEM...
  • Page 12 Does Dante require special switches? No. But we strongly recommend that Gigabit switches be used due to the clear advantages in performance and scalability. If using a 100Mbps, see the design guide and ELAN integration note. www.elanhomesystems.com...

  • Page 13: Troubleshooting

    QUICK START GUIDE EL-IPD-PRE-MSI TROUBLESHOOTING The two LEDs on the front face of the unit provide information regarding the status of the EL-IPD-PRE-MSI Multi Zone Audio Matrix. POWER INDICATOR Condition Amplifier Status Power/Network Status Power On, Booting Flashing Blue Power On, Connected to Network...

  • Page 14: Limited Warranty

    LIMITED WARRANTY Nortek Security & Control ( ‘NSC’ ) warrants the EL-IPD-PRE-MSI to be free from defects in materials and workmanship for the period of two years (2 years) from the date of purchase. If within the applicable warranty period above purchaser discovers that such item was not as warranted above and promptly notifies ‘NSC’...
  • Page 15 QUICK START GUIDE EL-IPD-PRE-MSI NOTES contact techsupport@elanhomesystems.com...
  • Page 16 1 (800) 472-5555 - US techsupport@elanhomesystems.com 1 (707) 283-5900 - International web: 1 (707) 283-5901 - Fax elanhomesystems.com 10025262 Rev-D 03/2020 ©2020 Nortek Security & Control, LLC. All rights reserved. ELAN is a registered trademark of Nortek Security & Control, LLC.
