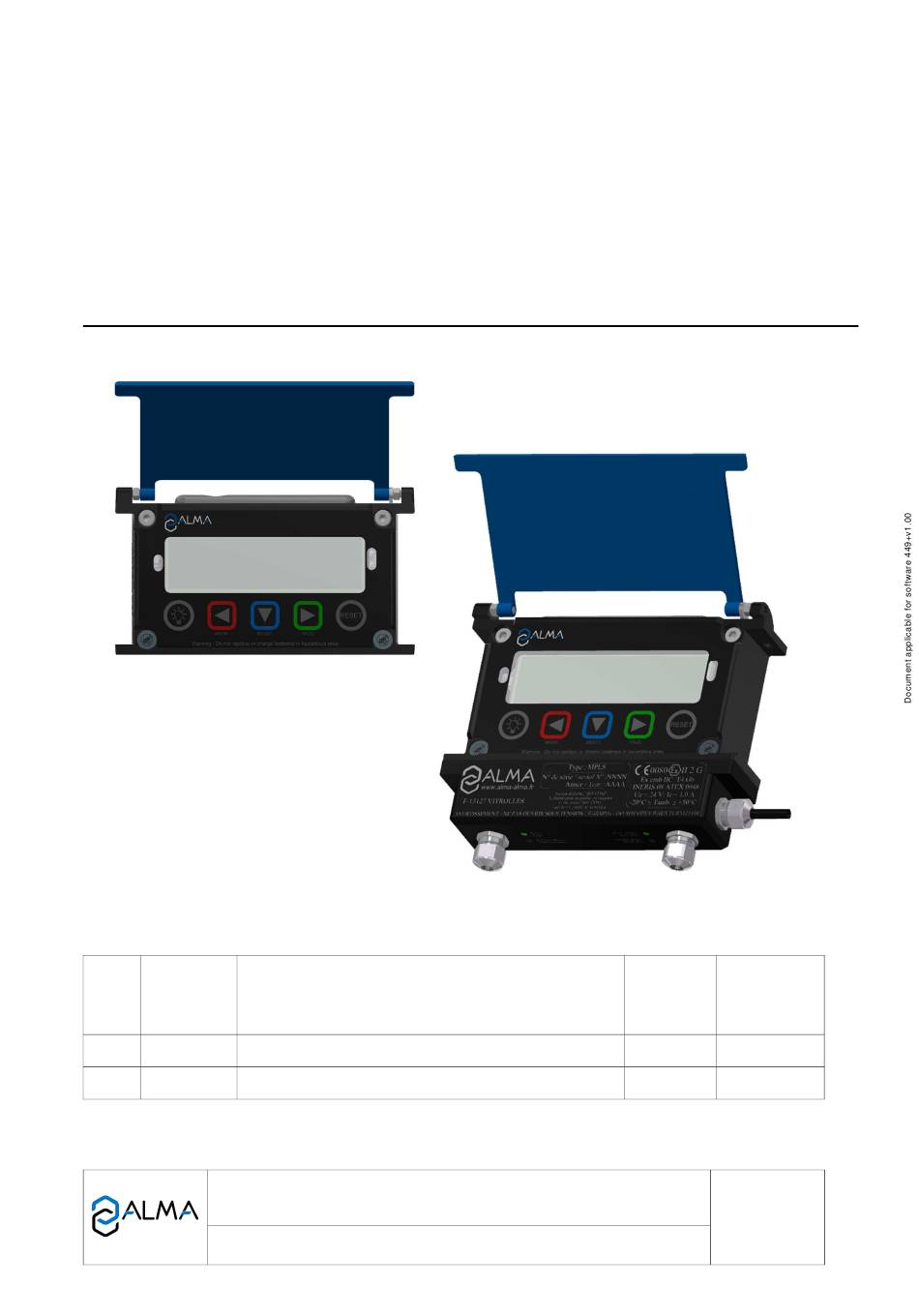

USER MANUAL

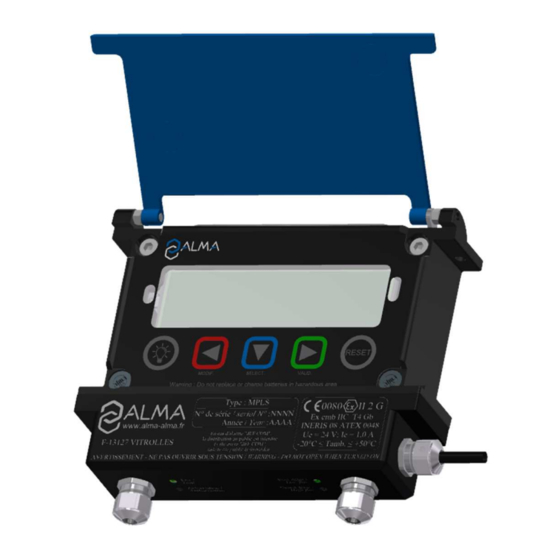

UNI-2 ELECTRONIC CALCULATOR-INDICATOR DEVICE
For measuring systems of liquids other than water
How to improve battery life,
Add menus Supervisor>Date format and
B
2020/05/18
Supervisor>Maintenance>Reboot,
Functional changes and improvements
A
27/01/2020 Creation
Issue
Date
Nature of modifications
MU 7095 EN B
[PJV158]
MU 7095 EN B
UNI-2 CALCULATOR-INDICATOR DEVICE
This document is available on www.alma-alma.fr
FORM DOC 120 A
DSM
SH
DSM
SH
Written by
Approved by
Page 1/32

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the UNI-2 and is the answer not in the manual?

Questions and answers

Related Manuals for Alma UNI-2

Summary of Contents for Alma UNI-2

  • Page 1 How to improve battery life, Add menus Supervisor>Date format and 2020/05/18 Supervisor>Maintenance>Reboot, Functional changes and improvements 27/01/2020 Creation [PJV158] Issue Date Nature of modifications Written by Approved by MU 7095 EN B UNI-2 CALCULATOR-INDICATOR DEVICE Page 1/32 This document is available on www.alma-alma.fr...

  • Page 2: Table Of Contents

    General presentation ......................4 Description ..........................5 Metrological features ......................6 OPERATING RECOMMENDATIONS ....................7 CONNECTED FEATURES AND SUPPLY OF THE UNI-2 ................. 7 Connected functions ......................7 Power supply ......................... 8 CONFIGURATION, SETTINGS AND CALIBRATION ................8 Configure the UNI-2 ....................... 8 Set the UNI-2 .........................
  • Page 3 Sub-menu Bluetooth ..........................19 5.5.2 Sub-menu Wi-Fi ............................19 5.5.3 Sub-menu CTD+ ............................20 List of alarms ........................20 CONFIGURE THE UNI-2: METROLOGICAL MODE ................22 Menu References ........................22 Menu Config......................... 22 6.2.1 Sub-menu Scales ............................22 6.2.2 Sub-menu Products ...........................

  • Page 4: Presentation

    It can be installed directly on an ALMA ADRIANE turbine measuring device or in an independent case. Then it is connected with a cable to an ALMA pulse emitter such as 2B00, 2H00 or 2HP0.

  • Page 5: Description

    FORM DOC 120 A 1.2 Description The UNI-2 has one display: Volume indication: Pictograms: - Bluetooth or Wi-Fi Date and time - Vm: Volume in metering conditions - GPS - V15 or V20 (according to the chosen system): Volume converted...

  • Page 6: Metrological Features

    Metrological mode: validate the displayed value or the selected menu In case of default: acknowledge the default The key is active when the UNI-2 is autonomous. Reset the volume to zero and record the data of the last measurement RESET Reset the display when entering data 1.3 Metrological features...

  • Page 7: Operating Recommendations

    + and - 3.1 Connected functions For stationary equipment, connectivity cannot be used if the battery-switch is open. The wireless connection enables the UNI-2 to communicate with an embedded computer or with a PC/tablet/portable device The connected functions of the UNI-2 are: •...

  • Page 8: Power Supply

    3.2 Power supply The UNI-2 is powered by two rechargeable batteries. These internal batteries have a five years lifetime. The UNI-2 operates with or without its charging module. It has at least one week battery life. For mobile equipment, use only the USB cable and the charging module ALMA Wireless charger, supplied with the equipment.

  • Page 9: Set The Uni-2

    FORM DOC 120 A NOTE: Only approved persons are permitted to remove the seal. Micro BP Metro 4.2 Set the UNI-2 You must set the UNI-2 before any operation. Then choose: • Menu to enable the possible external connections User>Connect •...

  • Page 10: Menu Metering

    - - - - - - - - the end of time-out Volume Volume Volume Volume !! If detection of flow direction is activated !! Time-out MU 7095 EN B UNI-2 CALCULATOR-INDICATOR DEVICE Page 10/32 This document is available on www.alma-alma.fr...

  • Page 11: Measurement With Uni-2 And Mpls

    5.1.2 Measurement with UNI-2 AND MPLS The UNI-2 MPLS operates with an external authorization (switch or other device). Appearance of the authorization resets the volume. Withdrawal of the authorization causes the end of measurement and the recording of the last measurement data. If required, to print the delivery ticket, you can add paper into the printer during pouring or at withdrawal of the authorization.

  • Page 12: Data Recording And Volume Reset

    You can print the ticket until next reset of the volume. Remove the ticket from the printer when printing is finished (example of a delivery ticket in ANNEX) MU 7095 EN B UNI-2 CALCULATOR-INDICATOR DEVICE Page 12/32 This document is available on www.alma-alma.fr...

  • Page 13: Menu Connect

    If the values are preceded by this display ‘-------‘; it means they are no longer guaranteed. 5.3.1 Sub-menu Last Meas. This menu displays the information of the last measurement. Information displayed depends on the UNI-2 configuration. Last meas. Volume: xxx [Ech_Vol] Average flow: xxx [Ech_Deb] Mean temper.: +xx.x °C...

  • Page 14: Sub-Menu Totalizers

    Record xxx/hh.mm Memory Reference Available information depends on the UNI-2 configuration. Temperature, converted volume, and mass are displayed if the temperature option is activated. The measured gas volume is displayed for information only, it has no metrological value. Record xxx/hh.mm...

  • Page 15: Menu Supervisor

    5.4.1 Sub-menu Calibration Measure the accuracy of the measuring system during the calibration. It is available after a measurement. With UNI-2 MPLS, remove the authorization. NOTE: Only approved persons are permitted to remove the seal. Volume: xxx [Ech_Vol] Volume gauge: xxxx [Ech_Vol] Er: +xx.xx% Coeff: xx.xxxx p/L...

  • Page 16: Sub-Menu Parameters

    Meas. System Date time e.g.: Reference Device Turbine Meas. System Config. Vol. Units Scales Vol. Digits Flowrates Product 1 Products Name Density tb Correction Product 9 MU 7095 EN B UNI-2 CALCULATOR-INDICATOR DEVICE Page 16/32 This document is available on www.alma-alma.fr...
  • Page 17 Rcs thres RCS minimum RCS maximum Auto save MPLS Ref. MPLS:ON Lic. Plate Flow.LF-HF Vol.HF-LF Lo.flow goal Hi.flow goal Not used Valve type Embe. Comp. Pressure MU 7095 EN B UNI-2 CALCULATOR-INDICATOR DEVICE Page 17/32 This document is available on www.alma-alma.fr...

  • Page 18: Sub-Menu Maintenance

    : Information about the software, the database and the app Soft. inf. : Information about peripherals (Wi-Fi/Bluetooth and GPS) Periph.inf. : When blocked, the UNI-2 reboots. Metrological and supervisor parameters Reboot are saved as well as the measurements recording MU 7095 EN B...

  • Page 19: Sub-Menu Language

    Connected / Disconnected Name A0000 : Status of the Bluetooth connection State : Assign a Bluetooth device name to UNI-2 (alphanumeric value such as the Name serial number for example) 5.5.2 Sub-menu Wi-Fi Characteristics of the wireless network access point...

  • Page 20: Sub-Menu Ctd

    + and - : Wi-Fi network name Network name : Wi-Fi network password Password Modbus : UNI-2 Modbus identifier between 0 and 255 Modbus ID : TCP/IP access port for Modbus protocol Modbus Port 5.5.3 Sub-menu CTD+ CTD+ Nb.
  • Page 21 Failure Problem with the transfer of the files to the CTD+ See GU 7110 Bluetooth module initialization problem or low Charge the batteries or restart the UNI-2 via the menu Init Bluetooth batteries Supervisor>Maintenance>Reboot Charge the batteries or restart the UNI-2 via the menu...

  • Page 22: Configure The Uni-2: Metrological Mode

    The configuration parameters can only be modified by pressing the micro BP Metro on the electronic board. Exit the METROLOGICAL MODE by pressing the micro BP Metro. The UNI-2 resets. The option to display the volume (volume in metering conditions or volume converted to base...

  • Page 23: Sub-Menu Products

    Product 1 Products Name Density tb Correction Product 9 You can configure 9 different products. : Enter the product name (max 8 alphanumeric characters) Name MU 7095 EN B UNI-2 CALCULATOR-INDICATOR DEVICE Page 23/32 This document is available on www.alma-alma.fr...
  • Page 24 0000 to remove the product from the list displayed in USER mode Select correction product. Correction If Density tb≤750 Correction=ON. Otherwise Correction=OFF The UNI-2 is configured as follows: Product 1 Product 2 Name Name GASOIL UNLE-LS 0830 kg/m 0730 kg/m...

  • Page 25: Menu Meas. System

    Kv 2 When parameters are set to zero, parameters Flowrate 1 Flowrate 2 Coeff.2 are not applied. Kv 2 Adjustment of coefficients for several flowrates: MU 7095 EN B UNI-2 CALCULATOR-INDICATOR DEVICE Page 25/32 This document is available on www.alma-alma.fr...

  • Page 26: Sub-Menu Flowrates

    Delay choice made for the scale interval. Not applicable without gas detectors : Accuracy class of the measuring system. Authorized values: 0.5 or 1 Class MU 7095 EN B UNI-2 CALCULATOR-INDICATOR DEVICE Page 26/32 This document is available on www.alma-alma.fr...

  • Page 27: Sub-Menu Direction

    : Choose to enable display and memorization of volumes for loading Load. disp. direction 6.3.5 Sub-menu Temperature This menu is an option. It is used to calibrate the temperature into the UNI-2. See maintenance sheet FM 8513 Enable Temperature Calibration +00.00 °C...

  • Page 28: Sub-Menu Sensors

    For example, the parameter can have the value that follows: Auto save=060. Automatic recording with time-out 60 seconds UNI-2 MPLS This parameter is zero. Withdrawal of the authorization causes recording of the measurement data. MU 7095 EN B UNI-2 CALCULATOR-INDICATOR DEVICE Page 28/32 This document is available on www.alma-alma.fr...

  • Page 29: Sub-Menu Mpls

    FORM DOC 120 A 6.3.9 Sub-menu MPLS This menu must be activated if the UNI-2 is associated to an MPLS device. Enable MPLS MPLS Ref. 00000 Lic. Plate AA000AA Flow.LF-HF 0000.0 [Ech_Deb] Vol.HF-LF 00000 [Ech_Vol] 0000.0 [Ech_Deb] Lo.flow goal Hi.flow goal 0000.0 [Ech_Deb]...

  • Page 30: Menu Date Time

    : No time change when the season changed No season : Winter-time (at commissioning) Winter : Summer-time (at commissioning) Summer Time change is done in USER mode with the menu Supervisor>Season MU 7095 EN B UNI-2 CALCULATOR-INDICATOR DEVICE Page 30/32 This document is available on www.alma-alma.fr...

  • Page 31: Annex

    En cas de litige, les resultats de mesurage memorises par l’indicateur font foi. In case of dispute, the measurement results stored by the main indicating device providing proof. MU 7095 EN B UNI-2 CALCULATOR-INDICATOR DEVICE Page 31/32 This document is available on www.alma-alma.fr...

  • Page 32: Related Documents

    Maintenance sheet: Replacement of the battery on the CTD+ Maintenance sheet: Adjustment of an ALMA measuring system FM 8512 equipped with a UNI-2 FM 8513 Maintenance sheet: Adjustment of temperature in the UNI-2 MU 7095 EN B UNI-2 CALCULATOR-INDICATOR DEVICE Page 32/32 This document is available on www.alma-alma.fr...
