Merit Mr. VIPS Removal/Installation Instructions

OBSERVE PRECAUTIONS FOR HANDLING ELECTROSTATIC DEVICES
Removal/Installation of Power Supply -
1. Turn off and unplug the game.
2. Unlock and remove the rear door.
3. Unplug the IEC connector from the power supply.
4. Disconnect all connections to the main power supply harness.
5. If the power supply is fastened to the game with a metal strap (see Figure 1) and double-sided
tape, remove the 2 screws fastening the strap, then carefully pull the power supply off the
double-sided tape and out of the game. For games without the metal strap, remove the 2
screws fastening the power supply to the game (see Figures 2 and 3).
1. Install the new power supply in the game in the same manner as the old power supply and
fasten it with the existing hardware. If applicable, use double-sided tape to ensure the power
supply is firmly held in place.
2. Reconnect all connections to the main power supply harness.
3. Plug the IEC connector into the new power supply.
4. Replace and lock the rear door.
5. Plug in and turn on the game.
SCREWS
FASTENING
METAL
STRAP
(TOP AND
BOTTOM)
METAL
STRAP

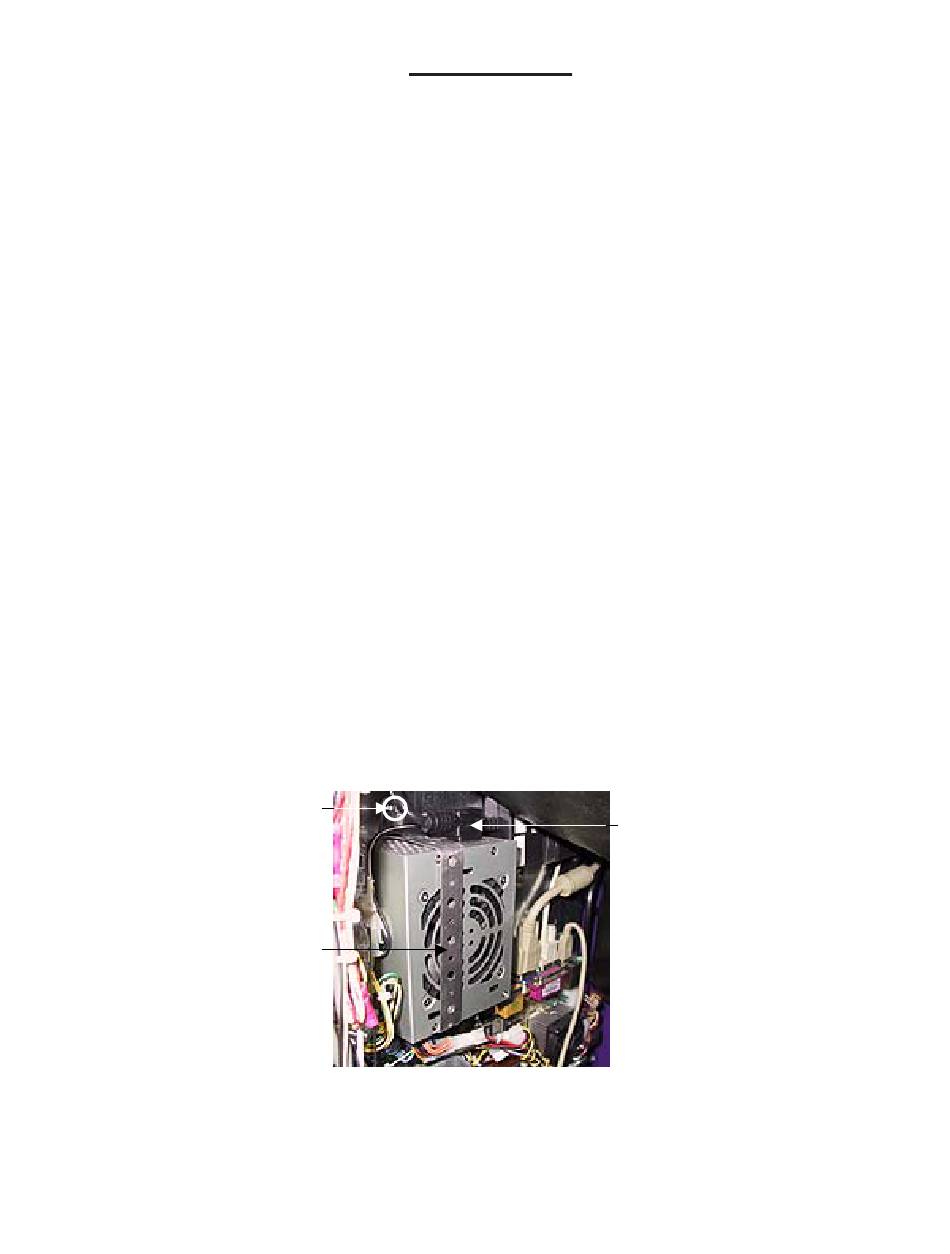

FIGURE 1 - CLOSEUP OF POWER SUPPLY WITH METAL STRAP

Troubleshooting Information - Removal/Installation of Major Assemblies - Mr. VIPS
COPYRIGHT © 2004 MERIT INDUSTRIES, INC.
ATTENTION:
Mr. VIPS

Power Supply Removal

Power Supply Installation

Megatouch FORCE Technical Reference Manual
IEC
CONNECTOR
