Manual Override - Inside Frame

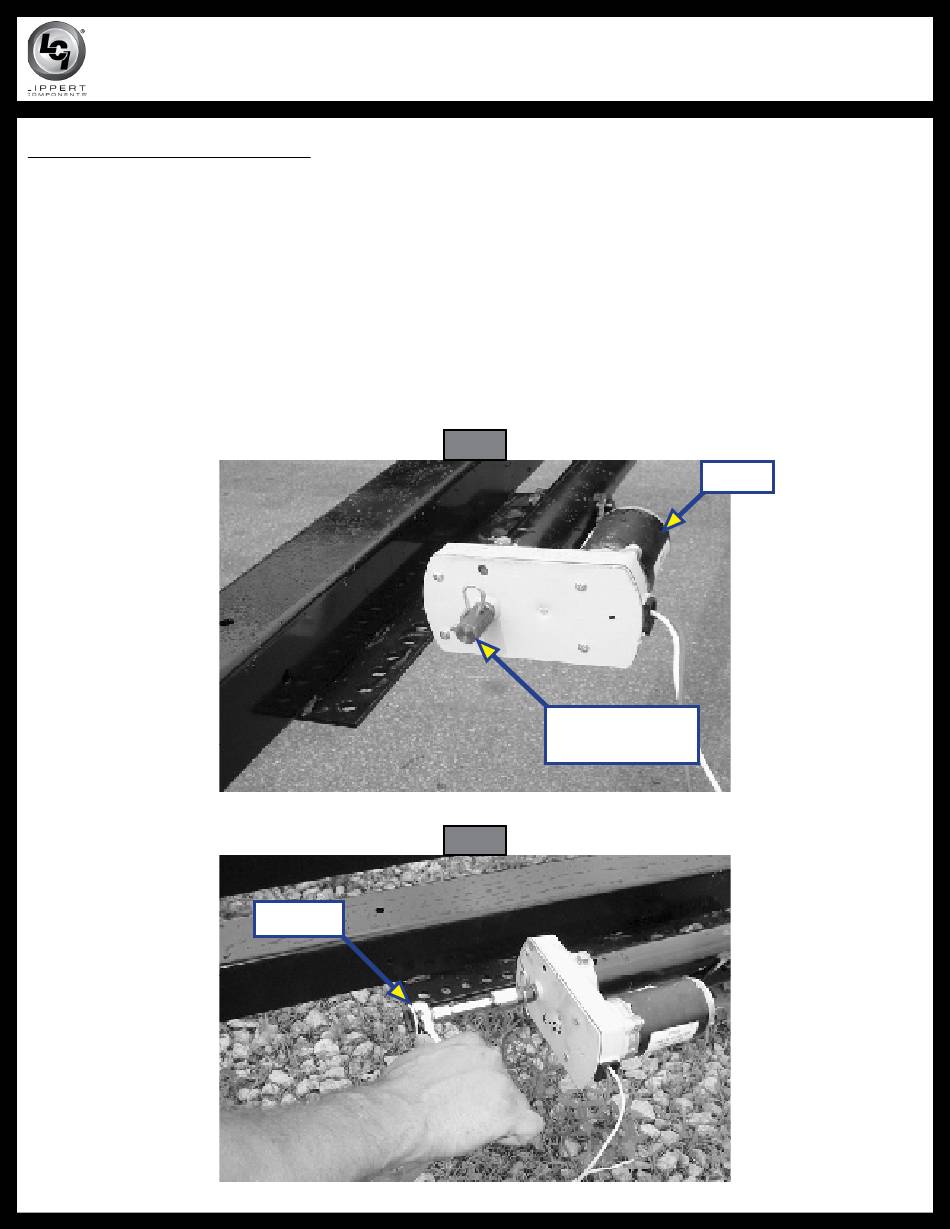

Locate the hex head crank extension at the top of the actuator inside the chassis main frame (Fig. 3). Using a
3/4" socket and ratchet (Fig. 4), rotate the extension clockwise to retract the slide-out and counter clockwise
to extend the slide-out. It is important to note that you DO NOT need to attempt to disengage the motor as
the actuator is "manual ready."
NOTe: Use Extreme Caution when extending and/or retracting room using the manual override feature. It
is possible to operate the slide-out beyond the maximum extension and/or retraction and damage
the slide components, slide room structure or trim components.
NOTe: The gears can be stripped out if the room is manually retracted/extended to its fullest extent and
the operator continues to rotate the manual override. Any damage due to misuse of the Manual
Override feature will disqualify any and all claims to the Limited Warranty.
