Summary of Contents for inogeni SHARE2U
- Page 1 Dual USB 2.0 Video Mixer to USB 3.0 Converter User Guide v1.10 Thank you! You have just acquired the finest and easiest to use tool for simultaneous capture of two streams of uncompressed video with audio for your computer. Easy, No Drivers, No Setup ! Versatile ! Compatible with all Apps !

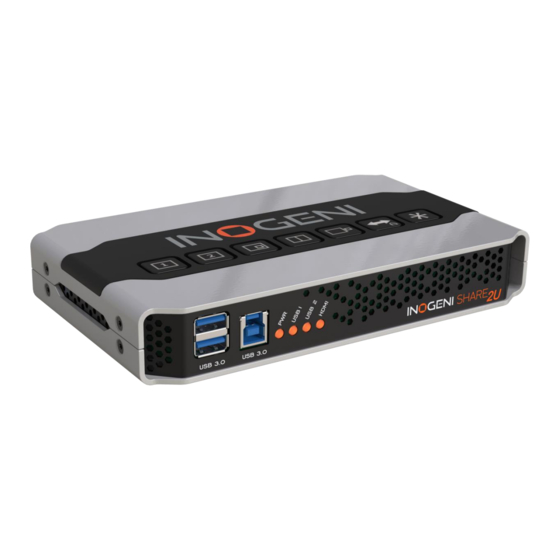

- Page 2 Professional grade full-metal enclosure. OVERVIEW The INOGENI SHARE2U Converter is the most easy and reliable tool for simultaneous capture and mix of two video sources into one single USB stream with audio for your PC for recording, videoconferencing, lecture capture and streaming applications. No driver installation is necessary and it will work on all motherboards and USB 3.0 chipsets.
-
Page 3: Device Connectors
DEVICE CONNECTORS CONNECTION DIAGRAM INOGENI SHARE2U User Guide – V1.10 – February 9, 2021... -
Page 4: Specifications
2x USB 3.0 ports for expansion purposes. The devices connected will appear to the expansion host. Audio Audio input 2-channel LPCM 48kHz audio from Line input or embedded in HDMI Audio output 2-channel LPCM 48kHz audio Line level INOGENI SHARE2U User Guide – V1.10 – February 9, 2021... - Page 5 Runs with all software compatible to DirectShow, V4L2, QuickTime and Compatibility AVFoundation. Dimensions 18.5 x 11 x 3 [W x L x H, cm] Weight Power 12V, 700mA (adapter included) UPC Code 040232633843 Origin Canada Harmonized 8517.62.000.900 Code INOGENI SHARE2U User Guide – V1.10 – February 9, 2021...
- Page 6 TOP USER BUTTONS These mixer buttons have the same function as INOGENI Control App software. Input 1 to full screen. Input 2 to full screen. Click a second time on the button to switch between USB2 and HDMI if both sources are present.
-
Page 7: Serial Communication Protocol
Picture in Picture at bottom left corner where Input 1 is the background <PPBL2> Picture in Picture at bottom left corner where Input 2 is the background <SAVE> Save the current configuration onboard for future use INOGENI SHARE2U User Guide – V1.10 – February 9, 2021... - Page 8 Y = 1 to 3, for preset 1, 2 and 3 <INV X Y> Video source flip. X = 1, for USB1 The function works for specific cameras like Logitech ® Rally, MeetUp and PTZ Pro. INOGENI SHARE2U User Guide – V1.10 – February 9, 2021...
- Page 9 Adjust audio output level over HDMI output. Parameter is 2-complement. X = 166 to 6 For example, X = 0 means no audio modification. X = 255 means -1 dB audio gain. X = 166 is MUTE value. INOGENI SHARE2U User Guide – V1.10 – February 9, 2021...
- Page 10 SWITCHES” section of this document for more details. Check the user manual of the INOGENI REMOTE for more details. For SHARE2U and CAM series – You need to wire up a RJ45 cable to a terminal block plug. Do not plug a RJ45 cable between the INOGENI device and the REMOTE.
-
Page 11: Lan Interface
Picture in Picture at top right corner where Input 2 is the background $PPTL1$ Picture in Picture at top left corner where Input 1 is the background $PPTL2$ Picture in Picture at top left corner where Input 2 is the background INOGENI SHARE2U User Guide – V1.10 – February 9, 2021... - Page 12 Saves current position to camera preset memory. X = 1, for USB1 = 2, for USB2 The function works for specific cameras like Logitech ® Rally, MeetUp and PTZ Pro. INOGENI SHARE2U User Guide – V1.10 – February 9, 2021...
-
Page 13: Dip Switches
Frame buffer frequency is set to 50Hz. Reserved Reserved Disable 5V on terminal block. (default) Enable 5V on terminal block. This switch must be set in order to power up the connected remote. INOGENI SHARE2U User Guide – V1.10 – February 9, 2021... -
Page 14: Audio Control
This mode mixes audio from all USB 2.0 and analog inputs. HDMI input audio is always mixed with the USB 2.0 and/or analog inputs. You can mute HDMI audio by clicking on MUTE button. INOGENI SHARE2U User Guide – V1.10 – February 9, 2021... - Page 15 Available if USB device supports audio output INOGENI CONTROL APP The INOGENI Control App allows you to control and monitor video sources. The device has its own application in order to control the device using the USB HID interface. INOGENI SHARE2U User Guide – V1.10 – February 9, 2021...
- Page 16 Visit the Software Update web page under Support -> Software Tools for more details. CRESTON MODULES You can use the Crestron modules in order to control the INOGENI SHARE2U device using the serial or the IP connections. These modules are available on our website under the section Software Update. Refer to the Help file on how to use the modules.
- Page 17 © Copyright 2021 by INOGENI INC. All Rights Reserved. INOGENI name and logo are trademarks or registered trademark of INOGENI. Use of this product is subject to the terms and conditions of the license and limited warranty in effect at the time of purchase. Product specifications can change without notice.
