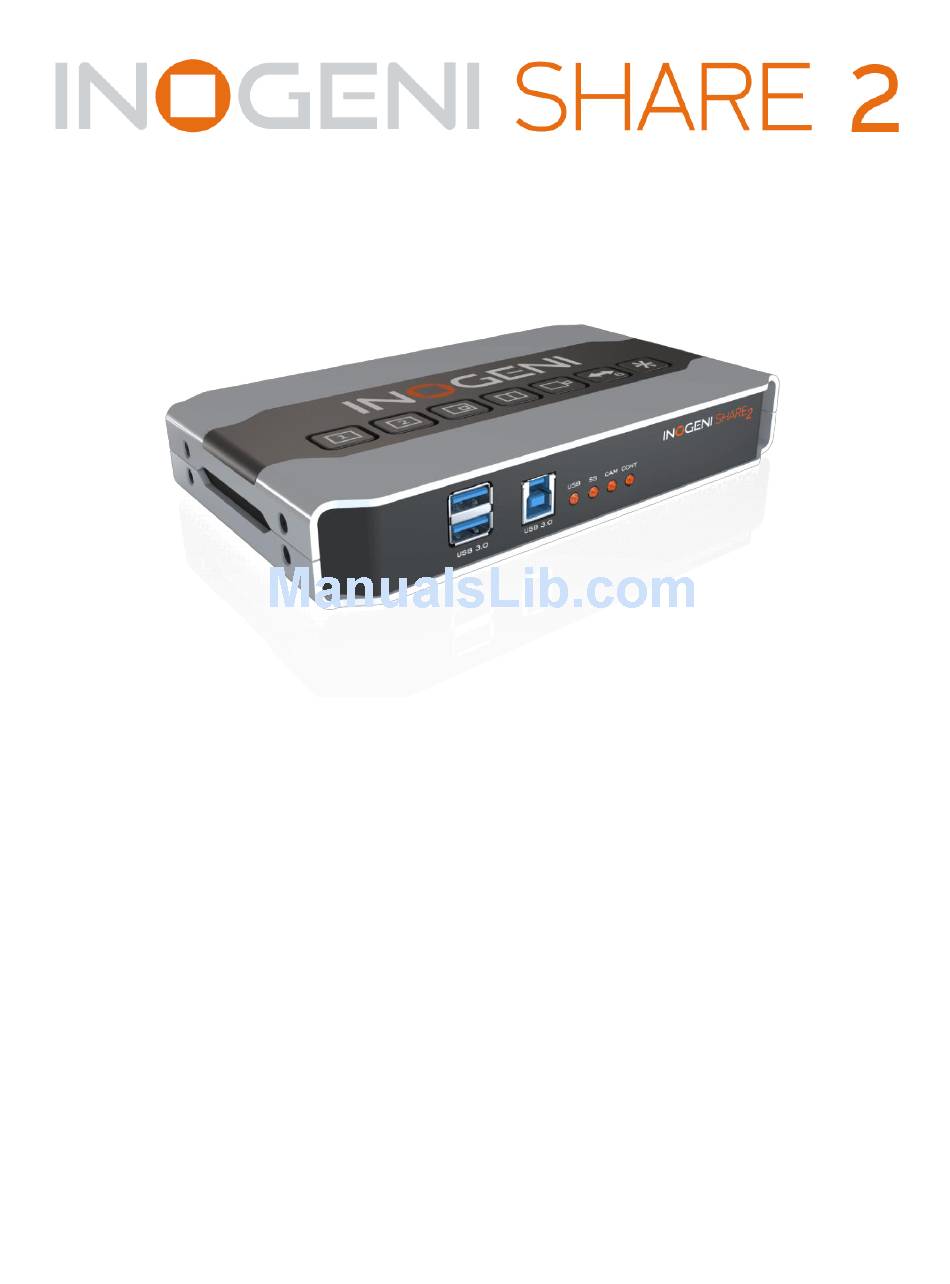

- Page 1 Dual Video Mixer to USB 3.0 Converter User Guide Thank you! You have just acquired the finest and easiest to use tool for simultaneous capture of two streams of uncompressed video with audio for your computer. Easy, No Drivers, No Setup ! Versatile ! Compatible with all Apps !
- Page 2 Professional grade full-metal enclosure OVERVIEW The INOGENI SHARE2 Converter is the most easy and reliable tool for simultaneous capture of two streams of uncompressed video into one single USB stream with audio from your HDMI/DVI/VGA or CVBS sources for your PC for recording, videoconferencing, lecture capture and streaming applications.
-
Page 3: Device Connectors
DEVICE CONNECTORS CONNECTION DIAGRAM INOGENI SHARE2 User Guide Version 1.1 7/22/16... -
Page 4: Specifications
2-channel LPCM 48kHz audio from Line input or embedded in HDMI Audio output 2-channel LPCM 48kHz audio Line level Compatibility NO driver installation necessary. Operating Windows 7 and above (32/64-bit) System OSX 10.10 and above INOGENI SHARE2 User Guide Version 1.1 7/22/16... - Page 5 DVI to VGA and DVI to HDMI adapters included Dimensions 18.5 x 11 x 3 [W x L x H, cm] Weight Power 12V, 500mA (adapter included) UPC Code 040232355523 Origin Canada Harmonized 8517.62.000.900 Code INOGENI SHARE2 User Guide Version 1.1 7/22/16...
-
Page 6: Serial Communication Protocol
Side by Side View where Input 2 is at the left side <BS1> Big and Small View where Input 1 is at the left side <BS2> Big and Small View where Input 2 is at the left side INOGENI SHARE2 User Guide Version 1.1 7/22/16... - Page 7 Return the firmware versions and video resolutions of CAM and CONT inputs. Here is an example. >> <GET> FX3 => 1.8 FPGA => 1.9 EDID => 1 CAM => 1920x1080@60fps CONT => Not locked INOGENI SHARE2 User Guide Version 1.1 7/22/16...
- Page 8 2- Connect any type of video source 3- Run your App or Download INOGENI Software Suite You can use our INOGENI Software Suite in order to preview and record your video sources. 1. You can open the INOGENI Simple Capture application.
- Page 9 4. The application will then record your video sources. The length of the recording will also be available in the application. You can also use our INOGENI Simple Viewer which only offers a single preview of a video and audio sources.
- Page 10 Extensive Knowledge Base to learn from other customers experiences. © Copyright 2016 by INOGENI Inc. All Rights Reserved. INOGENI name and logo are trademarks or registered trademark of INOGENI. Use of this product is subject to the terms and conditions of the license and limited warranty in effect at the time of purchase.
