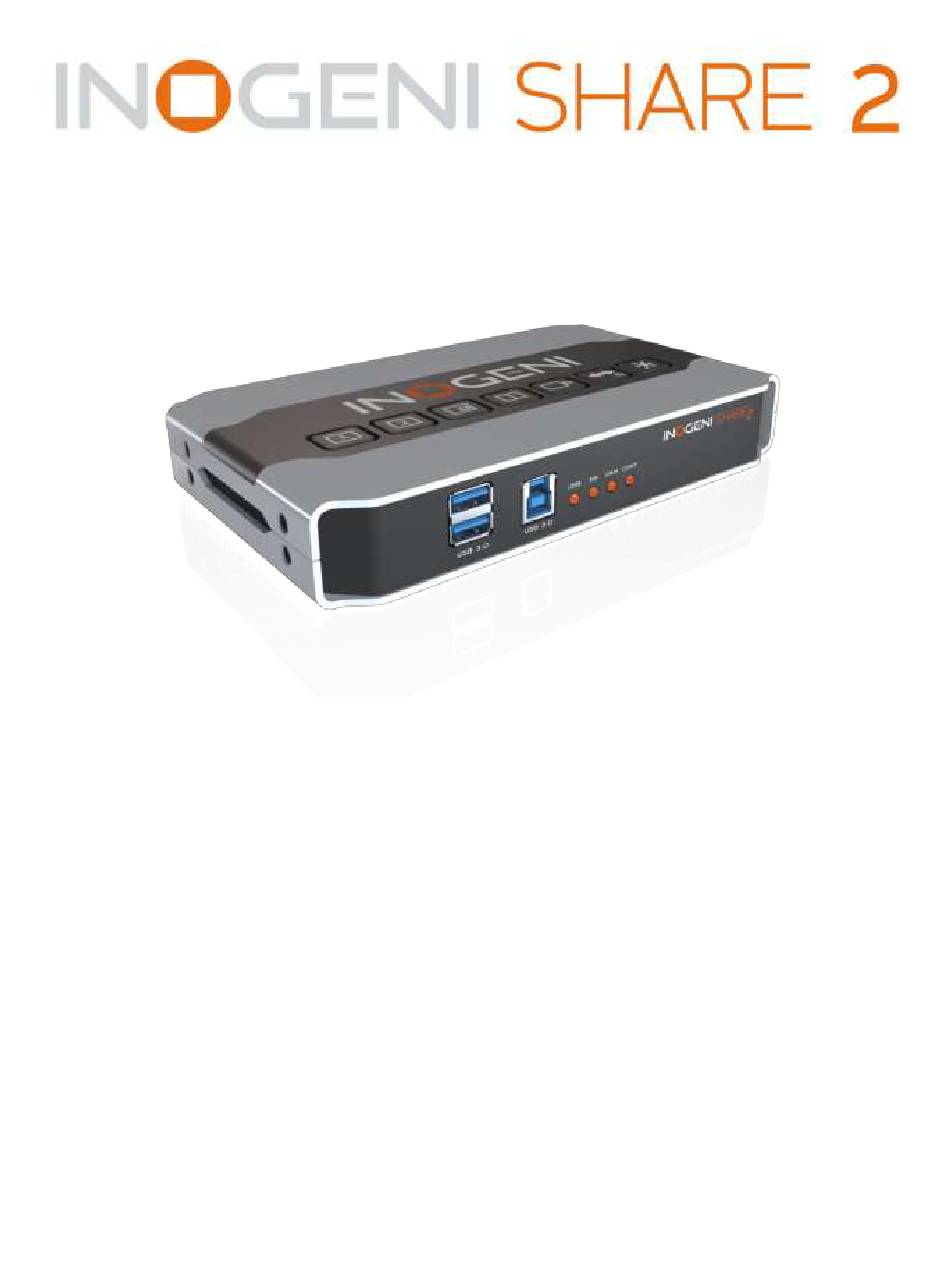

- Page 1 Dual Video Mixer to USB 3.0 Converter User Guide v1.7 Thank you! You have just acquired the finest and easiest to use tool for simultaneous capture of two streams of uncompressed video with audio for your computer. Easy, No Drivers, No Setup ! Versatile ! Compatible with all Apps !
- Page 2 Professional grade full-metal enclosure OVERVIEW The INOGENI SHARE2 Converter is the most easy and reliable tool for simultaneous capture of two streams of uncompressed video into one single USB stream with audio from your HDMI/DVI/VGA/Component or CVBS sources for your PC for recording, videoconferencing, lecture capture and streaming applications.
-
Page 3: Device Connectors
DEVICE CONNECTORS CONNECTION DIAGRAM INOGENI SHARE2 User Guide – V1.7 – October 22, 2019... -
Page 4: Specifications
2 x USB 3.0 ports for expansion purposes. The devices connected will appear to the expansion host. Audio Audio input 2-channel LPCM 48kHz audio from Line input or embedded in HDMI Audio output 2-channel LPCM 48kHz audio Line level INOGENI SHARE2 User Guide – V1.7 – October 22, 2019... - Page 5 DVI to VGA and DVI to HDMI adapters included Dimensions 18.5 x 11 x 3 [W x L x H, cm] Weight Power 12V, 500mA (adapter included) UPC Code 040232355523 Origin Canada Harmonized 8517.62.000.900 Code INOGENI SHARE2 User Guide – V1.7 – October 22, 2019...
-
Page 6: Serial Communication Protocol
Picture in Picture at top left corner where Input 1 is the background <PPTL2> Picture in Picture at top left corner where Input 2 is the background <PPBR1> Picture in Picture at bottom right corner where Input 1 is the background INOGENI SHARE2 User Guide – V1.7 – October 22, 2019... - Page 7 Return the firmware versions and video resolutions of CAM and CONT inputs. Here is an example. >> <GET> FX3 => 1.8 FPGA => 1.9 EDID => 1 CAM => 1920x1080@60fps CONT => Not locked VIEW => PPTL1 BLACK [enabled/disabled] INOGENI SHARE2 User Guide – V1.7 – October 22, 2019...
-
Page 8: Lan Interface
ACK string. You can also use any telnet application in order to communicate with the device using TCP. Make sure to use the right IP address and port 50000. INOGENI SHARE2 User Guide – V1.7 – October 22, 2019... - Page 9 Return the firmware versions and video resolutions of CAM and CONT inputs. Here is an example. FX3 => 1.8 FPGA => 1.9 EDID => 1 CAM => 1920x1080@60fps CONT => Not locked VIEW => PPTL1 BLACK [enabled/disabled] INOGENI SHARE2 User Guide – V1.7 – October 22, 2019...
-
Page 10: Audio Control
This mode gives priority on the analog input as soon. Otherwise, we select audio from the selected input. If video inputs are mixed, we also mix the audio inputs. Mix audio: This mode mixes audio from all HDMI and analog inputs. INOGENI SHARE2 User Guide – V1.7 – October 22, 2019... - Page 11 INOGENI CONTROL APP The INOGENI SHARE2 Control App allows you to control and monitor video sources. The device has its own application in order to control the Mixer configuration using the USB HID or the LAN interfaces. You can also monitor the firmware versions installed on the device and the status of the USB and HDMI inputs.
- Page 12 CRESTON MODULES You can use the Crestron modules in order to control the INOGENI SHARE2 device using the serial or the IP connections. These modules are available on our website under the section Software Update. Refer to the Help file on how to use the modules.
- Page 13 © Copyright 2019 by INOGENI INC. All Rights Reserved. INOGENI name and logo are trademarks or registered trademark of INOGENI. Use of this product is subject to the terms and conditions of the license and limited warranty in effect at the time of purchase.
