3Com OfficeConnect 3C8861 User Manual page 37

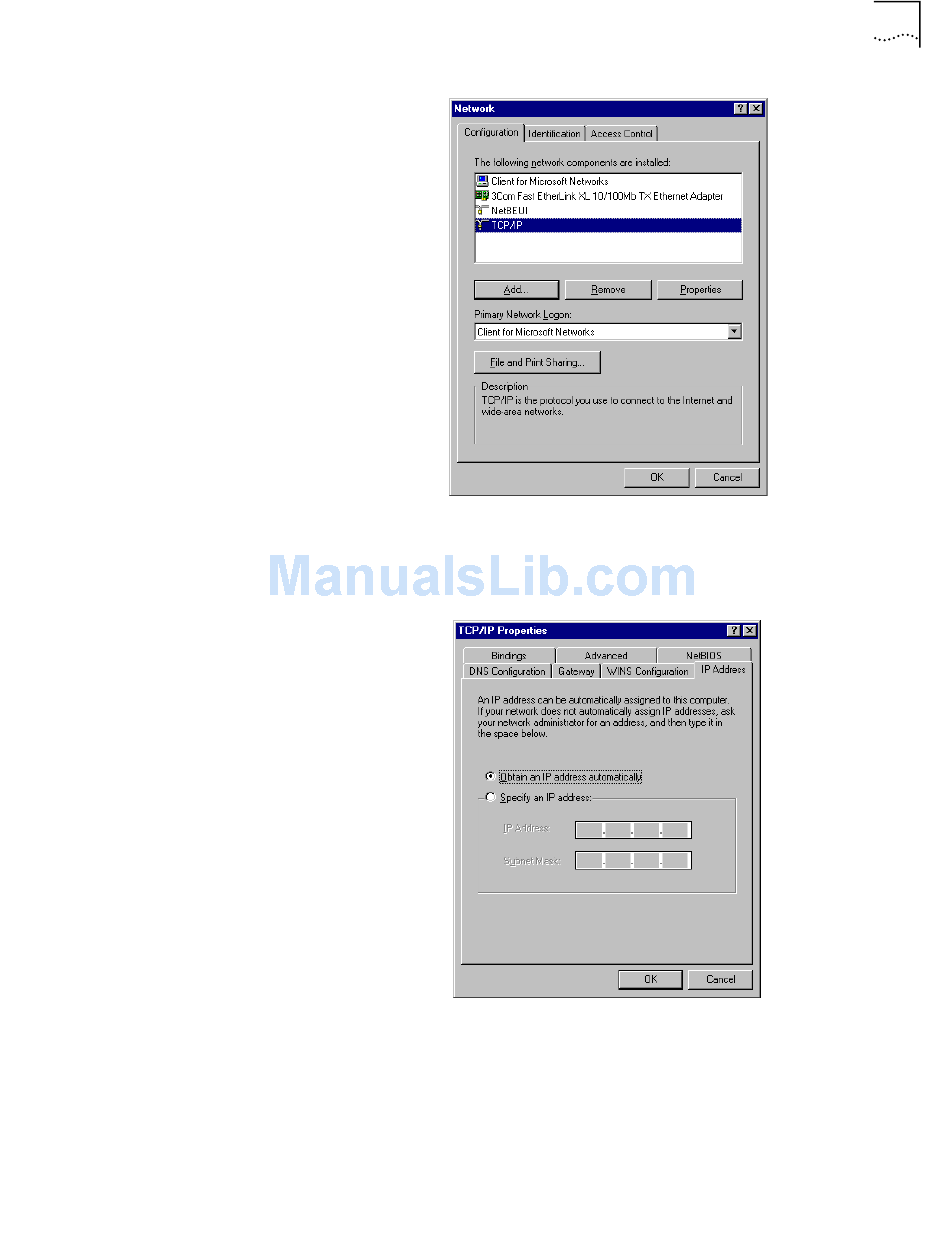

Figure 19 Network Dialog Box
7 Select IP Address.
The IP Address dialog box appears.
Figure 20 IP Address Dialog Box
8 Most users should select Obtain an IP Address automatically as most LANs utilize
dynamic IP addresses. If this LAN uses static IP addressing, enter the IP address and
subnet mask. (You can obtain this information from your system administrator or
ISP.)
9 Select the Advanced tab.
The TCP/IP Properties Advanced screen opens.
TCP/IP Setup Using Windows 95 and 98 37
