Power
Connection
Figure 1

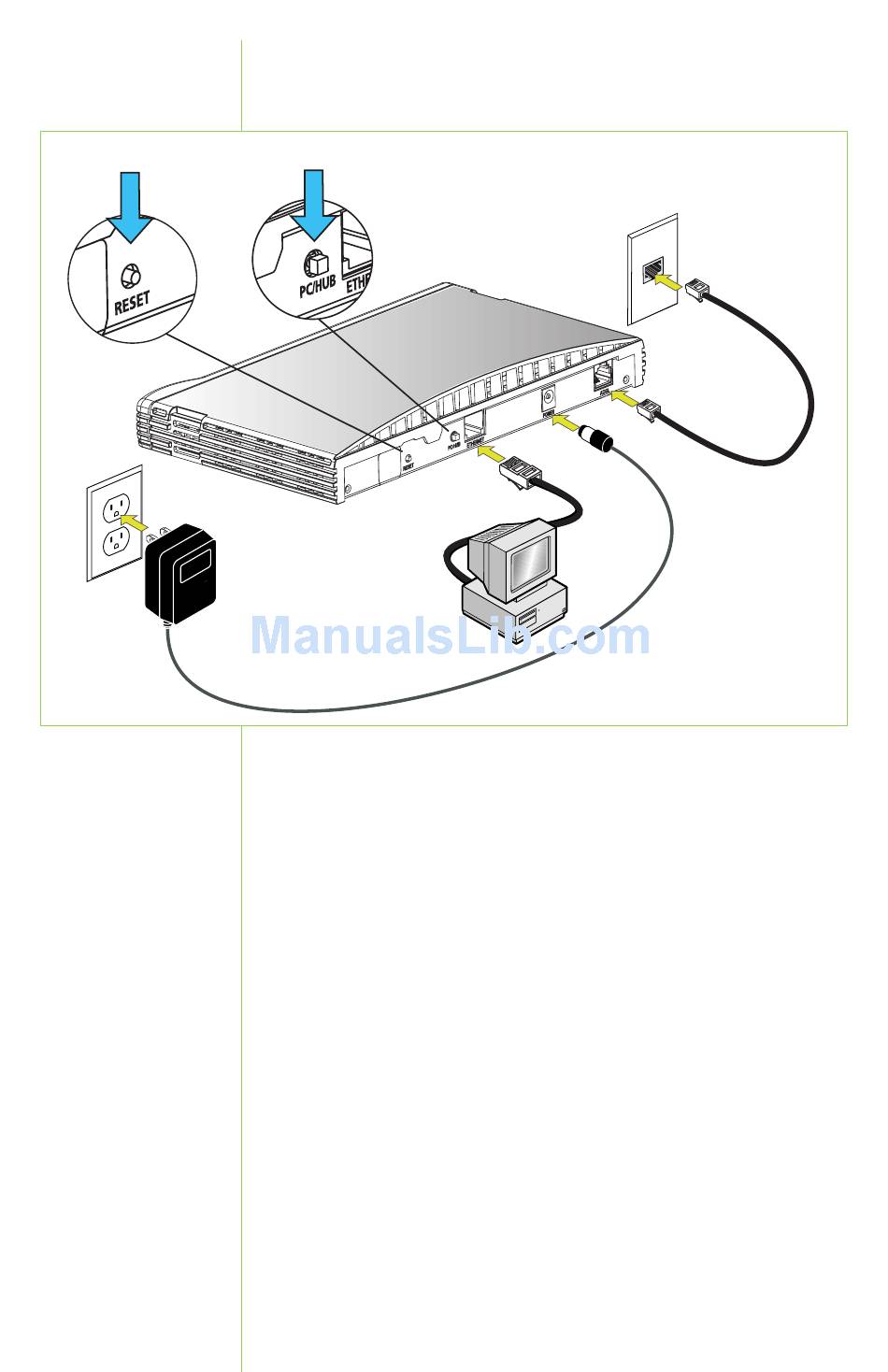

The following illustration (Fig. 1) shows the connector cabling
and the locations of the Reset button and the PC/Hub Switch for
the OfficeConnect Remote 612 ADSL Router:
PC/Hub Switch
3
LAN Connection
As part of the installation procedure on the following pages, you
will perform the following steps:
1. Connect the DSL cable.
Connect the DSL cable to the ADSL wall jack and the other end
to the ADSL port of your OfficeConnect Remote 612 ADSL
Router.
2. Connect the power adapter.
Connect the cable from the power adapter to the Power inlet on
the rear panel of the unit. Connect the other end of the power
cord into a surge-protected electrical outlet.
3. Connect the LAN cable.
Connect one end of the LAN cable to the Ethernet port of your
computer and the other end to the Ethernet port on the rear
panel of the OfficeConnect Remote 612 ADSL Router. If you are
connecting the Ethernet port to a PC, the PC/HUB switch should
be "in", when you connect to a hub it should be "out".
1
DSL Connection
3
