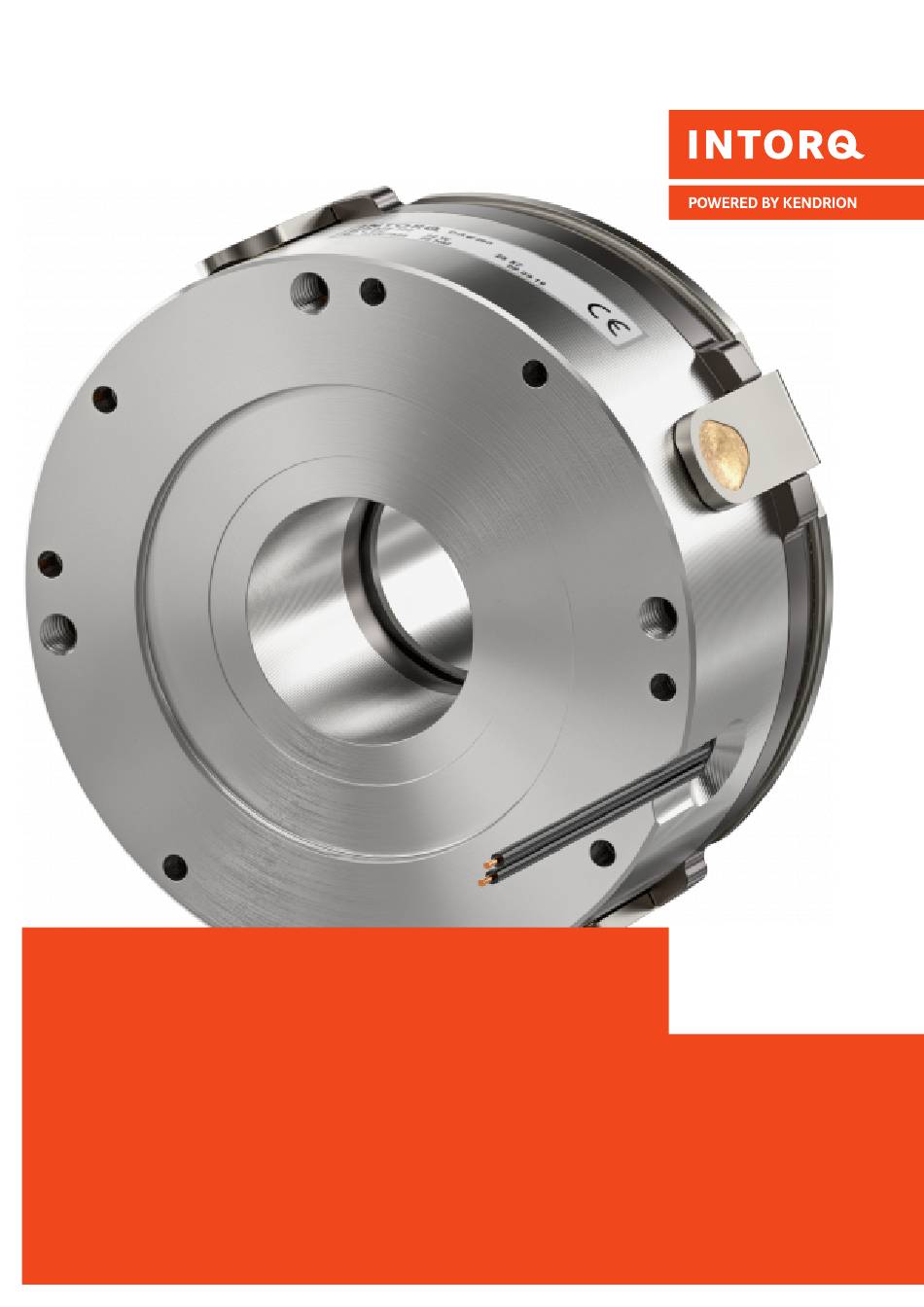

- Page 1 INTORQ BFK518 Spring-applied brake with electromagnetic release Translation of the Original Operating Instructions www.intorq.com...
- Page 2 Document history Material number Version Description 33008872 06/2020 SC First edition ST4 Legal regulations Liability ¾ The information, data and notes in these Operating Instructions are up to date at the time of printing. Claims referring to drive systems which have already been supplied cannot be derived from this infor- mation, illustrations and descriptions.
-
Page 3: Table Of Contents
Contents 1 General information .............................. 5 1.1 Using these Operating Instructions ........................ 5 1.2 Conventions in use............................... 5 1.3 Safety instructions and notices .......................... 6 1.4 Terminology used.............................. 7 1.5 Abbreviations used............................... 7 2 Safety instructions.............................. 9 2.1 General safety instructions........................... 9 2.2 Disposal ................................ - Page 4 6 Electrical installation ............................... 23 6.1 Electrical connection ............................ 23 7 Commissioning and operation .......................... 24 7.1 Function checks before initial commissioning .................... 24 7.1.1 Function check of the brake ........................ 24 7.2 Commissioning.............................. 24 7.3 Operation ................................ 24 8 Maintenance and repair ............................ 25 8.1 Wear of spring-applied brakes ...........................
-
Page 5: General Information
General information General information Using these Operating Instructions ¾ These Operating Instructions will help you to work safely with the spring-applied brake with electro- magnetic release. They contain safety instructions that must be followed. ¾ All persons working on or with electromagnetically released spring-applied brakes must have the Oper- ating Instructions available and observe the information and notes relevant for them. -
Page 6: Safety Instructions And Notices
General information Safety instructions and notices The following icons and signal words are used in this document to indicate dangers and important safety information: Structure of safety notices: CAUTION Icon Indicates the type of danger Signal word Characterizes the type and severity of danger. Notice text Describes the danger. -
Page 7: Terminology Used
General information Terminology used Term In the following text used for Servo brake Electromagnetically released brake Drive systems with spring-applied brakes and other drive compo- Drive system nents Abbreviations used Letter symbol Unit Designation Rated frictional force Spring force Current Holding current, at 20 °C and holding voltage Release current, at 20 °C and release voltage Rated current, at 20 °C and rated voltage... - Page 8 General information Letter symbol Unit Designation Rated air gap Minimum air gap Lmin Maximum air gap Lmax Engagement time, sum of the delay time and braking torque: rise time Disengagement time, time from switching the stator until reaching 0.1 M Slipping time, operation time of the brake (according to t ) until standstill Delay during engagement (time from switching off the supply voltage to the...
-
Page 9: Safety Instructions
Safety instructions Safety instructions General safety instructions ¾ Never operate INTORQ components when you notice they are damaged. ¾ Never make any technical changes to INTORQ components. ¾ Never operate INTORQ components when they are incompletely mounted or incompletely connected. ¾... -
Page 10: Product Description
Any other usage is consider improper and prohibited. Layout This chapter describes the variants, layout and functionality of the BFK518 spring-applied brake. 3.2.1 Spring-applied brake BFK518 Fig. 1: Structure and layout of an INTORQ BFK518 spring-applied brake Rotor Counter friction surface (flange) Armature plate Coil Stator... -
Page 11: Function
Product description Function This brake is an electrically releasable spring-applied brake with a rotating brake disk (rotor) that is equipped on both sides with friction linings. In its de-energized state, the rotor is clamped with spring force applied by pressure springs between the armature plate and a counter friction surface. This corresponds to a fail-safe functionality. -
Page 12: Technical Specifications
Technical specifications Technical specifications Possible applications of the INTORQ spring-applied brake ¾ Degree of protection: – The brake is designed for operation under the operating conditions that apply to IP00 protection. Because of the numerous possibilities of using the brake, it is still necessary to check the function- ality of all mechanical components under the corresponding operating conditions. -
Page 13: Switching Times
Technical specifications Size Electrical power Coil voltage Coil resistance Rated current ±8% [Ω] 21.5 27.5 26.1 0.92 Tab. 3: Rated data for coil power Switching times The operating times listed here are guide values which apply to DC switching with rated air gap s , warm coil and standard characteristic torque. - Page 14 Technical specifications Size Brake torque Operating times DC-side engagement Disengaging at s Lmax [Nm] [1/h] [ms] [ms] [ms] [ms] 2500 120 / 420 3000 165 / 480 Tab. 4: Switching energy - operating frequency - operating times The operating times specified refer to the usage of coils with a connection voltage of 24 V DC at s and 0.7 I an induction voltage peak of 300 V.
-
Page 15: Electromagnetic Compatibility
Technical specifications Electromagnetic compatibility Notice The user must ensure compliance with EMC Directive 2014/30/EC using appropriate controls and switching devices. Emissions Heat Since the brake converts kinetic energy and electrical energy into heat, the surface temperature varies considerably, depending on the operating conditions and possible heat dissipation. A surface temperature of 130 °C may be reached under unfavorable conditions. -
Page 16: Labels On Product
Technical specifications Labels on product There is a packaging label on the package. The name plate is glued to the outer surface of the brake. Fig. 3: Packaging label INTORQ Manufacturer 33007467 ID number BFK518-80 Type (refer to Product key ) Bar code SPRING-APPLIED BRAKE Designation of the product family... - Page 17 Technical specifications Fig. 4: Name plate (example) INTORQ Manufacturer BFK518-80 Type (refer to Product key ) 24 V DC Rated voltage 21 W Rated power No. 33007467 ID number 14 NM torque 11.02.20 Date of manufacture Data matrix code CE mark INTORQ | BA 14.0222 | 06/2020...
-
Page 18: Mechanical Installation
Mechanical installation Mechanical installation This chapter provides step-by-step instructions for the installation. Important notes NOTICE The toothed hub and screws must not be lubricated with grease or oil. Design of end shield and shaft ¾ Comply with the specified minimum requirements regarding the end shield and the shaft to ensure a correct function of the brake. -
Page 19: Installing The Hub Onto The Shaft
Mechanical installation Installing the hub onto the shaft NOTICE When the brake is being used in a servo motor, we recommend attaching the hub with a shrink fitting (heating it up first). Alternatively, a key may be used to avoid shrinkage. Notice Recommended ISO fitting for shaft: Max. -
Page 20: Brake Mounting
Mechanical installation Brake mounting Notice Depending on the particular design, the sequence of assembly steps may vary. Fig. 6: Mounting the brake Brake BFK518 Motor shaft End shield of hub Motor housing (example) 1. Push the brake along with the internal rotor toothing onto the completely cooled hub. NOTICE When routing the connecting wire leads, make sure that there is no contact between these leads and moving parts such as the rotor or armature plate. - Page 21 Mechanical installation Fig. 7: Mounting the bearing Socket-head cap screw Ball bearing Motor shaft Brake BFK518 Motor housing (example) 3. If necessary, push the bearing onto the shaft and fix the position using a snap ring. Fig. 8: Inserting the end shield Socket-head cap screw End shield Motor shaft...
- Page 22 Mechanical installation NOTICE Screws of strength class 8.8 are required to fasten the brake to the motor end shield. Please note: Spring washers or other unsuitable screw-lock mechanisms are not permit- ted! 4. Fasten the brake to the end shield using the fastening screws (use screws of strength class 8.8 through the end shield into the threaded holes provided in the magnet housing).
-
Page 23: Electrical Installation
Electrical installation Electrical installation Important notes DANGER There is a risk of injury by electrical shock! ¾ The electrical connections may only be made by trained electricians! ¾ Make sure that you switch off the electricity before working on the connections! There is a risk of unintended start-ups or electric shock. -
Page 24: Commissioning And Operation
Commissioning and operation Commissioning and operation Function checks before initial commissioning 7.1.1 Function check of the brake If a fault or malfunction arises during the function check, you can find important information for trou- bleshooting in the chapter Troubleshooting and fault elimination, Page 26. If the fault cannot be fixed or eliminated, please contact the customer service department. -
Page 25: Maintenance And Repair
Maintenance and repair Maintenance and repair Wear of spring-applied brakes WARNING Braking torque reduction The system must not be allowed to continue operations after the maximum air gap s Lmax has been exceeded. Exceeding the maximum air gap can cause a major reduction in the braking torque! The table below shows the different causes of wear and their impact on the components of the spring-ap- plied brake. -
Page 26: Troubleshooting And Fault Elimination
Troubleshooting and fault elimination Troubleshooting and fault elimination If any malfunctions should occur during operations, please check for possible causes based on the follow- ing table. If the fault cannot be fixed or eliminated by one of the listed steps, please contact customer ser- vice. - Page 27 INTORQ GmbH & Co KG Germany PO Box 1103 D-31849 Aerzen, Germany Wülmser Weg 5 D-31855 Aerzen, Germany +49 5154 70534-0 (Headquarters) +49 5154 70534-222 (Sales) Ê +49 5154 70534-200 š info@intorq.com 应拓柯制动器（上海）有限责任公司 INTORQ (Shanghai) Co., Ltd. 上海市浦东新区泥城镇新元南路600 号6 号楼一楼B 座 No.
