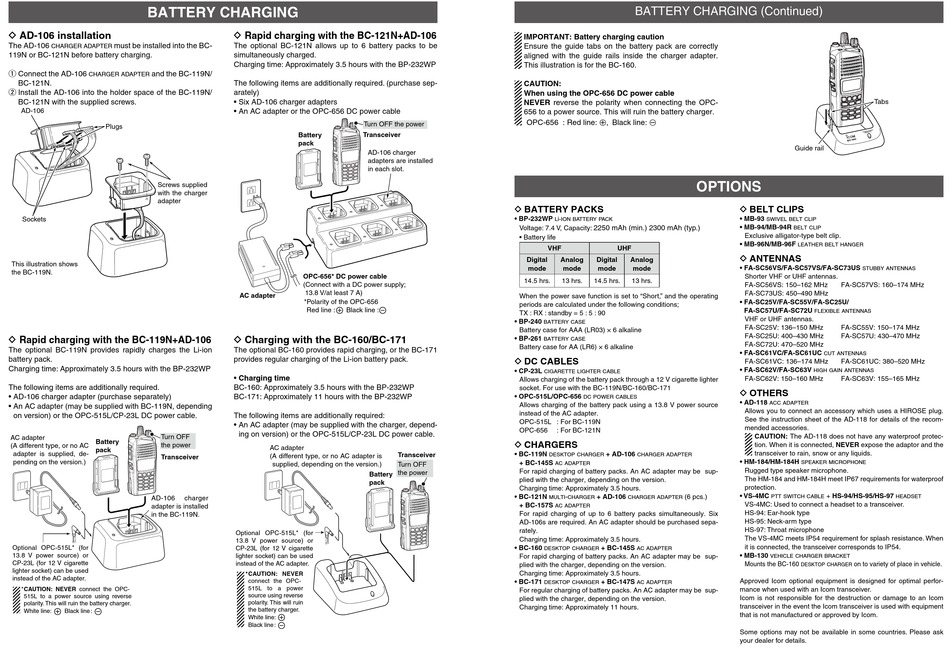

BATTERY CHARGING
AD-106 installation
D
The AD-106
must be installed into the BC-
CHARGER ADAPTER
119N or BC-121N before battery charging.
q Connect the AD-106
and the BC-119N/
CHARGER ADAPTER
BC-121N.
Install the AD-106 into the holder space of the BC-119N/
w
BC-121N with the supplied screws.
AD-106
Plugs
Screws supplied
with the charger
adapter
Sockets
This illustration shows
the BC-119N.
Rapid charging with the BC-119N+AD-106
D
The optional BC-119N provides rapidly charges the Li-ion
battery pack.
Charging time: Approximately 3.5 hours with the BP-232WP
The following items are additionally required.
• AD-106 charger adapter (purchase separately)
• An AC adapter (may be supplied with BC-119N, depending
on version) or the OPC-515L/CP-23L DC power cable.
Turn OFF
AC adapter
Battery
the power
(A different type, or no AC
pack
adapter is supplied, de-
Transceiver
pending on the version.)
AD-106
charger
adapter is installed
in the BC-119N.
Optional OPC-515L* (for
13.8 V power source) or
CP-23L (for 12 V cigarette
lighter socket) can be used
instead of the AC adapter.
*
CAUTION: NEVER connect the OPC-
515L to a power source using reverse
polarity. This will ruin the battery charger.
White line:
Black line :
Rapid charging with the BC-121N+AD-106
D
The optional BC-121N allows up to 6 battery packs to be
simultaneously charged.
Charging time: Approximately 3.5 hours with the BP-232WP
The following items are additionally required. (purchase sep-
arately)
• Six AD-106 charger adapters
• An AC adapter or the OPC-656 DC power cable
Turn OFF the power
Transceiver
Battery
pack
AD-106 charger
adapters are installed
in each slot.
OPC-656* DC power cable
(Connect with a DC power supply;
13.8 V/at least 7 A)
AC adapter
*Polarity of the OPC-656
Red line :
Black line :
Charging with the BC-160/BC-171
D
The optional BC-160 provides rapid charging, or the BC-171
provides regular charging of the Li-ion battery pack.
• Charging time
BC-160: Approximately 3.5 hours with the BP-232WP
BC-171: Approximately 11 hours with the BP-232WP
The following items are additionally required:
• An AC adapter (may be supplied with the charger, depend-
ing on version) or the OPC-515L/CP-23L DC power cable.
AC adapter
Transceiver
(A different type, or no AC adapter is
supplied, depending on the version.)
Turn OFF
the power
Battery
pack
Optional OPC-515L* (for
13.8 V power source) or
CP-23L (for 12 V cigarette
lighter socket) can be used
instead of the AC adapter.
*
CAUTION: NEVER
connect the OPC-
515L to a power
source using reverse
polarity. This will ruin
the battery charger.
White line:
Black line :
BATTERY CHARGING (Continued)
IMPORTANT: Battery charging caution
Ensure the guide tabs on the battery pack are correctly
aligned with the guide rails inside the charger adapter.
This illustration is for the BC-160.
CAUTION:
When using the OPC-656 DC power cable
NEVER reverse the polarity when connecting the OPC-
656 to a power source. This will ruin the battery charger.
OPC-656 : Red line: +, Black line: _
D
BATTERY PACKS
• BP-232WP
i-
L
ION BATTERY PACK
Voltage: 7.4 V, Capacity:
2250 mAh (min.) 2300 mAh (typ.)
• Battery life
VHF
UHF
Digital
Analog
Digital
Analog
mode
mode
mode
mode
14.5 hrs.
13 hrs.
14.5 hrs.
13 hrs.
When the power save function is set to "Short," and the operating
periods are calculated under the following conditions;
TX : RX : standby = 5 : 5 : 90
• BP-240
BATTERY CASE
Battery case for AAA (LR03) × 6 alkaline
• BP-261
BATTERY CASE
Battery case for AA (LR6) × 6 alkaline
D
DC CABLES
• CP-23L
CIGARETTE LIGHTER CABLE
Allows charging of the battery pack through a 12 V cigarette lighter
socket. For use with the BC-119N/BC-160/BC-171
• OPC-515L/OPC-656
DC POWER CABLES
Allows charging of the battery pack using a 13.8 V power source
instead of the AC adapter.
OPC-515L : For BC-119N
OPC-656
: For BC-121N
D
CHARGERS
• BC-119N
+ AD-106
DESKTOP CHARGER
CHARGER ADAPTER
+ BC-145S
AC ADAPTER
For rapid charging of battery packs. An AC adapter may be sup-
plied with the charger, depending on the version.
Charging time: Approximately 3.5 hours.
• BC-121N
+ AD-106
(6 pcs.)
-
MULTI
CHARGER
CHARGER ADAPTER
+ BC-157S
AC ADAPTER
For rapid charging of up to 6 battery packs simultaneously. Six
AD-106s are required. An AC adapter should be purchased sepa-
rately.
Charging time: Approximately 3.5 hours.
• BC-160
+ BC-145S
DESKTOP CHARGER
AC ADAPTER
For rapid charging of battery packs. An AC adapter may be sup-
plied with the charger, depending on the version.
Charging time: Approximately 3.5 hours.
• BC-171
+ BC-147S
DESKTOP CHARGER
AC ADAPTER
For regular charging of battery packs. An AC adapter may be sup-
plied with the charger, depending on the version.
Charging time: Approximately 11 hours.
Tabs
Guide rail
OPTIONS
D
BELT CLIPS
• MB-93
SWIVEL BELT CLIP
• MB-94/MB-94R
BELT CLIP
Exclusive alligator-type belt clip.
• MB-96N/MB-96F
LEATHER BELT HANGER
D
ANTENNAS
• FA-SC56VS/FA-SC57VS/FA-SC73US
STUBBY ANTENNAS
Shorter VHF or UHF antennas.
FA-SC56VS: 150–162 MHz
FA-SC57VS: 160–174 MHz
FA-SC73US: 450–490 MHz
• FA-SC25V/FA-SC55V/FA-SC25U/
FA-SC57U/FA-SC72U
FLEXIBLE ANTENNAS
VHF or UHF antennas.
FA-SC25V: 136–150 MHz
FA-SC55V: 150–174 MHz
FA-SC25U: 400–430 MHz
FA-SC57U: 430–470 MHz
FA-SC72U: 470–520 MHz
• FA-SC61VC/FA-SC61UC
CUT ANTENNAS
FA-SC61VC: 136–174 MHz
FA-SC61UC: 380–520 MHz
• FA-SC62V/FA-SC63V
HIGH GAIN ANTENNAS
FA-SC62V: 150–160 MHz
FA-SC63V: 155–165 MHz
D
OTHERS
• AD-118
ACC ADAPTER
Allows you to connect an accessory which uses a HIROSE plug.
See the instruction sheet of the AD-118 for details of the recom-
mended accessories.
CAUTION: The AD-118 does not have any waterproof protec-
tion. When it is connected, NEVER expose the adaptor and the
transceiver to rain, snow or any liquids.
• HM-184/HM-184H
SPEAKER MICROPHONE
Rugged type speaker microphone.
The HM-184 and HM-184H meet IP67 requirements for waterproof
protection.
• VS-4MC
+ HS-94/HS-95/HS-97
PTT SWITCH CABLE
VS-4MC: Used to connect a headset to a transceiver.
HS-94: Ear-hook type
HS-95: Neck-arm type
HS-97: Throat microphone
The VS-4MC meets IP54 requirement for splash resistance. When
it is connected, the transceiver corresponds to IP54.
• MB-130
VEHICLE CHARGER BRACKET
Mounts the BC-160
on to variety of place in vehicle.
DESKTOP CHARGER
Approved Icom optional equipment is designed for optimal perfor-
mance when used with an Icom transceiver.
Icom is not responsible for the destruction or damage to an Icom
transceiver in the event the Icom transceiver is used with equipment
that is not manufactured or approved by Icom.
Some options may not be available in some countries. Please ask
your dealer for details.
