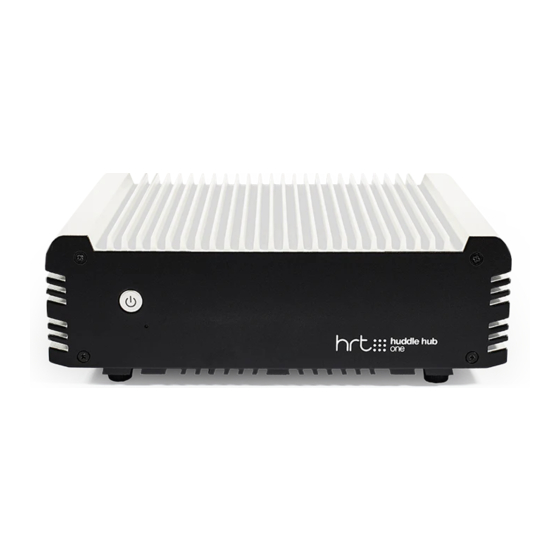

HRT Huddle Hub One Configuration Manual
Hide thumbs
Also See for Huddle Hub One:
- User manual (21 pages) ,
- Installation manual (15 pages) ,
- Quick start manual (2 pages)
Related Manuals for HRT Huddle Hub One
Summary of Contents for HRT Huddle Hub One
- Page 1 Huddle Hub One / Huddle Hub One+ Configuration Guide Product version 2.3 - Manual version 2...
- Page 2 Specifications are subject to change without notice. HRT and Huddle Hub trademarks and logos are trademarks of HRT Srl. Any non-HRT products and corporate names may or may not be registered trademarks or copyrights of their respective companies and are used for reference purposes only without intent to infringe.
-
Page 3: Table Of Contents
5.3 Rooms section ........................21 5.4 Network section ........................22 5.4.1 Wired connection ............................... 22 5.4.2 Wireless connection (HHO+ only) ........................23 Wi-Fi Considerations (HHO+ only) ..................... 28 Appendices ..........................29 Huddle Hub One / Huddle Hub One+ Configuration Guide Page 1... - Page 4 .1 Wi-Fi Regions, Channels and Fre uencies (HHO+ only) ............ 2 .2 Restore and Reset procedures ..................2 .3 Default values ........................30 Index ............................... 33 Huddle Hub One / Huddle Hub One+ Configuration Guide Page 2...
-
Page 5: Introduction
Quick Start Guide : a very short guide that contains the essential steps to start using HHO and · HHApp. Available in the box of the product and in the support section of HRT website (www.hrt.website). Specification, Safety and Conformity : describes all the technical specifications, the safety ·... - Page 6 "2.3" (e.g. 2.3.1, 2.3.5 etc) and it's version 1 of the manual itself. HRT supports only the latest release of its software, which is always available free of charge. Users and IT Managers are invited to keep their HHApp and HHO units up to date, and to download the most recent version the manuals from the support section of HRT website.
-
Page 7: Understanding Huddle Hub
.The existence of the hub room is optional, because you can decide to install HHO in your company data center and not to connect to any device except the Huddle Hub One / Huddle Hub One+ Configuration Guide Page 5... -
Page 8: Tv, Wireless Webcam And Multicam
H MI ports. Mixed mode: some participants look at the presentation on their individual device, and the others on · the TV. This is always possible in the hub room Huddle Hub One / Huddle Hub One+ Configuration Guide Page... -
Page 9: Reaching A Room
: Although HHO and devices are properly configured to access the same LAN, in complex network configurations you may experience problem in reaching the active rooms. If this happens, contact your network administrator or consult the Configuration Guide. Huddle Hub One / Huddle Hub One+ Configuration Guide Page... -
Page 10: Finding The Ip Address Of A Hho Unit
If the unit is connected to a TV or a monitor, and no presentation is in progress, you can read its I · Huddle Hub One / Huddle Hub One+ Configuration Guide Page... -
Page 11: Performances
HHO configuration. erformances are strictly dependent on the performances of the computer that is running the video-conference software and on those of the devices whose camera stream is being captured. Huddle Hub One / Huddle Hub One+ Configuration Guide Page... -
Page 12: Connecting To The Web Console
HHO+. To ensure maximum security, during your initial configuration you should configure your HHO+ unit without connecting it to your corporate network (see Huddle Hub One Network Security Guide). 1. Move to the room where HHO+ has been installed and make sure the unit is switched on. - Page 13 Web onsole of your HHO+ unit. Both HTT and HTT S connections are available; for security reasons HTT S is the suggested mode. Huddle Hub One / Huddle Hub One+ Configuration Guide Page 11...
-
Page 14: Using The Web Console
Enter. To enter the Web onsole, click the gear icon at the top. ou need to type the administration password in the login dialog: Huddle Hub One / Huddle Hub One+ Configuration Guide Page 12... - Page 15 : for security reasons, changing the administration password should be your very first configuration task. Hub selection bar Sidebar Top bar Body The Web onsole has four areas: Huddle Hub One / Huddle Hub One+ Configuration Guide Page 13...
- Page 16 By clicking the small arrow at the bottom of the list you can see the I addresses of the units next to their names. The question mark at the bottom is a link to HRT's support page (which opens in a new tab of your browser). Sidebar...
- Page 17 Cancel - This button discards the changes. Default - It loads the factory defaults of the current configuration section. Body can contain other section-specific buttons, which will be explained in the following chapters. Huddle Hub One / Huddle Hub One+ Configuration Guide Page 15...
-
Page 18: Configuring Huddle Hub One
If this checkbox is active, at every power-on or reboot HHO connects to the HRT software repository to search for firmware updates, and automatically installs the latest release. The automatic update requires a network connection with access to Internet. -
Page 19: Welcome Screen
Firmware files are available at HRT website. Check for updates - ressing this button, HHO connects to the HRT software repository to check if a new firmware update is available. In case the system finds a new release, a dialog asks you to confirm (Update) or abort ( ancel) the operation. - Page 20 Transparent band Tick this checkbox to make the band slightly transparent. Hide HRT logo Tick this checkbox to remove the HRT logo from the band. Weather widget Tick this checkbox to include weather situation and forecasts in the band. Location Enter the location you want the weather reported for.
-
Page 21: Webcam
: no webcam is plugged in and multicam is disabled. If mode Webcam has been chosen, and if you have multiple webcams connected to the HHO unit, select the one you want to use. Huddle Hub One / Huddle Hub One+ Configuration Guide Page 1... -
Page 22: Discovery
If not checked, the secondary hubs will receive only the rooms list of the primary. Huddle Hub One / Huddle Hub One+ Configuration Guide Page 20... -
Page 23: Rooms Section
You can confirm you want to proceed. resen arame ty p D = 7 Select the resolution (Full H p, H p) and frame rate (3 or 1 frames per second). Huddle Hub One / Huddle Hub One+ Configuration Guide Page 21... -
Page 24: Network Section
Gateway The gateway is the address of the computer who manages all the traffic external to the local subnet. In static mode, the NS server address must be configured. Huddle Hub One / Huddle Hub One+ Configuration Guide Page 22... -
Page 25: Wireless Connection (Hho+ Only)
· clients reach the company AN resources connected, including Internet, through HHO+ Ethernet port by natting the clients addresses to the Ethernet interface. From the company AN to HHO+ Huddle Hub One / Huddle Hub One+ Configuration Guide Page 23... - Page 26 Every HHO+ unit is configured at factory level for a specific Wi-Fi region, because of the different laws that regulate the radio emission in every country. Every Wi-Fi region has a list of admitted countries Huddle Hub One / Huddle Hub One+ Configuration Guide Page 24...
- Page 27 (automatic) when the primary channel is at the end of the range, and you can manually Below Above select when the primary channel is in the middle of the range. Huddle Hub One / Huddle Hub One+ Configuration Guide Page 25...
- Page 28 1. press the Search AP button to scan for the available wireless networks; 2. click on the list of found Wi-Fi networks, and select the SSI you want to connect to; Huddle Hub One / Huddle Hub One+ Configuration Guide Page 2...
- Page 29 HHO+ can acquire the whole network configuration from the server of IP address the connected network. Otherwise, it’s possible to specify the static and the other network network mask gateway parameters, like the , the and the Huddle Hub One / Huddle Hub One+ Configuration Guide Page 2...
-
Page 30: Wi-Fi Considerations (Hho+ Only)
The Web Console will allow only channels legally permitted by the country regulations of the region the HHO+ unit has been configured for (see also Wi-Fi Regions, Channels and Fre uencies Huddle Hub One / Huddle Hub One+ Configuration Guide Page 2... -
Page 31: Restore And Reset Procedures
This procedure resets the configuration to the default parameters, discarding all current settings. The internal software is not reinstalled and the firmware version does not change. How to reset: Huddle Hub One / Huddle Hub One+ Configuration Guide Page 2... -
Page 32: Default Values
Background: Image Image: efault (Huddle Hub) TV mode: Auto Webcam mode: Webcam Rooms Room names: Room 1, Room 2, Room 3, Room asscode protection: Web viewer on HTT S: No Huddle Hub One / Huddle Hub One+ Configuration Guide Page 30... - Page 33 IN: IN label AE: AE Frequency: 5GHz IEEE 2.11ac: hannel: Auto hannel width: Auto server: range start: 2 range end: 25 Authentication: W broadcasting: lient isolation: Huddle Hub One / Huddle Hub One+ Configuration Guide Page 31...
- Page 34 Huddle Hub One / Huddle Hub One+ Configuration Guide Page 32...
-
Page 35: Index
802.11ac 23 mode 22 Image 17 range 23 Installation Guide 3 er 23 address 7, 8, 23 Disco ery ser ice 8, 20 Addressing 26 automatic manual search S 22 Huddle Hub One / Huddle Hub One+ Configuration Guide Page 33... - Page 36 17 resentation uality 21 Spea er 19 resenter 5 Specification, Safety and Conformity 3 rimary hub 20 SSID 23, 26 IP address 20 SSID broadcasting 23 Static mode 22 Huddle Hub One / Huddle Hub One+ Configuration Guide Page 34...
- Page 37 Webcam 6, 9, 19 virtual driver wireless connection Welcome screen 6, 17 White o erlay color 17 Wi-Fi 23, 29 Wired connection 22 Wireless configuration access point mode 23 Huddle Hub One / Huddle Hub One+ Configuration Guide Page 35...
